GREE Multi Variable Air Conditioners Indoor Unit
186
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND07PLS/A-T(U)
CM810N0080
GMV-ND09PLS/A-T(U)
CM810N0090
/
/
GMV-ND12PLS/A-T(U)
CM810N0100
Part code
Quantity
Part code
Quantity
18
Electric Box Cover
01424100035
1
01424100035
1
19
Left Side Plate Assy
01315200087
1
01315200087
1
20
Choke Plug of Drain Pipe
76815214
2
76815214
2
21
Water Pump
43130324
1
43130324
1
22
Water Level Switch
45020216
1
45020216
1
23
Cover of air outlet
01265298
1
01265298
1
24
Air Outlet Frame Assy
01374636
1
01374636
1
25
Filter Sub-Assy
/
/
/
/
26
Strainer
0741410000601
1
0741410000601
1
27
Strainer
07414100015
1
07414100015
1
28
Electronic Expansion Valve
07334463
1
07334463
1
29
Electric Expand Valve Fitting
4304413215
1
4304413215
1
30
Display Board
30296000040
1
30296000040
1
31
Drain Hose Sub-Assy
05232050
1
05232050
1
32
Sensor Sub-assy
39004168G
1
39004168G
1
Above data is subject to change without notice, please refer the SP in global service website.

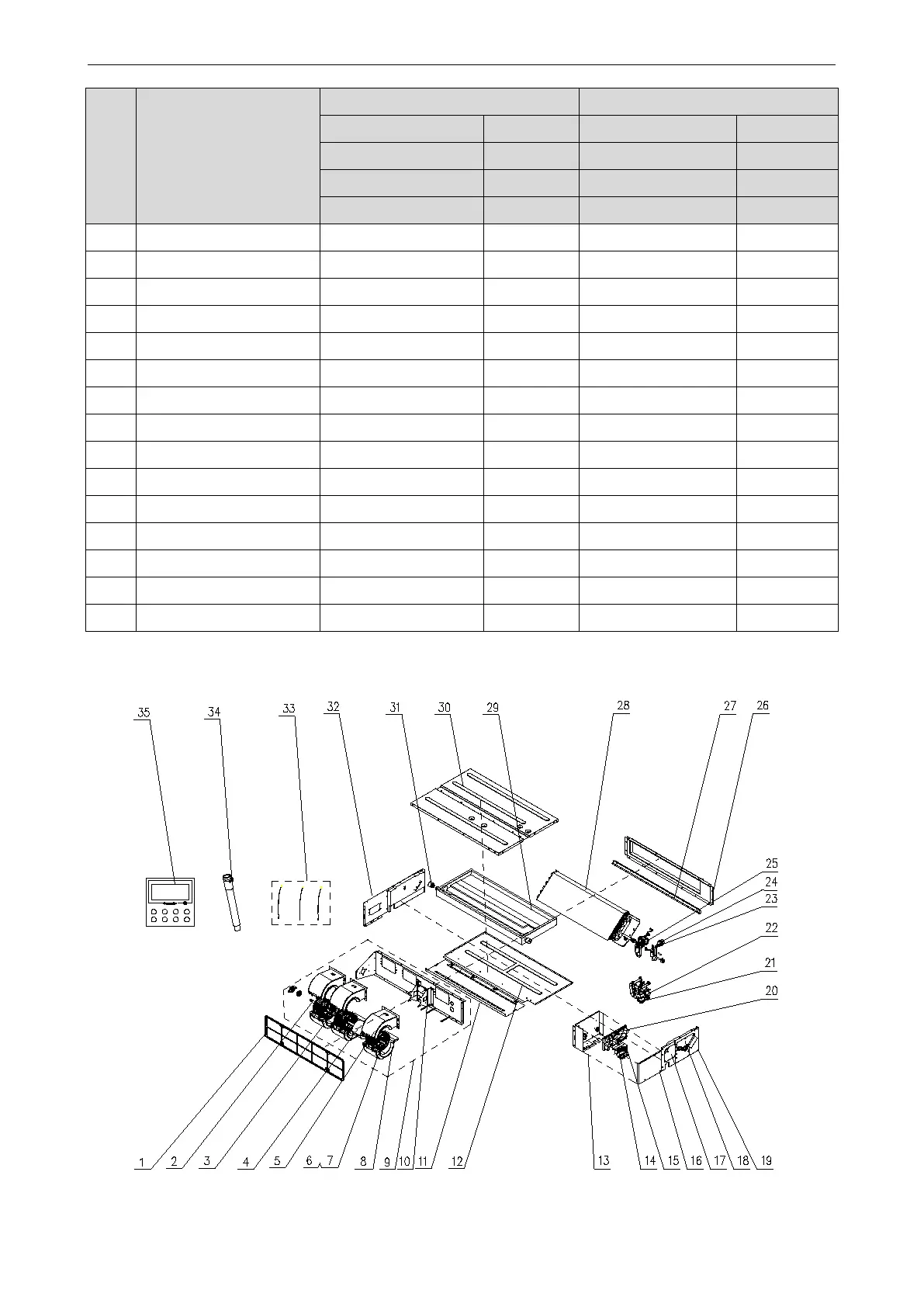

Exploded View of GMV-ND14PLS/A-T(U):
