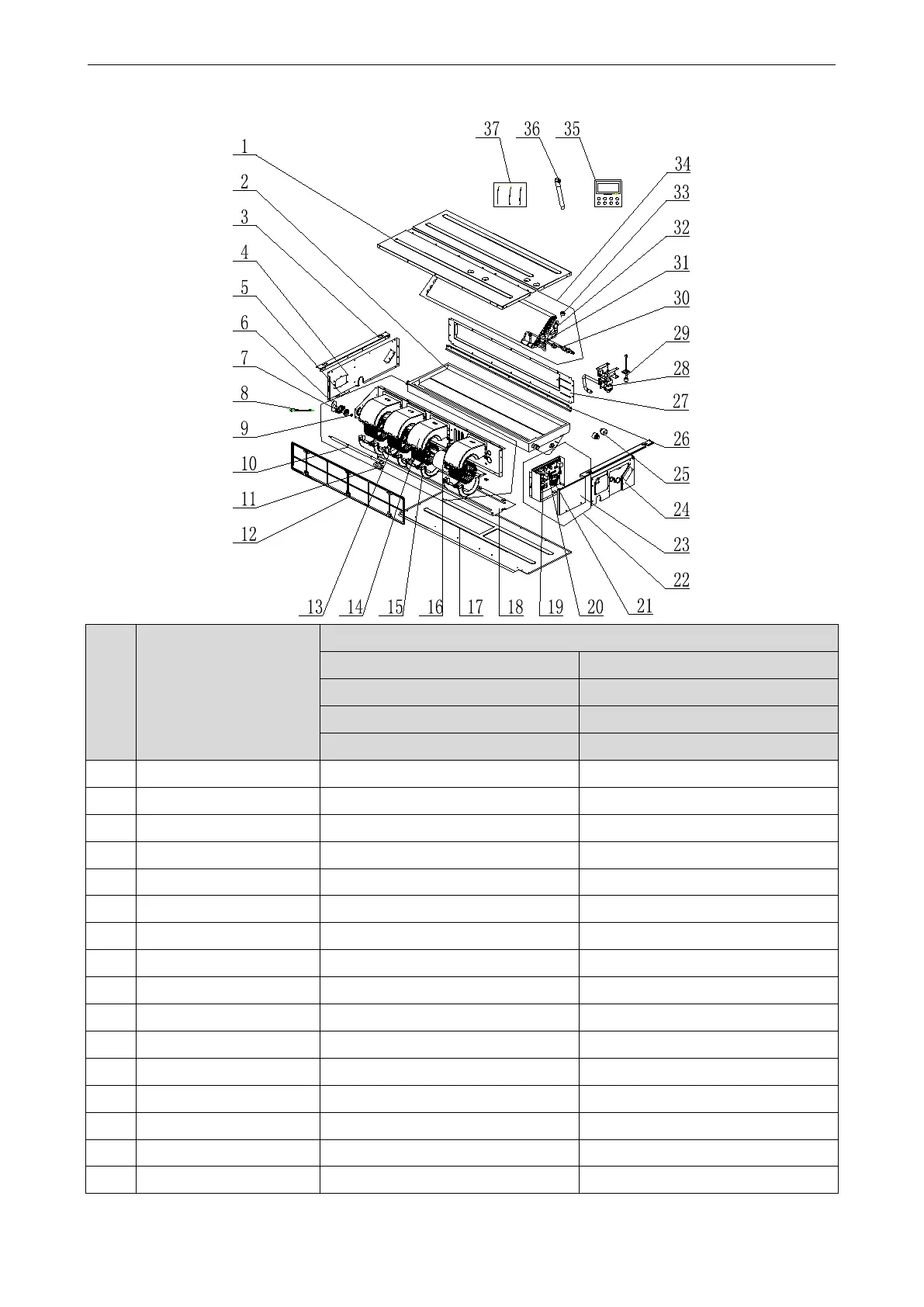

Exploded View of GMV-ND18PLS/A-T(U) / GMV-ND22PLS/A-T(U):
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND18PLS/A-T(U)
CM810N0070
GMV-ND22PLS/A-T(U)
CM810N0110
Part code
Quantity
1
Lower Cover Plate Sub-Assy
01265339
1
2
Water Tray Assy
01285334
1
3
Supporter
01895225
2
4
Right Side Plate Assy
01305263
1
5
Centrifugal fan assy
15404100024
1
6
Support Of Motor Bearing
01792408
1
7
O-Gasket of Bearing
76512404
1
8
Corrugated Pipe
05015408
1
9
Fan Bearing
76512210
1
10
Rotary Axis Sub-Assy
73018000029
1
11
Joint Slack
73018731
1
12
Filter Sub-Assy
11725208
1
13
Centrifugal Fan
10425200
4
14
Front Volute Casing
26905205
4
15
Rear Volute Casing
26905206
4
16
Fan Motor
15704100001
1
