GREE Multi Variable Air Conditioners Indoor Unit
206

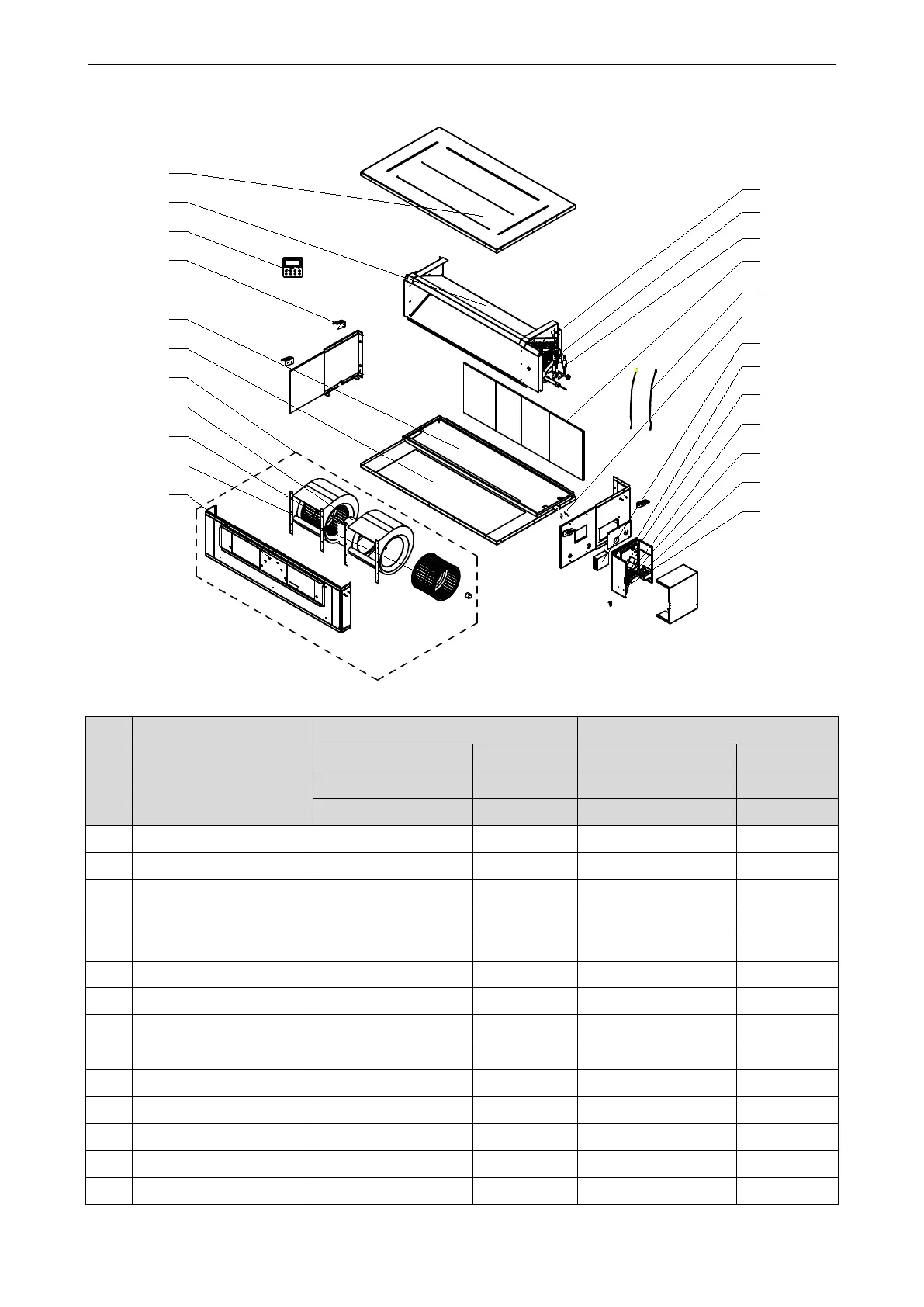

Exploded View of GMV-ND72PH/A-T(U) / GMV-ND96PH/A-T(U):
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
11
18
22
21
20
19
23
24
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND72PH/A-T(U)
CM810N0280
GMV-ND96PH/A-T(U)
CM810N0290
Part code
Quantity
Part code
Quantity
1
Top Cover Board Assy
01264100086
1
01264100090
1
2
Evaporator Assy
01024100119
1
01024100124
1
3
Display Board
30296000040
1
30296000040
1
4
Hook
02112466
4
02112466
4
5
Water Tray Assy
01284620
1
01284305
1
6
Bottom Cover Plate Assy
01264100087
1
01264100089
1
7
Centrifugal fan assy
15404100078
1
15404100079
1
8
Brushless DC Motor
15704100009
1
15704100009
1
9
Motor
15705306
1
15704118
1
10
Motor
15705307
1
1570411801
1
11
Front Side Plate assy
01315374
1
01314100128
1
12
Main Board
30226000064
1
30226000064
1
13
Reactor
43130189
1
43130189
1
14
Terminal Board
4201800002601
1
4201800002601
1
