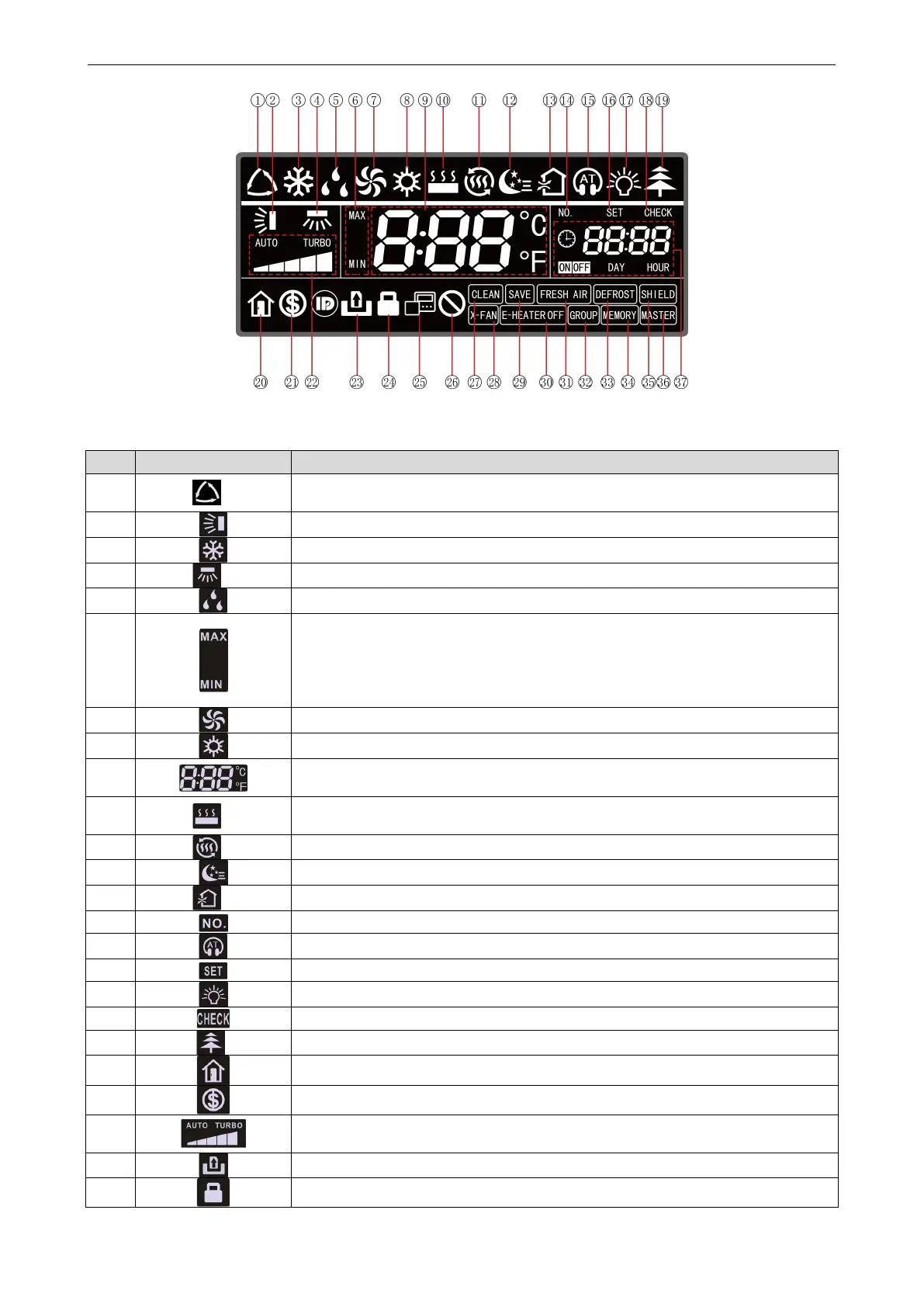

LED graphics of wired controller
Table LCD display instruction
No.
Symbols
Instructions
1
*
Auto mode (Under Auto mode, the indoor units will automatically select their operating
mode as per the temperature change so as to make the ambient comfortable.)
2
Up and down swing function
3
Cooling mode
4
*
Left and right swing function
5
Dry mode
6
It's valid under Save mode and displays during setting process.
Temperature lower limit for Cooling: Limit the minimum temperature value under
Cooling or Dry mode.
Temperature upper limit for Heating: Limit the maximum temperature value under
Heating, Space Heating or 3D Heating mode.
7
Fan mode
8
Heating mode
9
It shows the setting temperature value (In case the wired controller is controlling a
Fresh Air Indoor Unit, then the temperature zone will display FAP)
10
*
Floor Heating mode (When Heating and Floor Heating simultaneously shows up, it
indicates 3D Heating is activated.)
11
*
Space Heating mode
12
Sleep status
13
*
Air status, Indoor unit optional function
14
When inquiring or setting project number of indoor unit, it displays "NO." icon
15
Quiet status (including Quiet and Auto Quiet two status)
16
Display "SET" icon under parameter setting interface
17
Light On/Off function
18
Display "CHECK" icon under parameter view interface
19
*
Health function, Indoor unit optional function
20
Absence function
21
Save status of indoor unit
22
Current set fan speed (including auto, low speed, medium-low speed, medium speed,
medium-high speed, high speed and turbo seven status)
23
Gate-control function
24
Child Lock status
