GREE Multi Variable Air Conditioners Indoor Unit
54
2.2.2 Installation Method
(1) Wired Controller XK46 Installation Method:

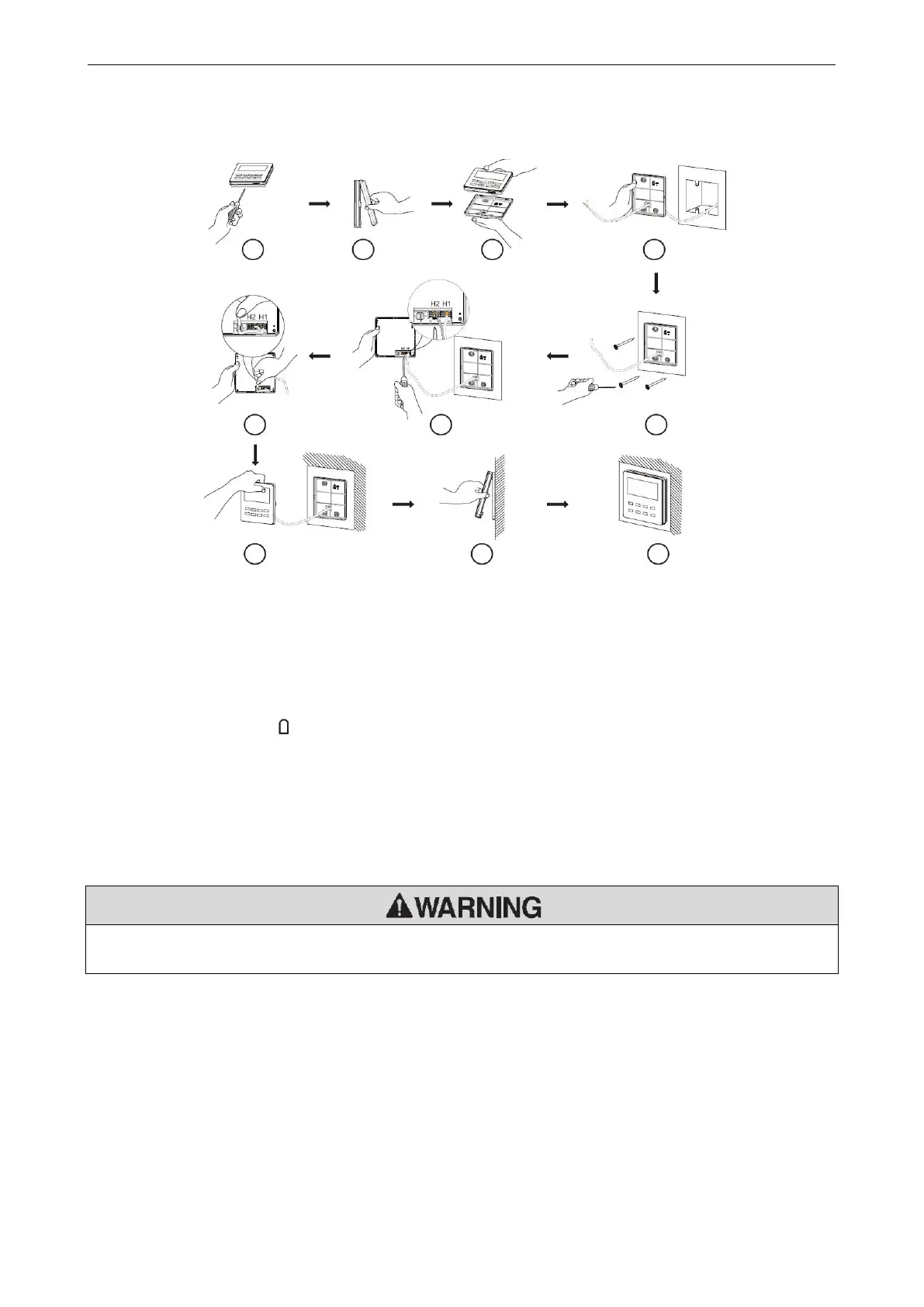

Fig. 2.2.3 Installation diagram for wired controller XK46
Fig. 2.2.3 is the simple installation process of wired controller; please pay attention to the following
items:
1) Before installation, please cut off the power for indoor unit.
2) Pull out the two-core twisted pair from the installation hole on wall, and then pull this wire
through the " ” shape hole at the rear side of Soleplate of wired controller.
3) Stick the bottom plate of wired controller on the wall and then use Self-tapping Screw
ST3.9×25 MA to fix Soleplate and installation hole on wall together.
4) Connect two-core twisted pair to H1 and H2 wiring column and then fix the screws.
5) Set two-core into the groove at left side of wiring column, and then bundle panel and
Soleplate of wired controller together.
If caliber of the communication cord is too large, which causes difficulty in leading or sticking the cord according to
above point 2 and point 5, strip some of the sheath of the communication cable to meet the installation requirement.
