Multi Variable Air Conditioners Floor and Ceiling Type Indoor Unit

4 Installation Instructions

4.1 Indoor Unit Installation

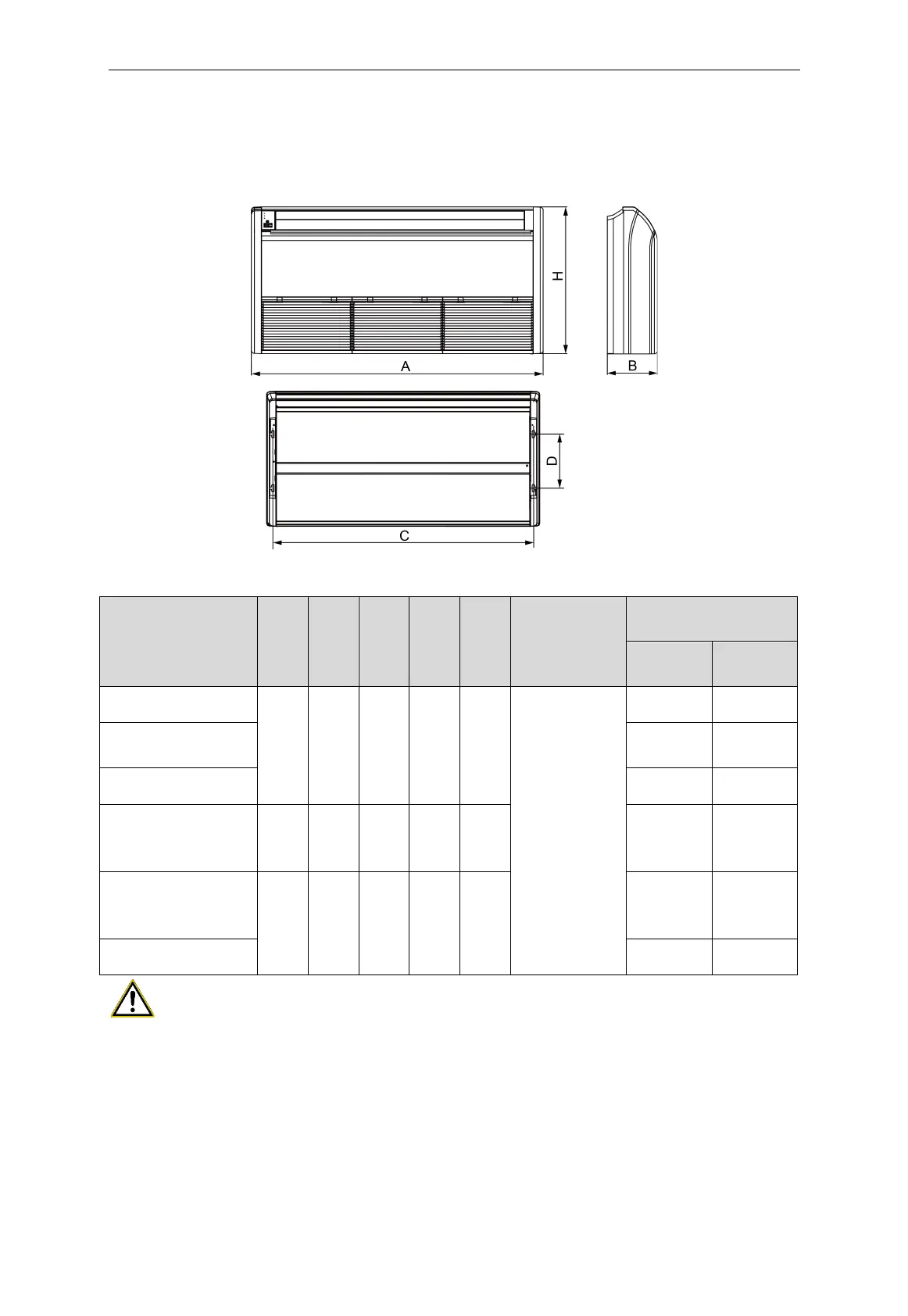

4.1.1 Indoor Unit Dimension and Suspension Bolt Position

Fig.4.1.1

Below are dimensions of A, B, C, etc. for different models:

Models

(mm)

Drainage

pipe(Outer

Diameter ×

wall thickness)

(mm)

Outer diameter of

connection pipe(mm)

Liquid

pipe

Gas pipe

GMV-ND28ZD/A-T

1220 225 1158 280 700

Ф17×1.75

6.35 9.52

GMV-ND36ZD/A-T

GMV-ND50ZD/A-T

6.35 12.7

GMV-ND56ZD/A-T 9.52 15.9

GMV-ND63ZD/A-T

GMV-ND71ZD/A-T

GMV-ND90ZD/A-T

1420 245 1354 280 700 9.52 15.9

GMV-ND112ZD/A-T

GMV-ND125ZD/A-T

GMV-ND140ZD/A-T

1700 245 1634 280 700

9.52 15.9

GMV-ND160ZD/A-T 9.52 19.05

Important:

The drilling work must be carried out by qualified personnel.
