3 Preparations for Installation
Note:
This picture is for reference only, please refer to the actual product; the unit of
dimension is mm.

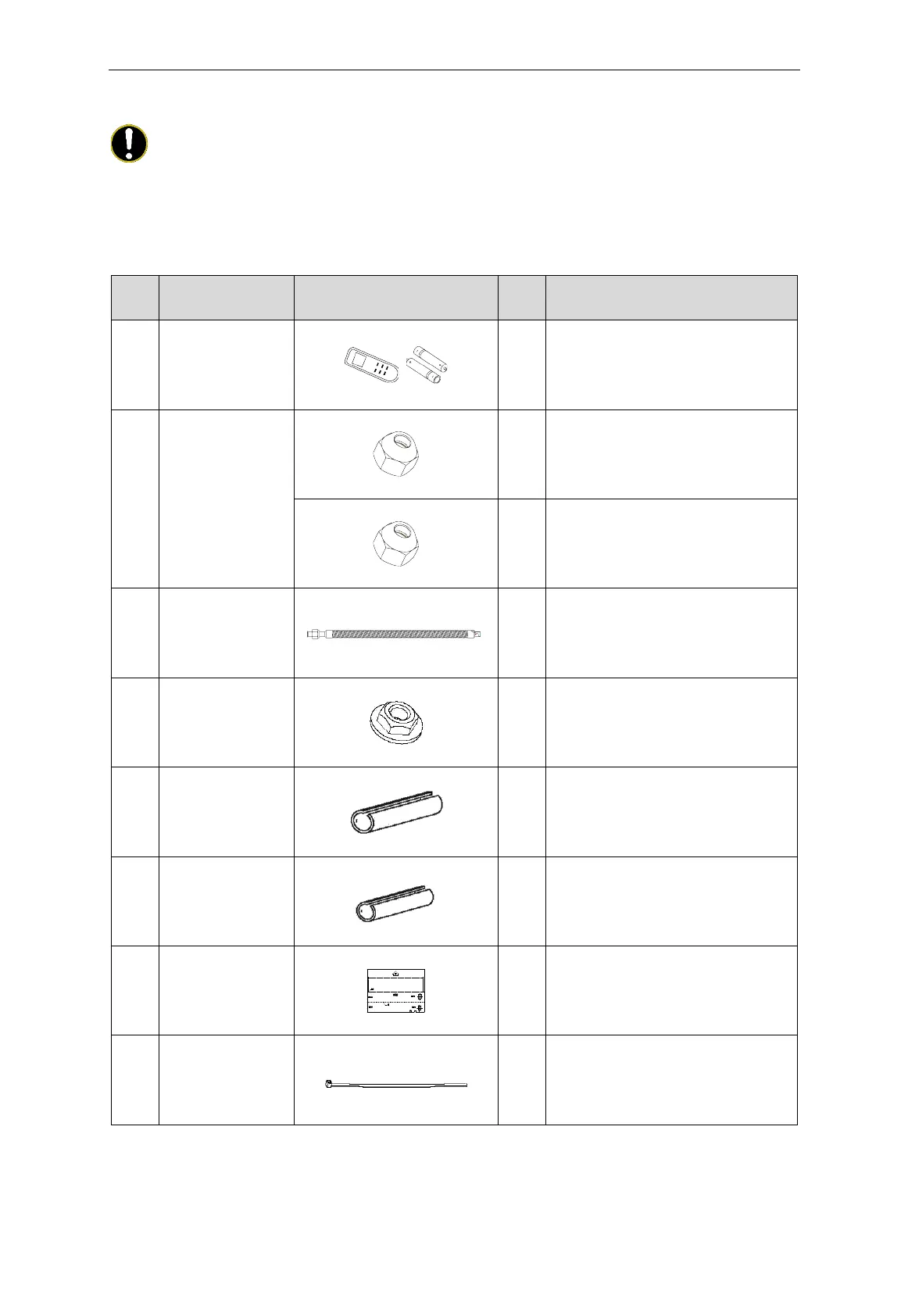

3.1 Standard Fittings
Use the following provided accessories according to the requirement.
No. Name Appearance Q’ty Usage
1
Remote
Controller
1+2 To control the indoor unit
2 Special Nut
2 GMV-ND28~50ZD/A-T
1 GMV-ND56~160ZD/A-T
3 Corrugated Pipe 1 GMV-ND56~160ZD/A-T
4
M10X8 Nut with
Washer
8
To be used together with the
suspension bolt for installing the
unit.
5 Insulation 1 To insulate the gas pipe
6 Insulation 1 To insulate the liquid pipe
7
Paper Pattern for
Installation
1
Locate the drill hole on ceiling or
wall
8 Fastener 4 To fasten the sponge
