Motor and fan
Step
Diagram
Operation Procedure

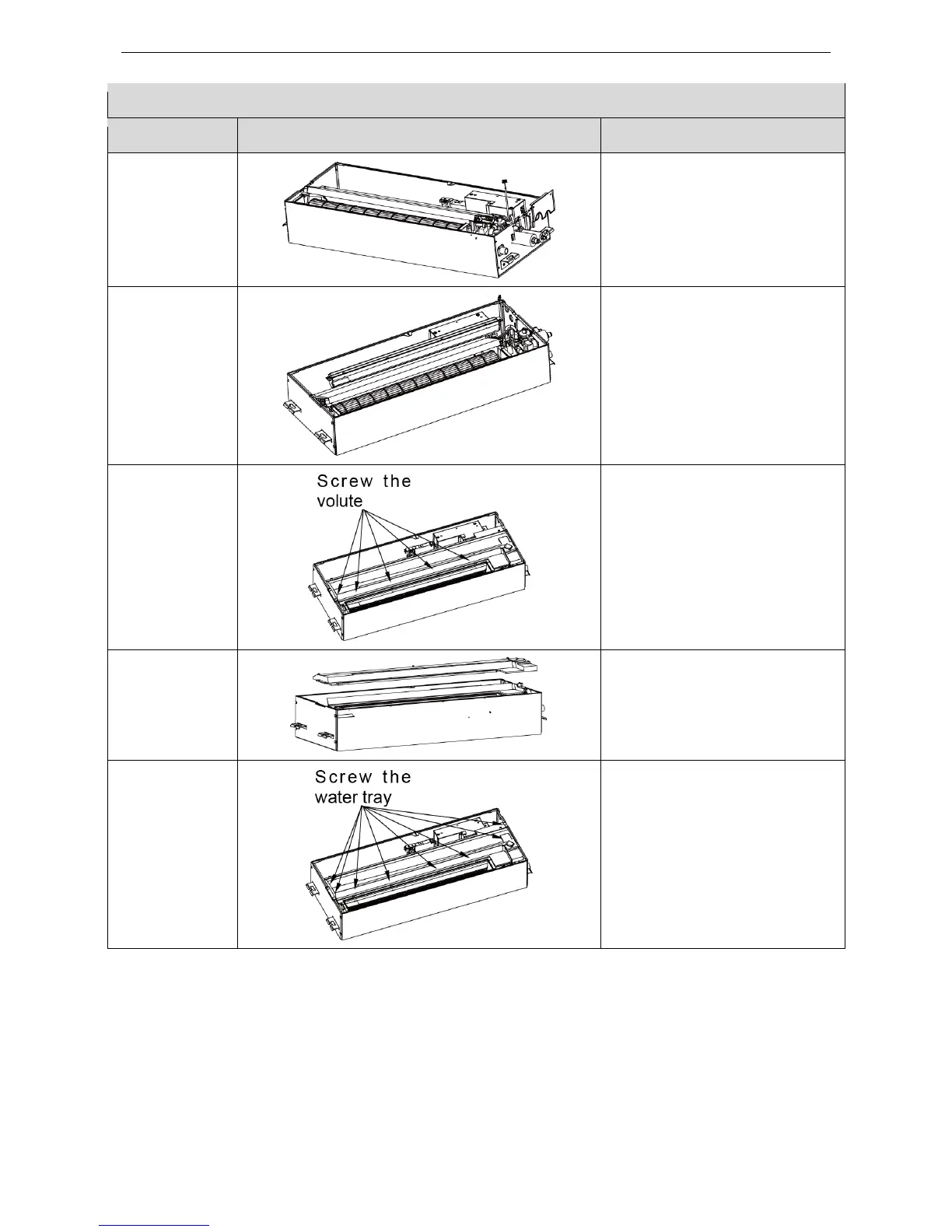

11. Screw the
outlet board.
●Use a screwdriver to screw the
outlet board.
12. Put the
volute tongue
back to position.
●Put the volute tongue back to
position.
13. Screw the
volute tongue.
●Use a screwdriver to screw the
volute tongue.
14. Install the
water tray.
●Install the water tray.
15. Screw the
water tray.
●Use a screwdriver to screw the
water tray.
