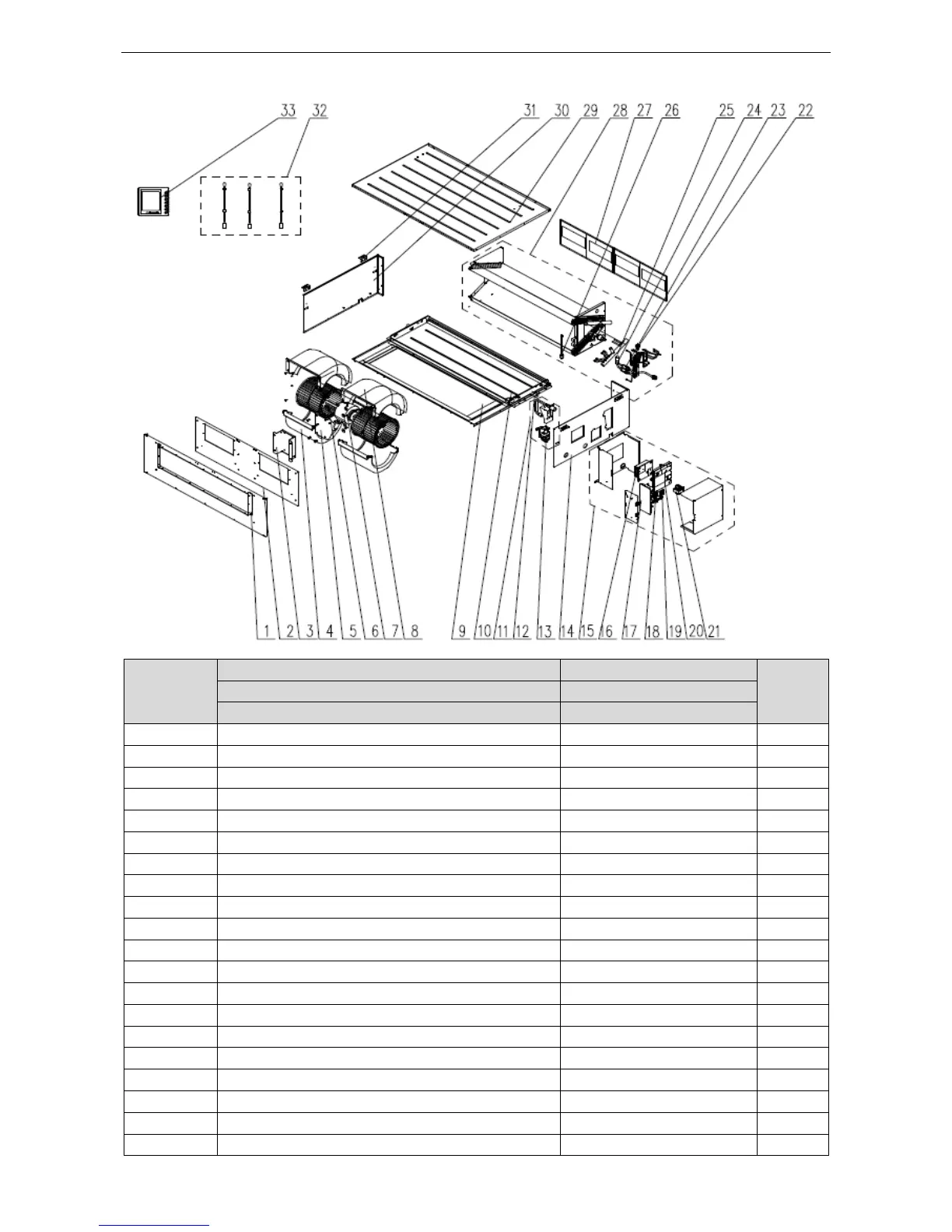

Exploded View of GMV-ND160PHS/A-T：
NO.
Model
GMV-ND160PHS/A-T
Qty.
Product Code
CM810N0250
Part Name
Part Code
1
Front Side Plate Sub-Assy
'01315200091
1
2
Blower Mounting Plate Sub-Assy
'01325200057
1
3
Support plate sub-assy (motor)
'0189520001401
1
4
Propeller Housing(Lower)
'26905200011
2
5
Motor Support
'01805200228
1
6
Centrifugal Fan
'10425200002
2
7
Brushless DC Motor
'15709400008
1
8
Propeller Housing(Upper)
'26905200010
2
9
Bottom Cover Plate Assy
'01265200045
1
10
Water Tray Assy
'01285200025
1
11
Water Pump Assy
'15405200081
1
12
Choke Plug of Drain Pipe
'76712455
2
13
Water Pump
'4313822001
1
14
Right Side Plate Assy
'01314100108
1
15
Electric Box Sub-Assy
‘01395200479
1
16
Radiator
'49018000068
1
17
Main Board
'30226000064
1
18
Terminal Board
'42010259
1
19
Terminal Board
'4201800002601
1
20
Main Board
'30221000018
1
