Multi Variable Air Conditioners Ducted Type Indoor Unit
14

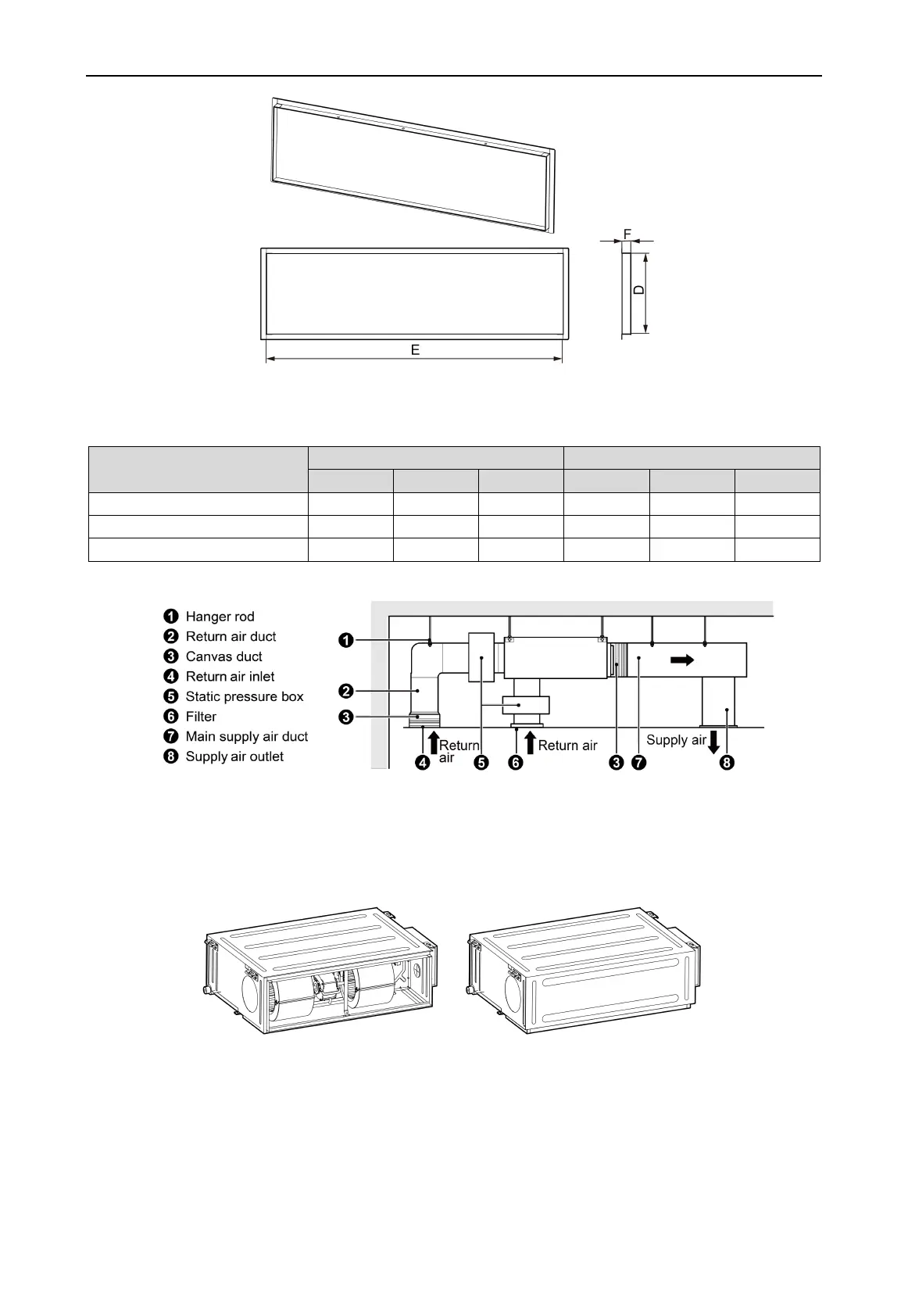

Fig.4.4.2 Air-return Opening
Unit: mm
Model
Size of Air-return Opening
GMV-ND56~80PHS/B-T 195 751 25 264 960 29
(2) Installation of Air-out Duct
Fig.4.4.3
4.4.2 Installation of the Return Air Duct
(1) The default installation location of the rectangular flange is at the back and the return air
cover plate is at the bottom, as shown in Fig.4.4.4.
Fig.4.4.4
(2) If the bottom return air is desired, just change the place of the rectangular flange and the
return air cover plate.
(3) Connect one end of the return air duct to the return air outlet of the unit by rivets and the
other to the return air louver. For the sake of the convenience to freely adjust the height, a
cutting of canvas duct will be helpful, which can be reinforced and folded by 8# iron wire.
