Multi Variable Air Conditioners Ducted Type Indoor Unit
16
④ The wiring should be in accordance with related regulations in order to ensure the units
reliable running.
⑤ Install circuit breaker for branch circuit according to related regulations and electrical
standards.
⑥ Keep cable away from refrigerant piping, compressor and fan motor.
⑦ The communication wires should be separated from power cord and connection wire
between indoor unit and outdoor unit.
⑧ Adjust the static pressure via wired controller according to site circumstance.
5.1 Connection of Wire and Patch Board Terminal

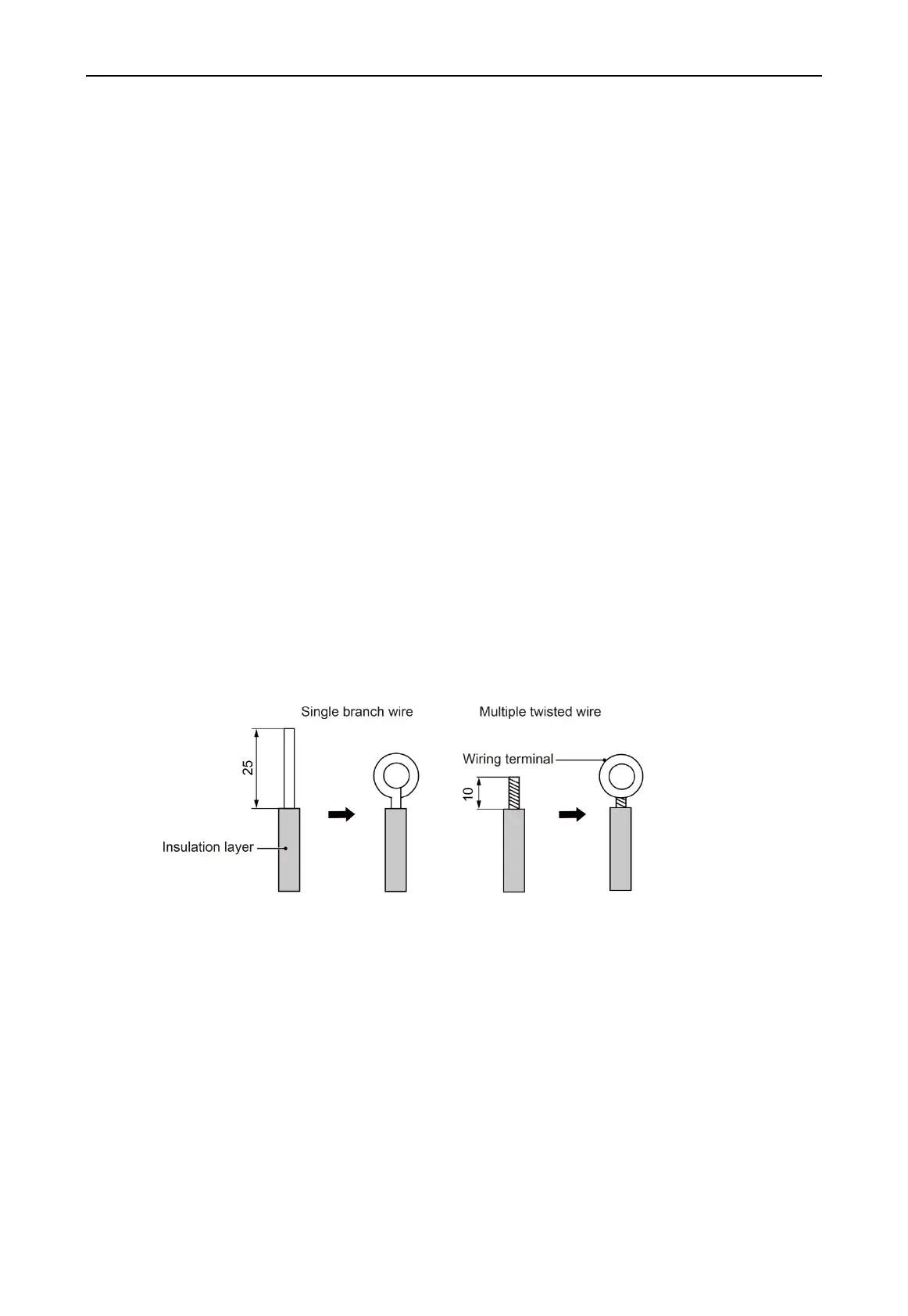

(1) The connection of wire (as shown in Fig.5.1.1)
1) Strip about 25mm insulation of the wire end by stripping and cutting tool.
2) Remove the wiring screws on the terminal board.
3) Shape the tail of wire into ring by needle nose pliers, and keep the gauge of ring in
accordance with screw.
4) Use the screwdriver for tightening the terminal.
(2) The connection of stranded wire (as shown in Fig.5.1.2)
1) Strip about 10mm insulation of the end of stranded wire by stripping and cutting tool.
2) Loosen the wiring screws on terminal board.
3) Insert the wire into the ring tongue terminal and tighten by crimping tool.
4) Use the screwdriver for tightening the terminal.
Unit: mm
Fig.5.1.1 Fig.5.1.2
