Gree GMV-ND71PHS/B-T User Manual

Multi Variable Air Conditioners Ducted Type Indoor Unit
4

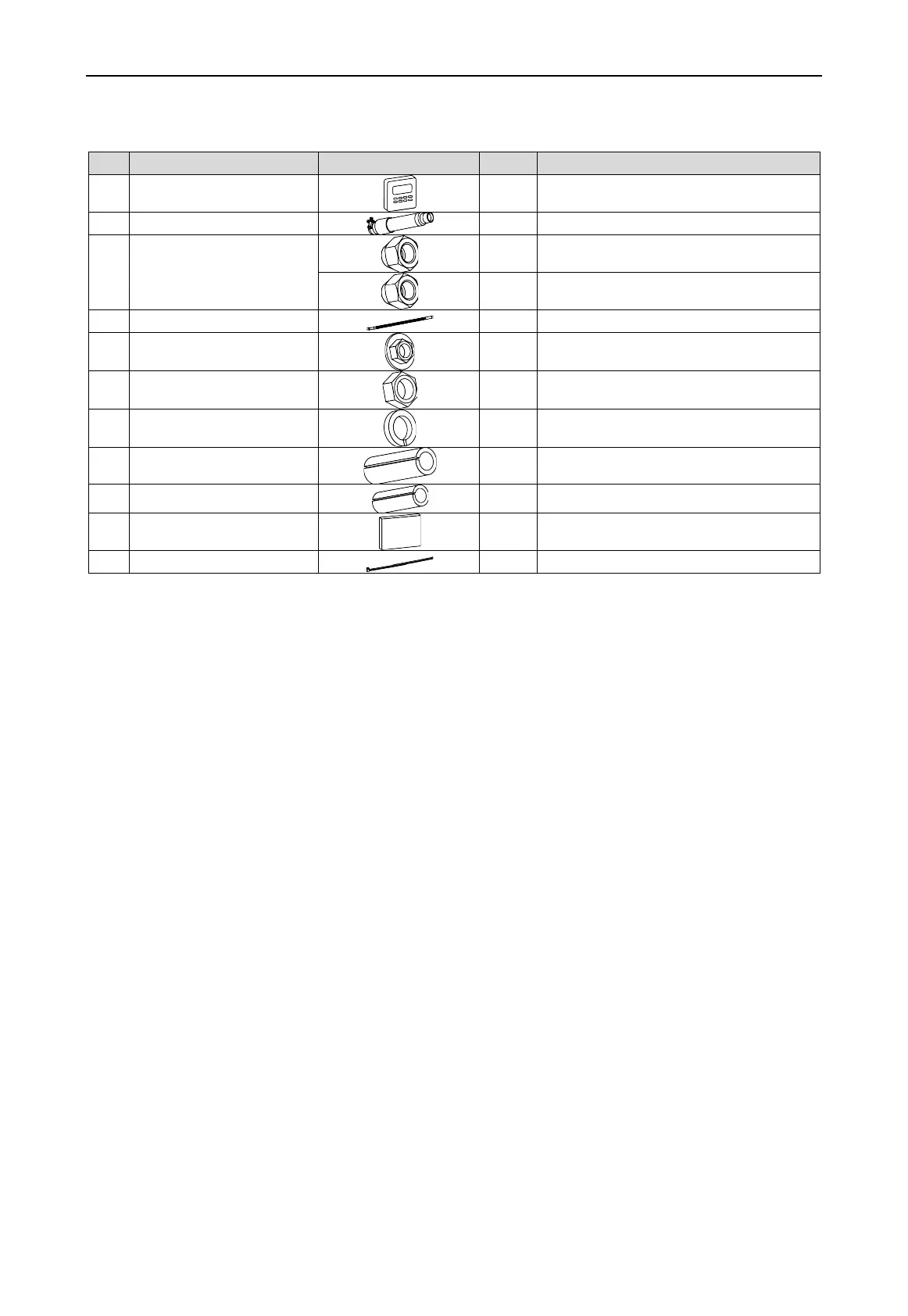

3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No.
Name
Appearance
Q'ty
Usage
1 Wired Controller 1 To control the indoor unit
2
Drain Hose Assembly
1
To connect with the hard PVC drain pipe
3 Special Nut
2 GMV-ND22~50PHS/B-T
1 GMV-ND56~180PHS/B-T
4
Corrugated pipe
1
GMV-ND56~180PHS/B-T
5 M10×8 Nut with Washer 4
To be used together with the hanger bolt
for installing the unit
6 M10 Nut (M10×8.4 Nut) 4
To be used together with the hanger bolt
for installing the unit
7
M10 Washer (Spring
Washer M10×2.6)
4
To be used together with the hanger bolt
for installing the unit
8 Insulation 1 To insulate the gas pipe
9 Insulation 1 To insulate the liquid pipe
10 Sponge 2 To insulate the drain pipe
11
Fastener
8
To fasten the sponge
NOTE:
User can purchase remote controller and receiver otherwise by himself.
3.2 Location for Installation
(1) The appliance shall not be installed in the laundry.
(2) The top holder must be strong enough to support unit’s weight.
(3) Drain pipe can drain water out easily.
(4) There is no obstacle at inlet or outlet. Please ensure good air circulation.
(5) In order to make sure the space for maintenance, please install the indoor unit according to
the dimension described below.
(6) Keep the unit away from heating source, inflammable gas or smoke.
(7) This is a concealed ceiling type unit.
(8) Indoor unit, outdoor unit, power cord and electric wire should stay at least 1m from the TV
set and radio. Otherwise, these electrical appliances may have image interference and noise
(Even if the distance is 1m, when there is strong electric wave, noise may still occur)
