Gree GMV-Pdm450W/NaB-M

DC Inverter Multi
VRF Service Manual
103
Outdoor
unit
Stop elbow
Lquid pipe
Gas pipe
Oil trap
Oil reture trap
6m
6m
6m
6m
6m
Indoor
unit 4
Indoor
unit 1
Indoor
unit 2
Indoor
unit 3

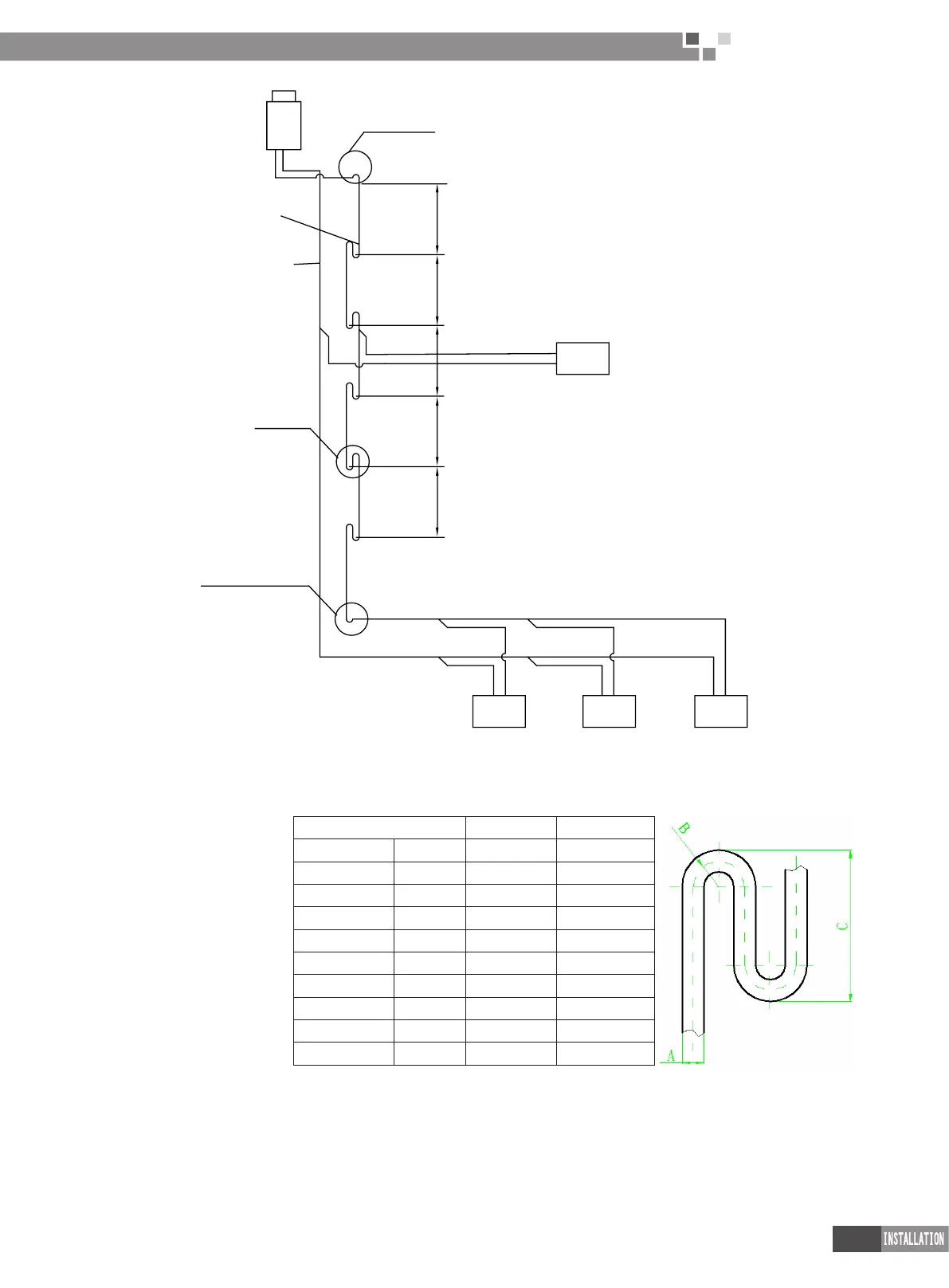

Outdoor unit higher than indoor unit
e. Fabrication dimension of oil trap is as shown below:
A
B(mm) C(mm)
mm
inch
Φ19.0
3/4 ≥34 ≤150
Φ22.2
7/8 ≥31 ≤150
Φ25.4
1/1 ≥45 ≤150
Φ28.6
9/8 ≥45 ≤150
Φ34.9
11/8 ≥60 ≤250
Φ38.1
12/8 ≥60 ≤350
Φ41.3
13/8 ≥80 ≤450
Φ44.45
7/4 ≥90 ≤500
Φ54.1
17/8 ≥90 ≤500
