DC Inverter Multi
VRF Service Manual
CONTROL
3.1.3 Installation
1 3 42

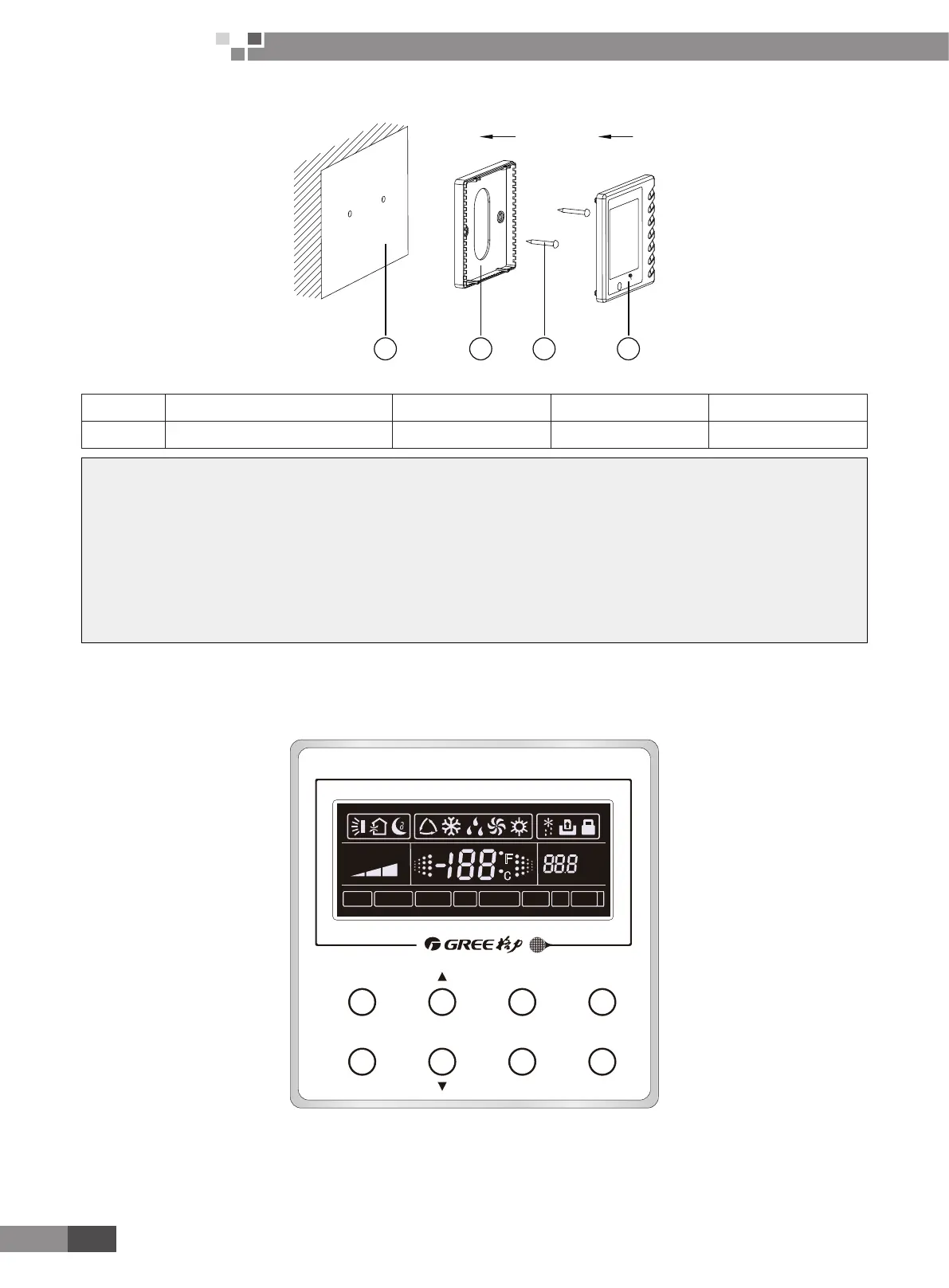

Fig.3.1.3
SN 1 2 3 4
Name Casing base, installed into the wall Controller Soleplate Screw M4X25 Controller Panel
Notice for installation under the guidance of Fig�3�1�3
① .
Cut off power supply before install the electrical components, it is forbidden to carry out the installation with
power on;
② .
Get one end of the 4 core communication cable, put it through the rectangular hole on the base board on the wire
remote controller;
③ .
Hold the base board of controller on the wall, then x it to the wall with M4x25 screw;
④ .
Plug the 4 core communication cable into the slot on the wired remote controller, then x the controller panel
with base board together;
3�2 Wired Controller XK02
3.2.1 Operation View
F
AUTO
SET
HOUR
TURBO
SHIELD
MEMORY MASTER SAVE
E-HEATER
BLOW QUIET
AUTO
CO
2
Enter/cancel Fan Mode
FunctionT imer On/Off
Fig.3.2.1.1
