GMV5 HR HEAT RECOVERY VRF Units Technical Sales Guide
Ceiling
mode
exchanger
Maintenance
port
Indoor unit
High-pressure gas pipe
Low-pressure gas pipe
Medium-pressure liquid pipe
Ceiling
mode
exchanger
Maintenance
port
Indoor unit
High-pressure gas pip
Low-pressure gas pipe
Medium-pressure liquid pipe

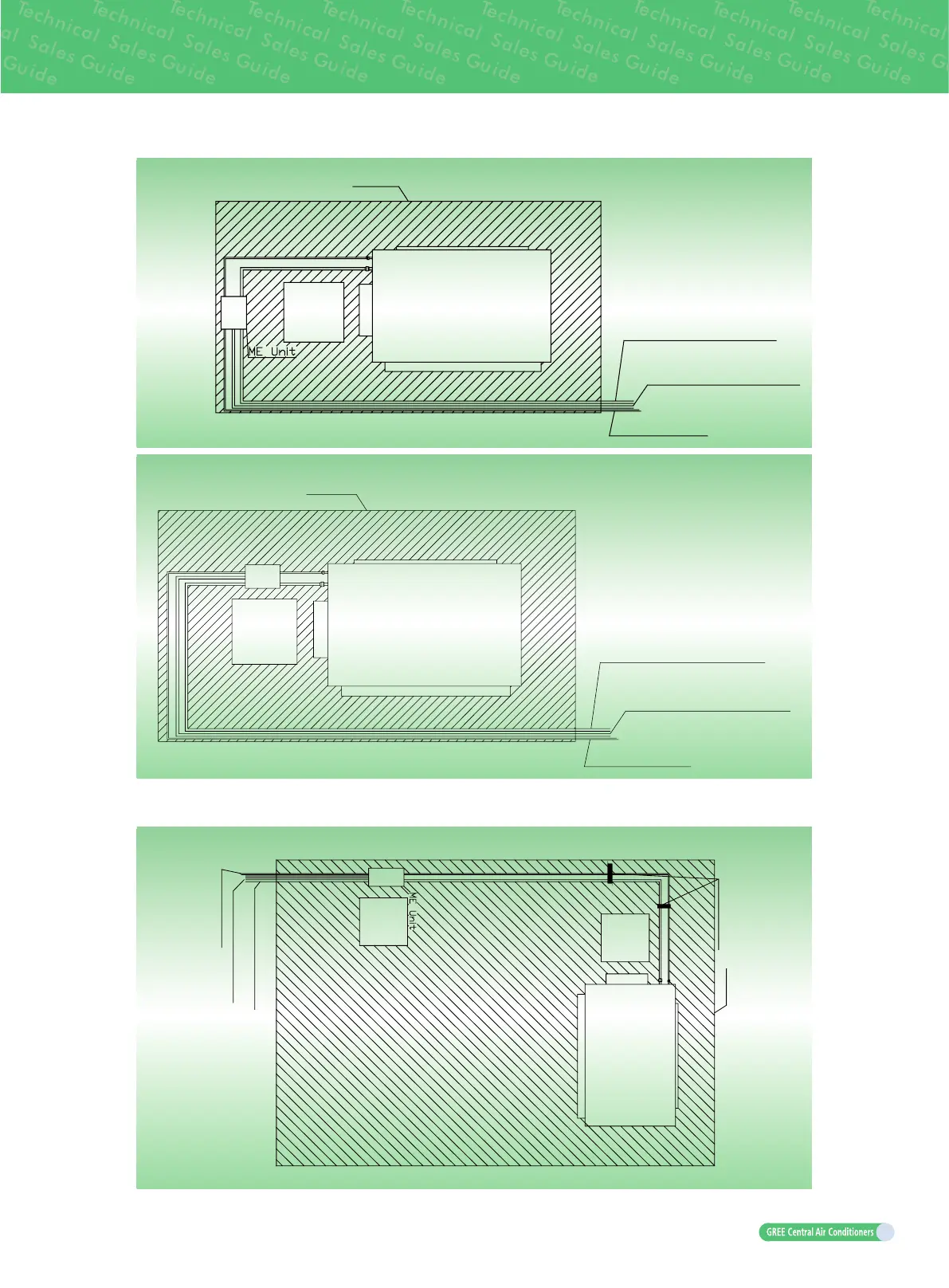

If the C&H Mode Exchanger is far away from the service port of indoor unit because of the installation
space structure, it needs to add a service port for the C&H Mode Exchanger.
Ceiling
mode
exchanger
Maintenance
port
Indoor unit
High-pressure gas pipe
Low-pressure gas pipe
Medium-pressure liquid pipe
Suspension rod for
fixing must be added
