2. Remove the rubber plug at drainage port.
1. Fix the drainage pipe clip on the right of rear side plate near drainage port with
a screw.
3. Put the drainage pipe into drainage port and screw it up, and then bind it with
pipe hoop.
drainage port
drainage port
NOTICE:
When using the continuous drainage option from the bottom hole, install
drainage pipe as follow before using, otherwise poor drainage will affect
normal operation of the unit.
There are 2 ways to remove collected water:
■

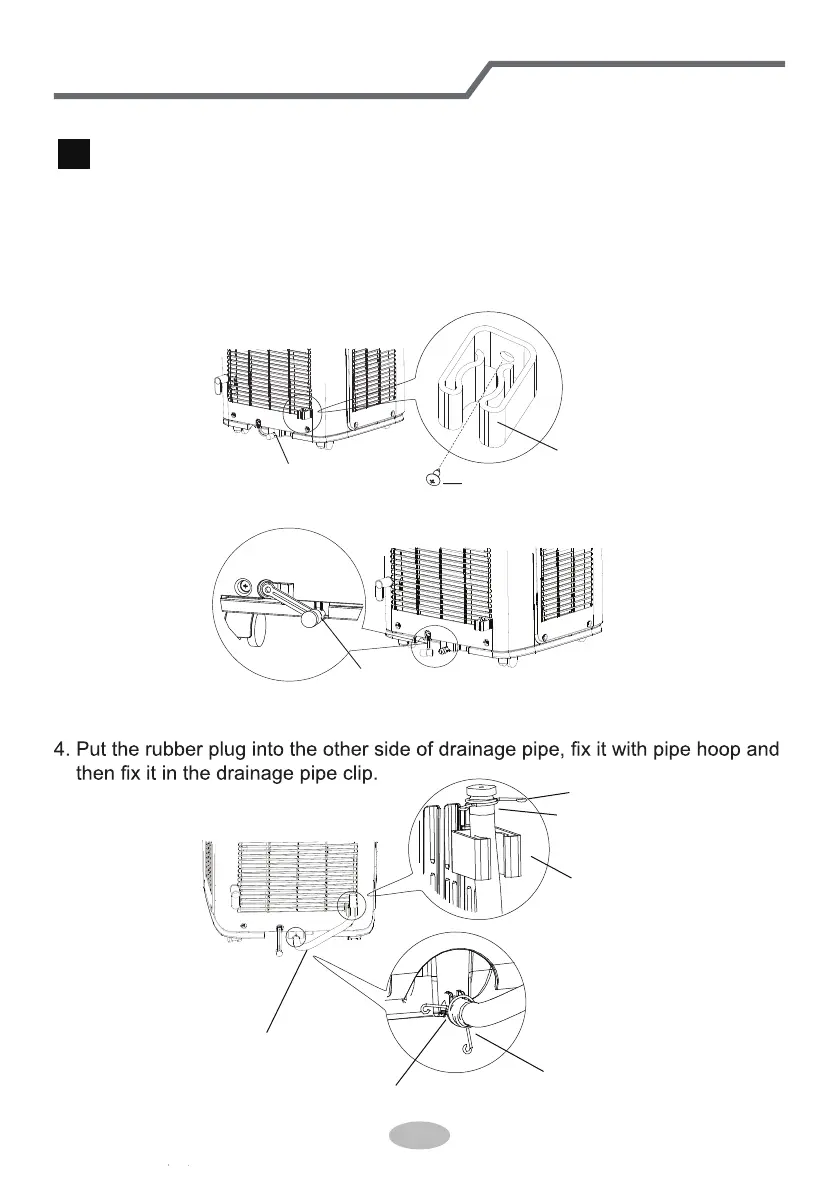

Instructions for drainage pipe installation.
Use the continuous drainage option from the lower hole.
1
Removing Collected Water
drainage pipe clip
screw
drainage port
pipe hoop
pipe hoop
rubber plug
drainage pipe clip
drainage pipe
