Installation in a double-hung sash window(Optional)
3.
4. Attach the window panel to the window stool.
Make sure that the exhaust cover is attached to the window panel.
Inner width of the window:20.5"(520mm)
Use the window panel.

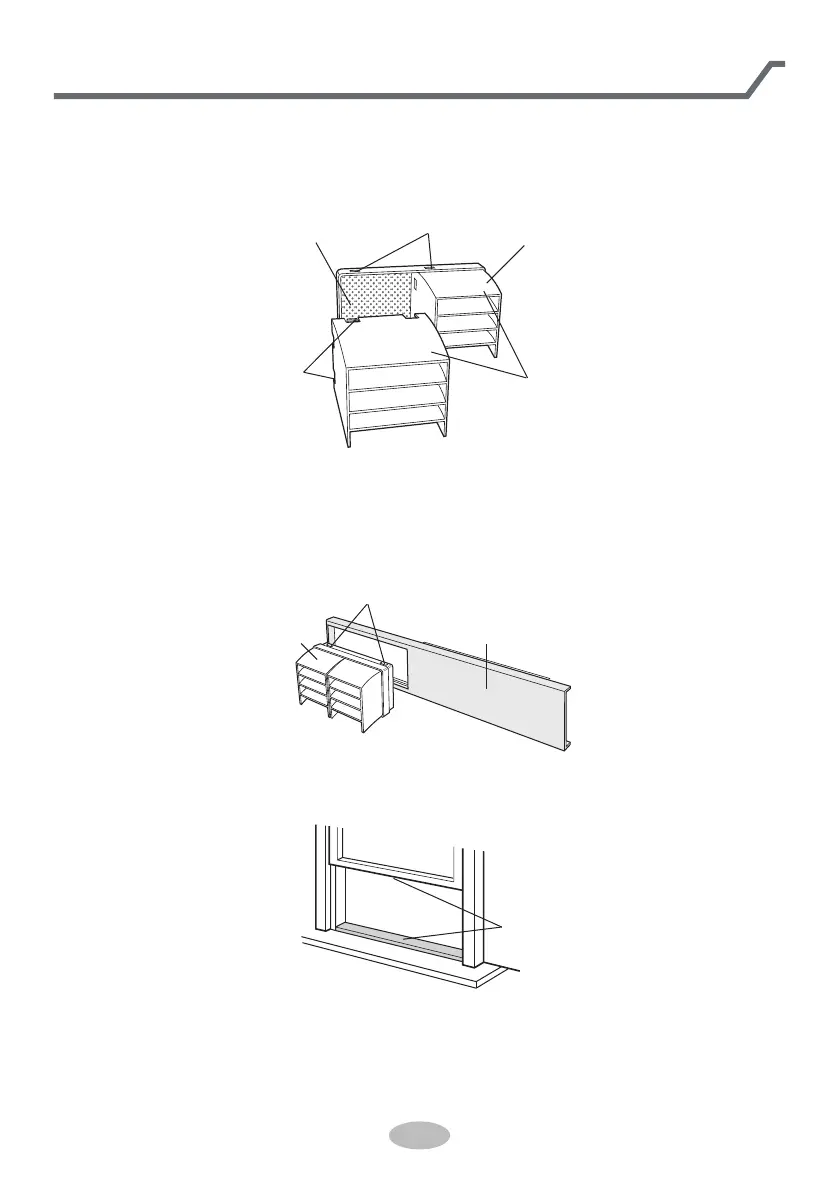

1. Connect the rain guards to the insect guard net.
Insert all three projections on each rain guard into the holes in the insect guard net.
2. Attach the guard combined above to the window panel.
Push the insect guard net firmly to ensure that its four projections fit into the holes
Side “A” will now be at the top, as indicated in the diagram.
in the window panel.
Cut the sponge A (adhesive type) to the proper length and attach it to the
window stool and to the bottom of sash.
Side “A” will now be at the top, as indicated in the diagram.
Hole
Projec-
tion
Insect guard net
Rain guard
"A"
Window panel
Projection
"A"
sponge A
