The window panel cannot be installed in windows less than 20.5" (520mm) high,
as you will be unable to shut the exhaust cover.

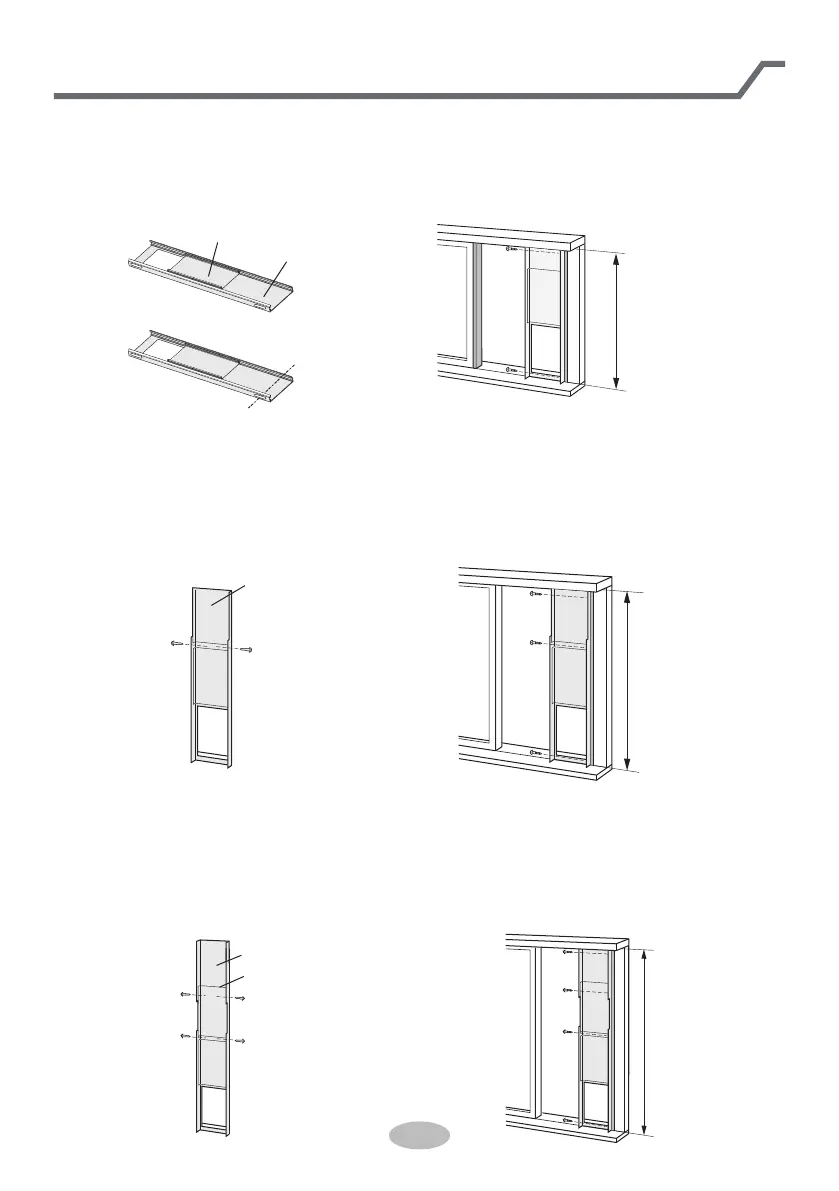

(1) Open the window sash and place the window panel on the window frame.
Inner height of the window:20.5" (520mm)- 38.5" (980mm)
Use the window panel and the adjustment panel.
Inner height of the window:38.5" (980mm) - 59" (1500mm)
Use the window panel, the adjustment panel and the extension panel.
Cut
Window panel
Exhaust cover
20.5" - 38.5"
20.5"
38.5"- 59"
Installation in a sliding sash window
(Optional)
(2) Secure the window panel to the window frame with screws.
(1) Open the window sash and place the window panel on the window frame.
(2) Slide the adjustment panel to fit the window frame height.
(3) Secure the window panel to the window frame with screws.
(1) Open the window sash and place the window panel on the window frame.
(2) Slide the adjustment and extension panels to fit the window frame height.
(3) Secure the window panel to the window frame with screws.
Adjustment panel
Extension panel
Adjustment panel
