Installation and Maintenance
Step Procedure

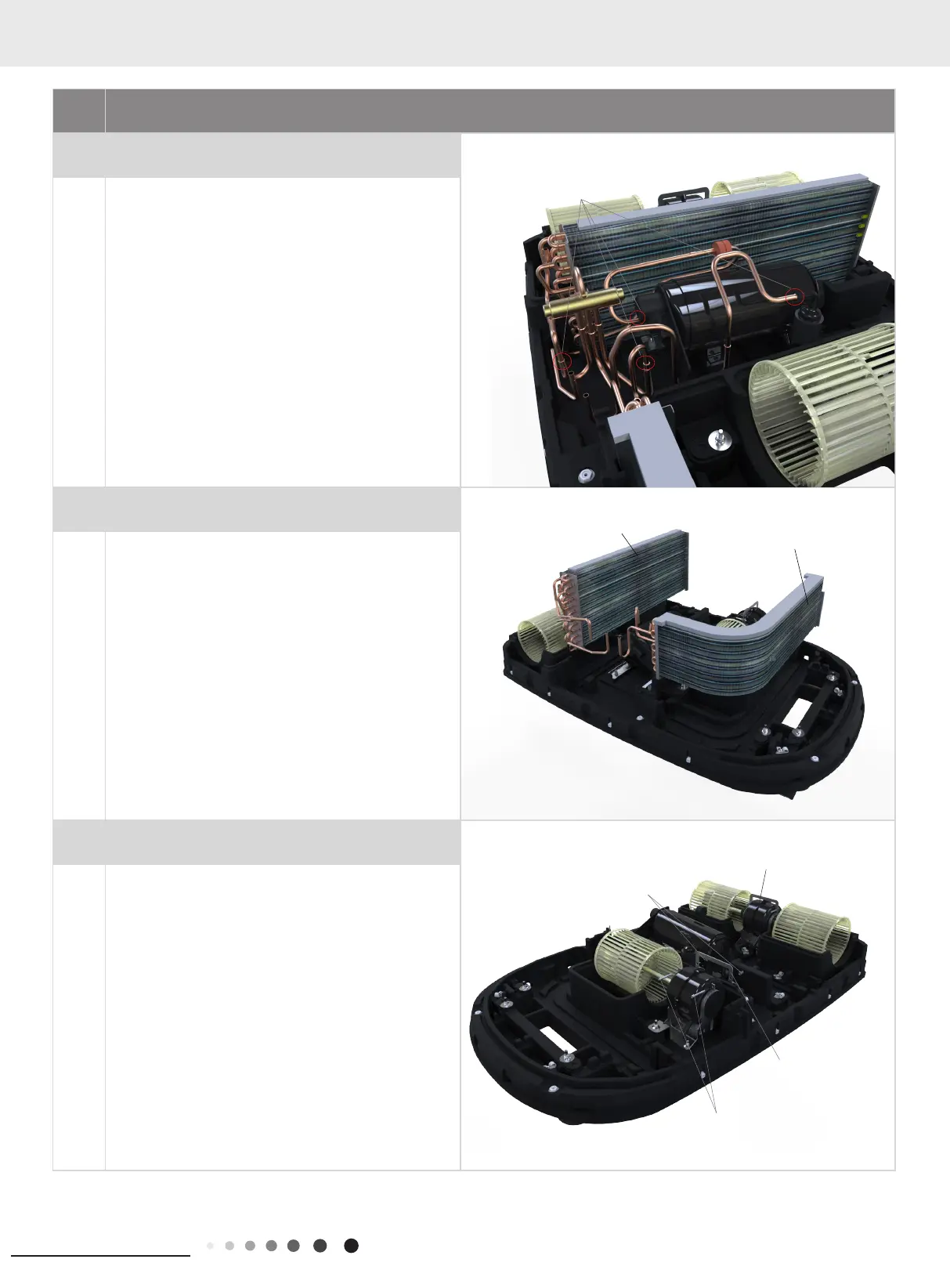

10.Remove 4-way valve assy
Unsolder the welding joint connecting the 4-way valve
assy and then unsolder the 4-way valve assy.
Note:
1.Before unsoldering the welding joint, please make
sure the refrigerant is discharged completely.
2.Before unsoldering the welding joint connecting the
4-way valve, wrap the 4-way valve assy with a wet cloth
completely to avoid damage to the valve caused by high
temperature.
11.Remove condenser assy, evaporator assy
Lift up, remove the condenserassy and evaporator assy.
12.Remove Fan Motor And Centrifugal Fan Blade
Remove Screws xing the bar clasp, remove the fan
motor and centrifugal fan blade.
Welding joint
Evaporator assy
Condenser assy
Bar Clasp
Screws
Rivet Jiont Nut
Fan Motor(outside)
To Next Page
