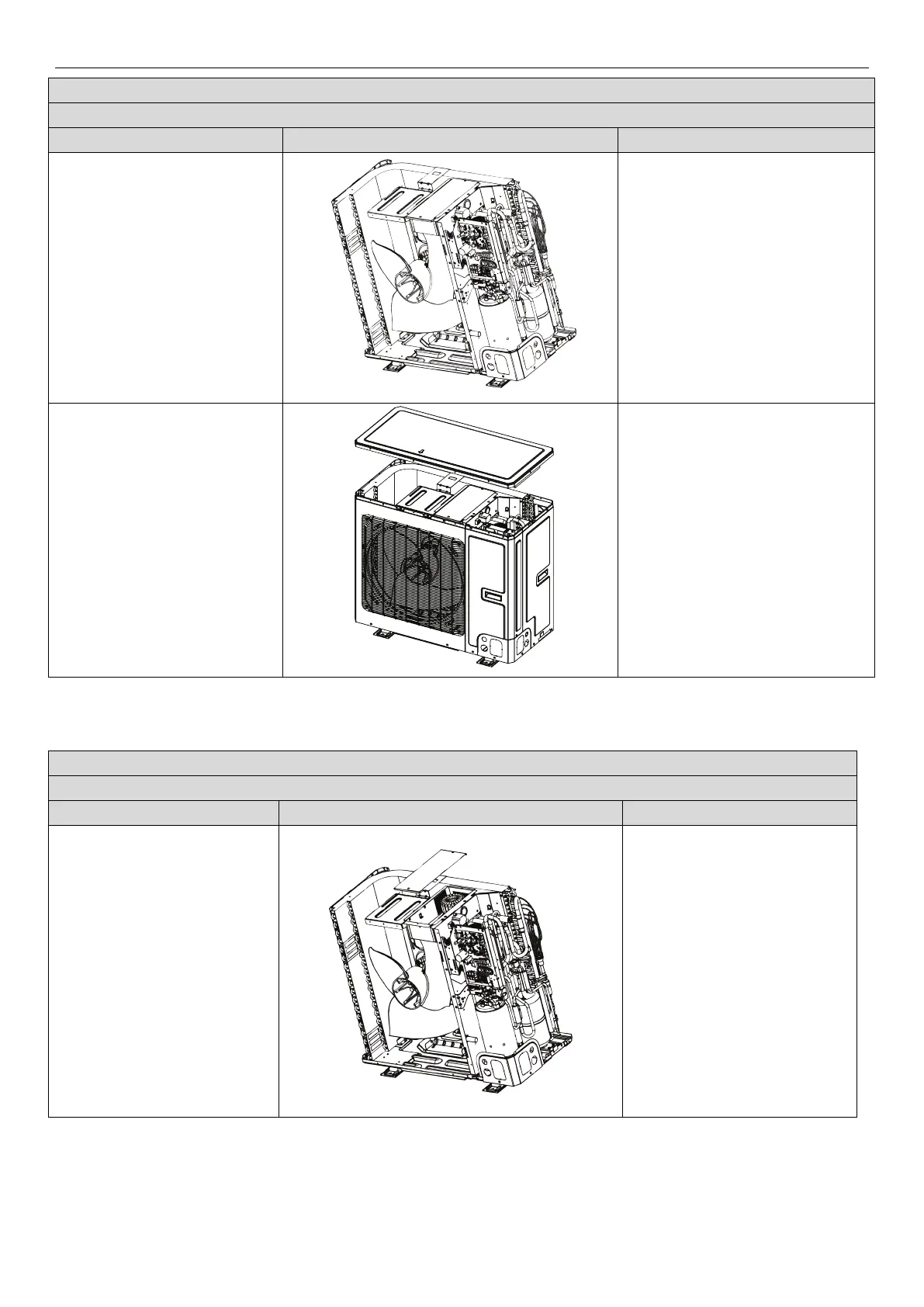

Removal of condenser
Note: Before removing the condenser, make sure there is no refrigerant in the pipeline and power is cut off.
Step Picture Work instruction
7. Secure the electric box and
arrange the wires according
to the requirement.
 Put the electric box in place and
tighten up the screws of electric
box.
 Arrange and secure the wires as
original.
8. Check and open the upper
and side panels.
 Check whether each component
and connection wire is well
connected.
 If everything is OK, place back
the upper, left and right side
panels.
Model: GUD100W/NhA-T, GUD125W/NhA-T, GUD140W/NhA-T, GUD100W/NhA-X, GUD125W/NhA-X,
GUD140W/NhA-X
Removal of electronic expansion valve
Note: Before removing the electronic expansion valve, make sure there is no refrigerant in the pipeline and power is cut off.
Step Picture Work instruction
1. Remove the electric box.
 Remove the upper, lower and
front panels.
 Loosen the wire clamp at the
bottom of the electric box
 Unscrew the screws of
electric box.
 The connection wires inside
and outside the electric box
should be removed.
 When removing the electric
box, be careful to protect the
components.
