GREE U-Match 5 SERIES UNIT SERVICE MANUAL
136
Model: GUD160W/NhA-X
Removal of gas liquid separator
Note: Before removing the gas liquid separator, make sure there is no refrigerant in the pipeline and power is cut off.

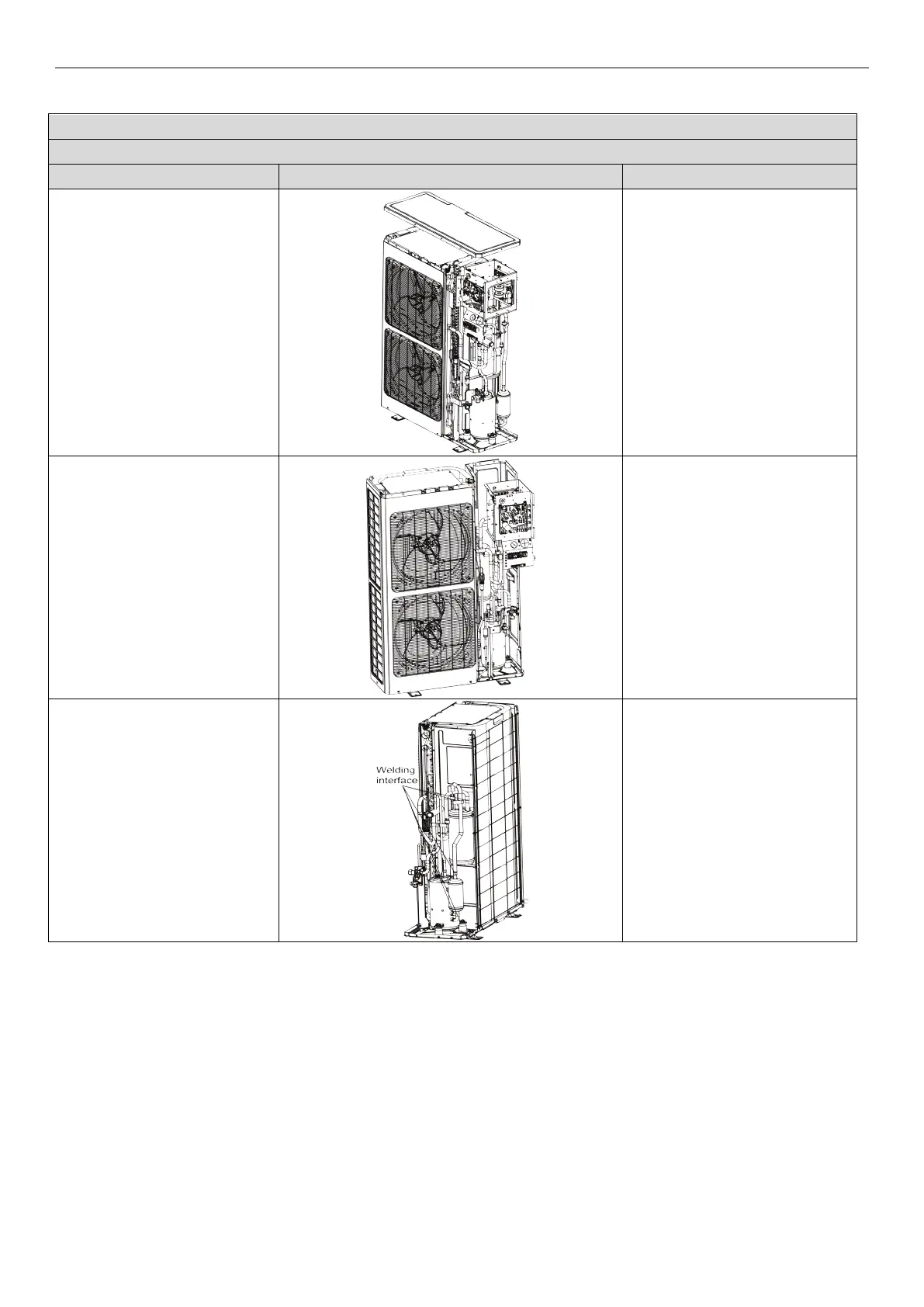

Step Picture Work instruction
1. Loosen the wire clamp at the
bottom of the electric box
and the screws of electric
box.
 Remove the upper, lower and
front panels.
 Loosen the wire clamp at the
bottom of the electric box.
 Unscrew the screws of
electric box.
2. Remove the electric box.
 The connection wires inside
and outside the electric box
should be removed.
 When removing the electric
box, be careful to protect the
components.
3. Remove the compressor/gas
liquid separator from the
chassis.
 Take away the
compressor/gas liquid
separator and replace with a
new one.
Note: When replacing the
compressor/gas liquid
separator, avoid touching the
nearby pipeline and
components.
