GREE U-Match 5 SERIES UNIT SERVICE MANUAL
152

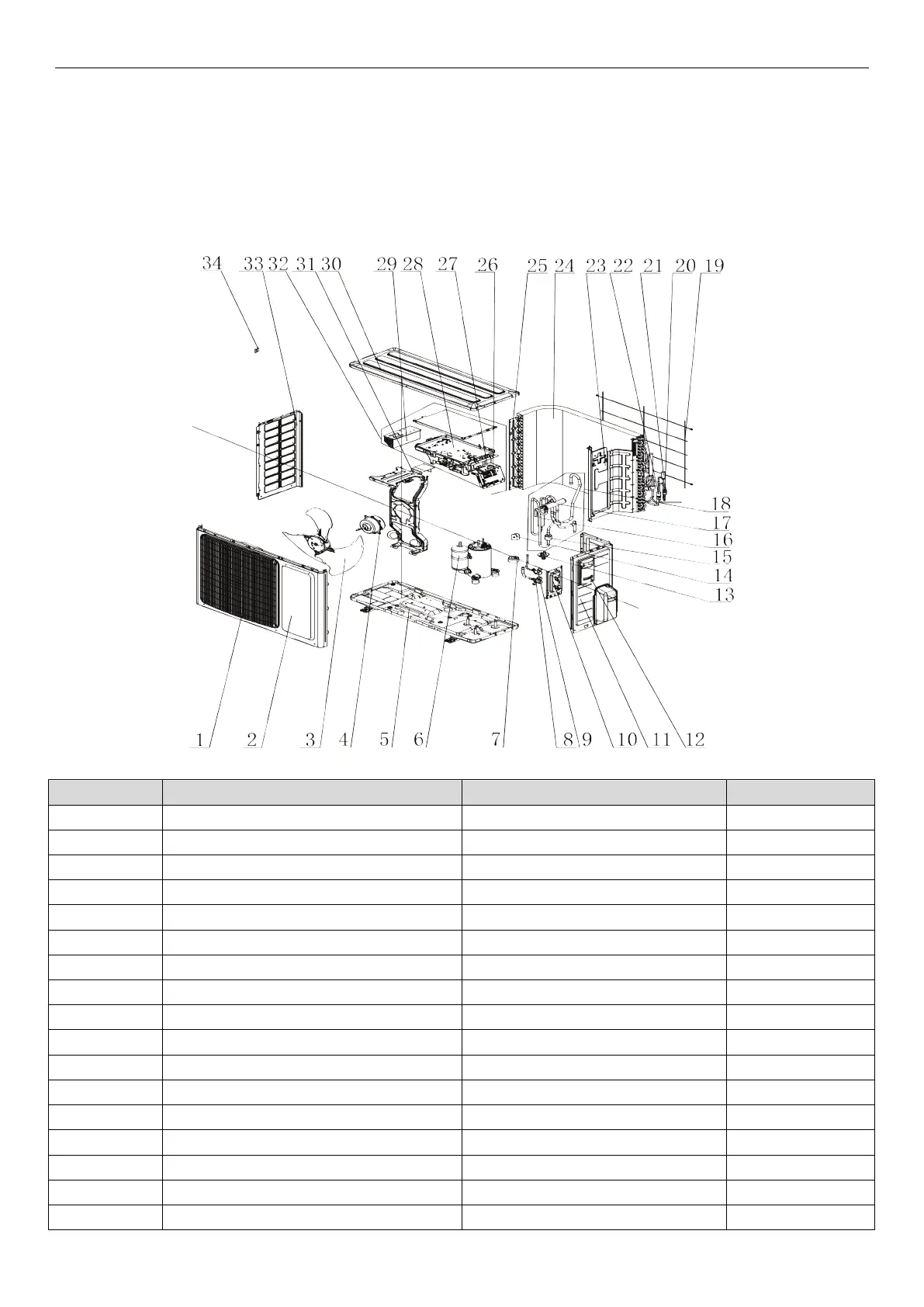

4.6 Explosive View and Lists of Parts
4.6.1 ODU Explosive View and Lists of Parts
GUD35W/NhA-T (Product Code:CF090W1310)
No. Material Name Finished Product Code Quantity
1 Front Grill 22413046 1
2 Cabinet 01433034P 1
3 Axial Flow Fan 10333011 1
4 Fan Motor 1501308511 1
5 Base Plate Sub-Assy 17000060107 1
6 Compressor and Fittings 9001060093 1
7 Electric Expand Valve Fitting 4300034401 1
8 Cut off Valve 71302395 1
9 Cut off Valve 7130239 1
10 Valve Support Sub-Assy 01713115P 1
11 Right Side Plate 0130324403P 1
12 Big Handle 2623343106 1
13 Drainage Joint 26113009 1
14 4 Way Valve Coil 4300040087 1
15 Silencer 7245013 1
16 Silencer 1 7243050 1
17 4-way Valve 430004032 1
