GREE U-Match 5 SERIES UNIT SERVICE MANUAL
150
4.5.2.4 Wall Mounted Type
Note:
The following steps are specific for GUD100G/A-T units. For other units, the assembly and disassembly
procedure is similar except the numbers of louvers and motors.
Removal of Fan Motor
Remark: before removing, making sure power is disconnected.

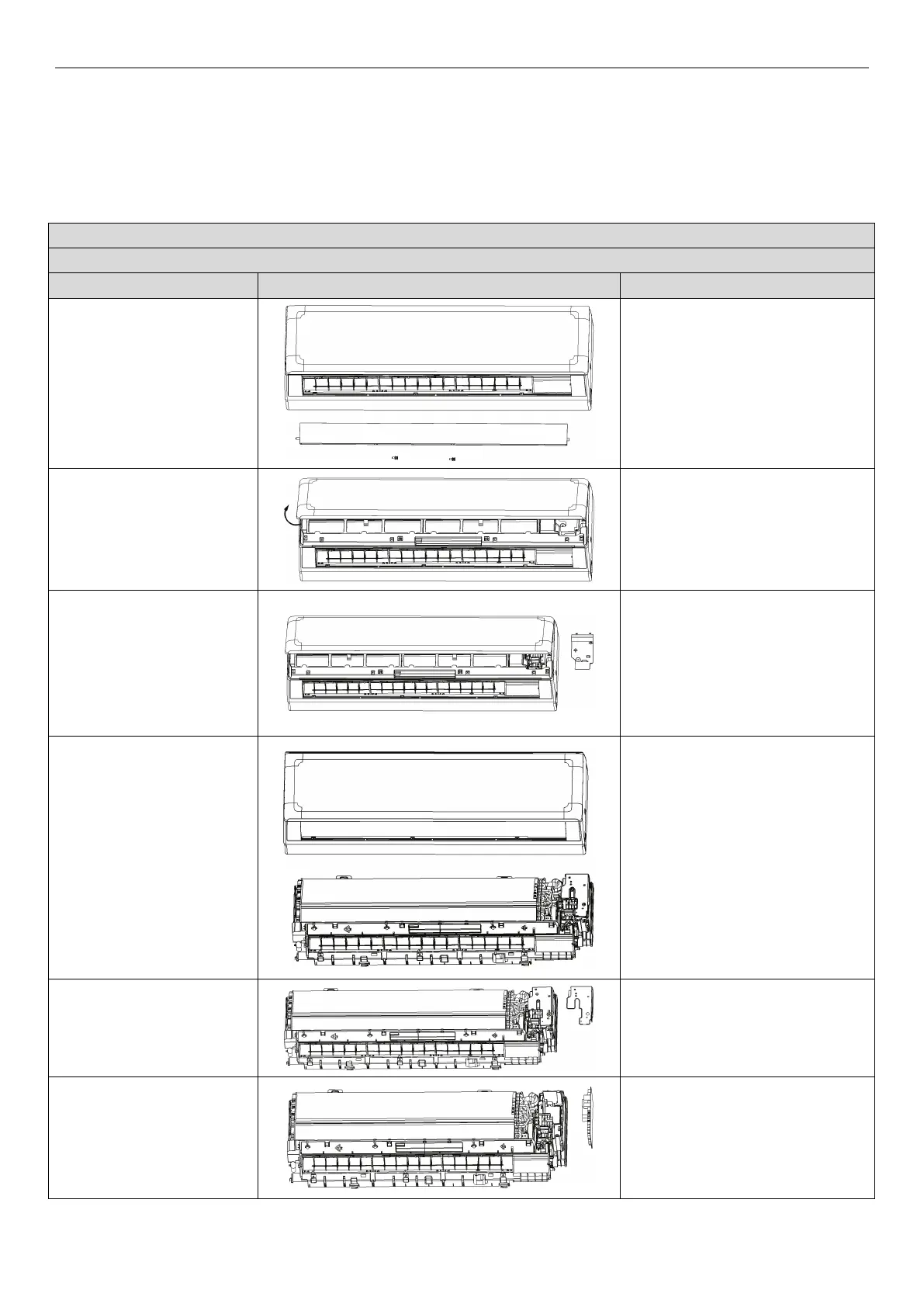

Step Diagram Operation Procedure
1. Remove the louver
 Take off the axle bush of the
louver.
 Remove the louver.
2. Open the front panel
 Hold the indents on both sides of
the panel and pull it out in the
direction shown by the arrow.
3. Remove the electrical box
cover 2
 Unscrew the screws fixing the
electrical box cover with a
screwdriver. Take off the box
cover 2.
 Detach the ambient temperature
sensor from the conduit.
4. Remove the front panel
assembly
 Unscrew the screws fixing the
front panel assembly.
 Remove the front panel
assembly.
5. Remove the electrical box
cover 1
 Press on the buckle of the box
cover 1 and then take off the
cover.
6. Remove the main board
 Release the wiring terminals
connected to the main board.
 Remove the main board.
