Service Manual
12
Technical Information

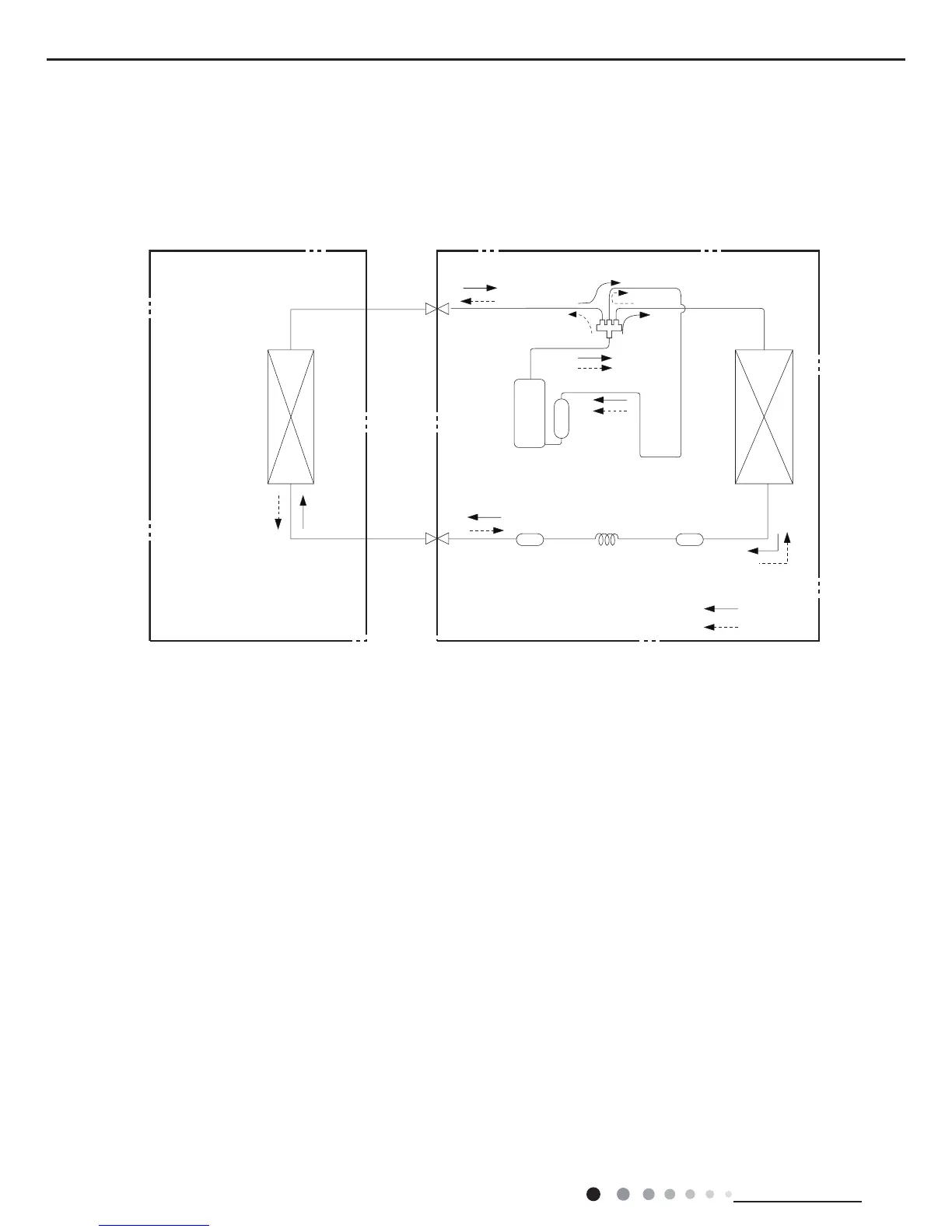

4. Refrigerant System Diagram
Cooling and heating model
Indoor unit
Outdoor unit
Indoor unit
Outdoor unit
COOLING
HEATING
Accumlator
4-Way valve
COOLING
Discharge
Suction
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Heat
exchanger
(condenser)
Valve
Valve
Valve
Valve
Liquid pipe
side
Gas pipe
side
Liquid pipe
side
Gas pipe
side
Compressor
Accumlator
Compressor
Strainer
Strainer StrainerCapillary
Capillary
Connection pipe specication:
Liquid pipe:1/4" (6mm) 24K
Liquid pipe:1/2" (12mm) 48/55K
Gas pipe:5/8" (16mm) 24K
Gas pipe:3/4" (19mm) 48/55K
