Gree GVA24AL-K3NNC7A/I - Installation Procedures

Service Manual
33
Installation and Maintenance
8. Installation

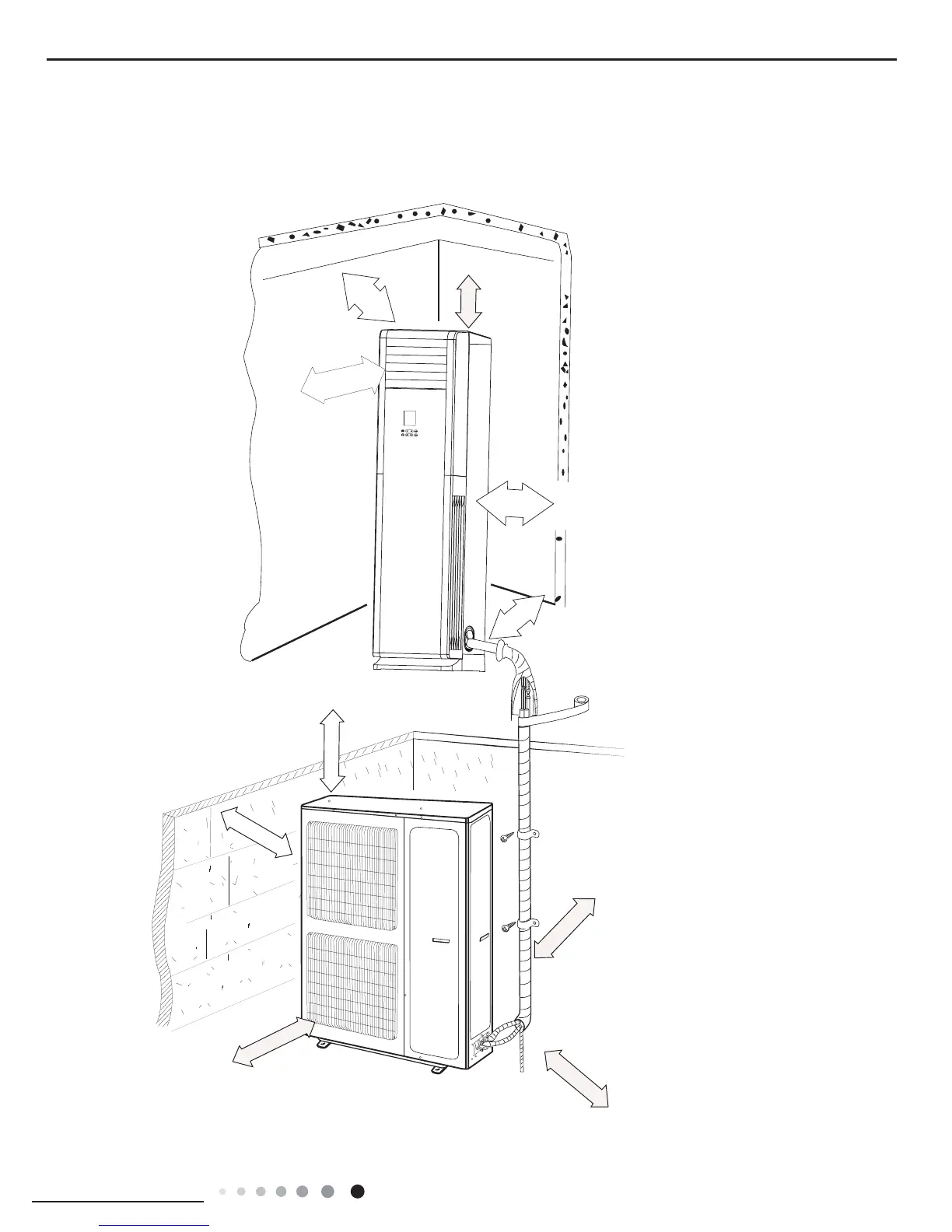

8.1 Installation Dimension Diagram
A
way from obstacles
Away from wall (30cm at
Away from back side
Away from ceiling
least for piping side)
Away from wall (30cm
at least for piping side)
5cm above
10cm above
10cm above
200cm above
30cm
Away from obstacles
60cm above
Away from obstacles
10cm above
Away from obstacles
200cm above
Away from obstacled
60cm above
Away from wall
10cm above
