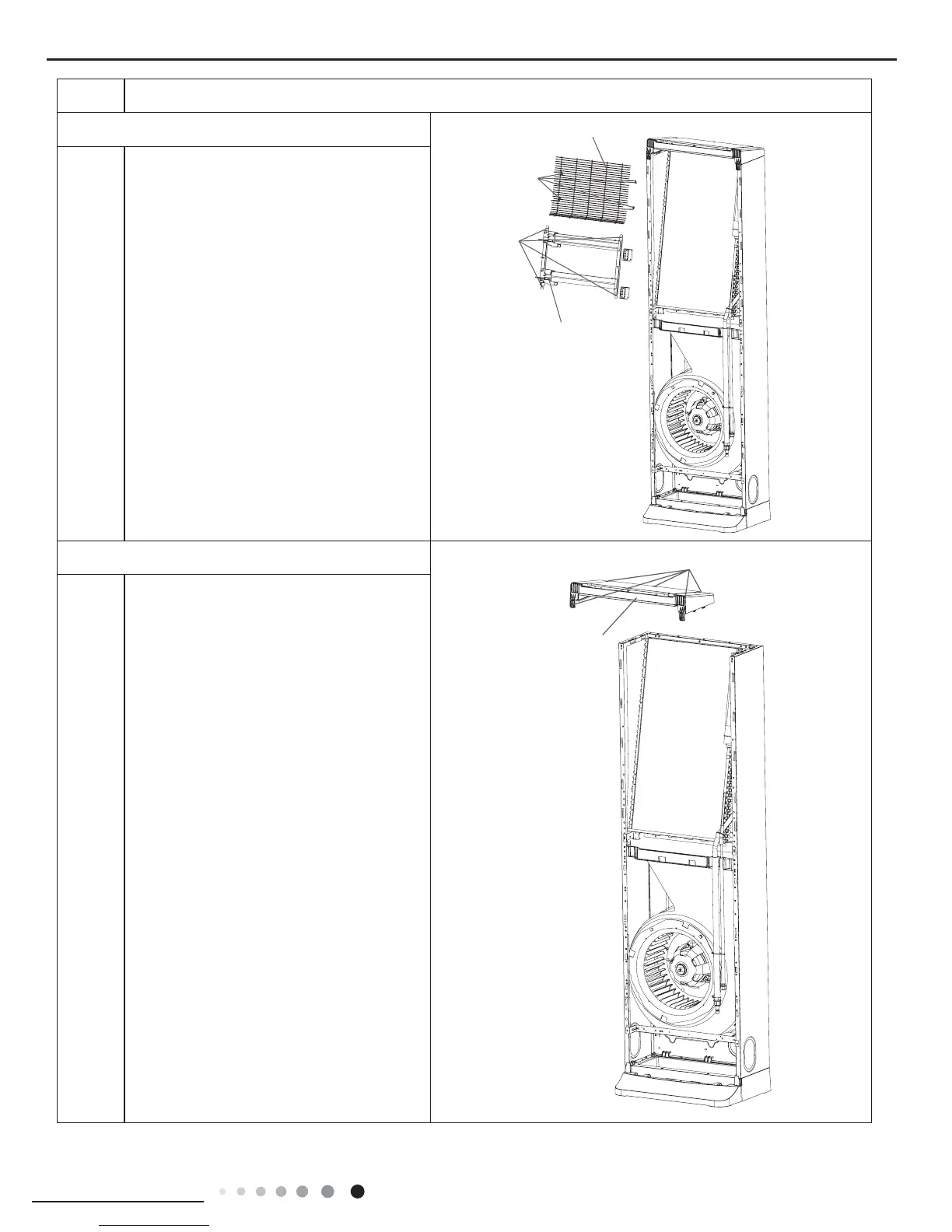

11.Remove electric heating part
12.Remove top cover
Remove 5 screws used for fixing the top
cover, pull it upwards and then remove the
top cover.
Remove 4 screws used for fixing the
guide grille and then remove the guide
grille. Remove 4 screws xing the electric
heating part, and then remove the electric
heating parts.
screw
electric heating part
top cover
guide grille
screw
screw
