Installation and Maintenance
Procedure
Step

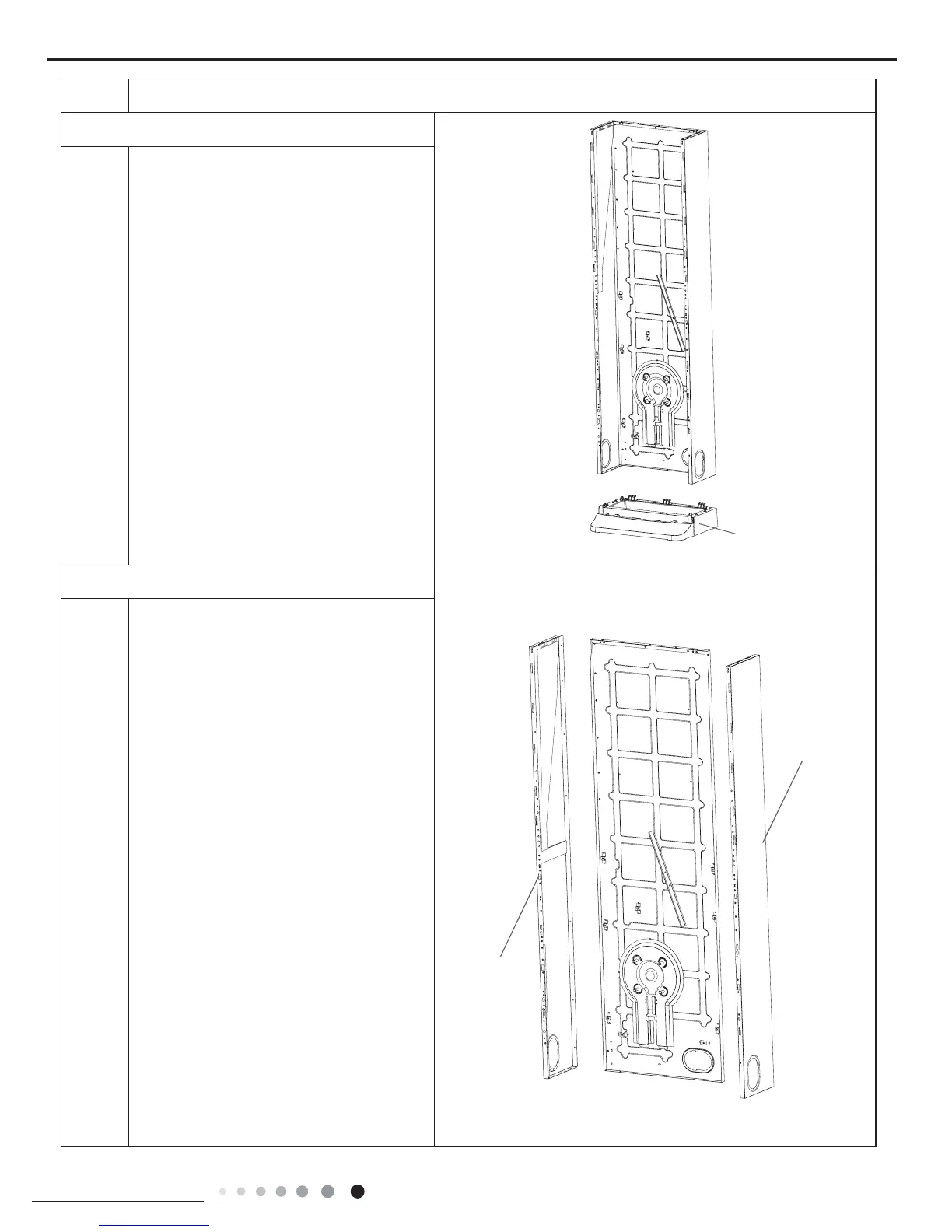

15.Remove chassis
chassis
right side plate
sub-assy
left side plate
sub-assy
16.Remove left and right side plates sub-assy
Remove screws on both plates, pull it to
both sides respectively and then remove
left and right side plates sub-assy.
Remove 9 screws, pull it downwards and
then remove the chassis.
