11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant
completely before removal.
Step Procedure

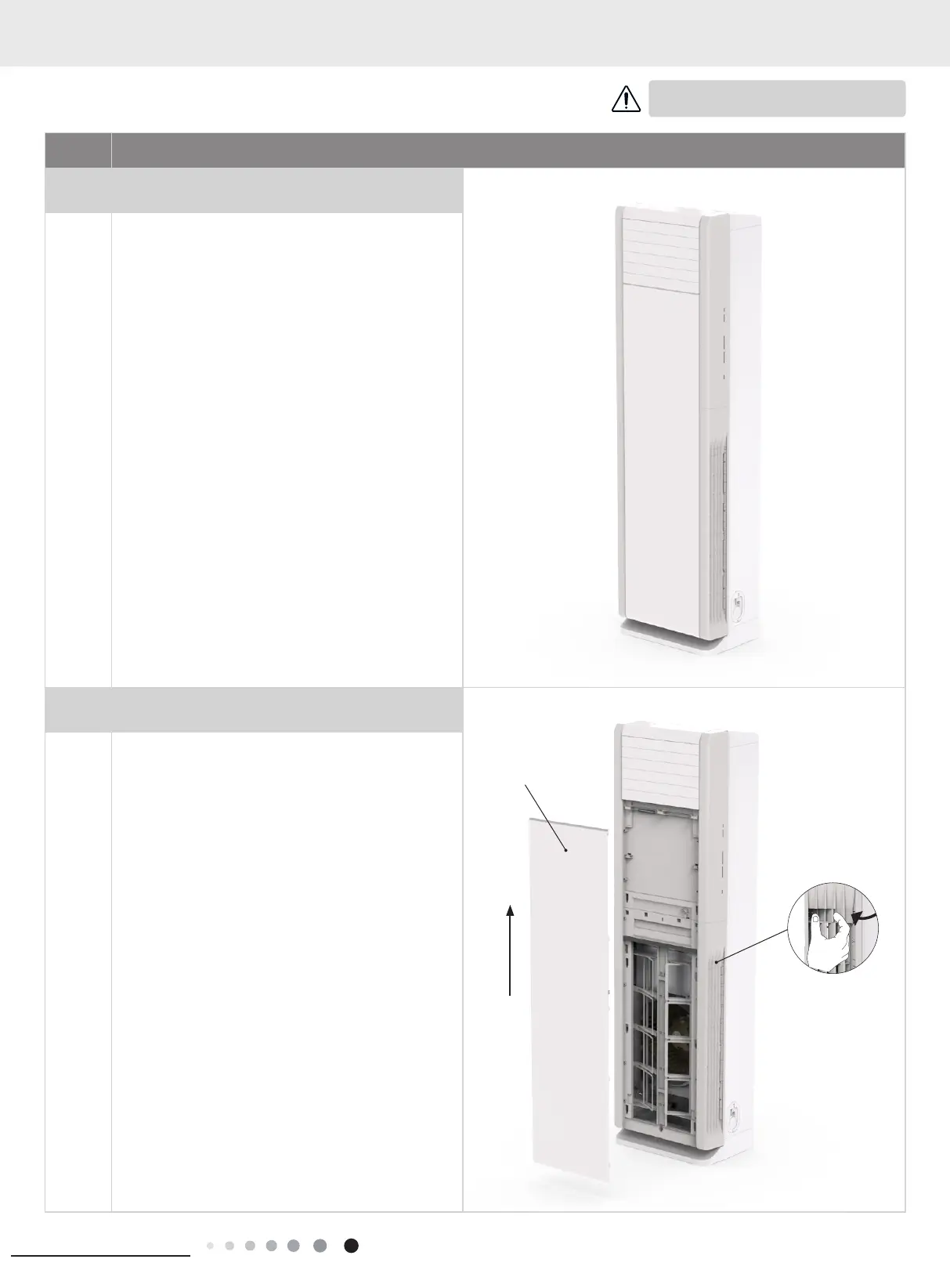

1.Outside view of indoor unit
2.Remove the front door plate sub-assy
Take out the screw cover, use screwdriver to remove
the screws at both side of air-in panel, push the front
door plate upwards and then separate the connector
connected to the connection wire of display and then
remove the front door plate sub-assy.
Front door plate
sub-assy
AM model
To Next Page
