83
Installation and Maintenance
Service Manual

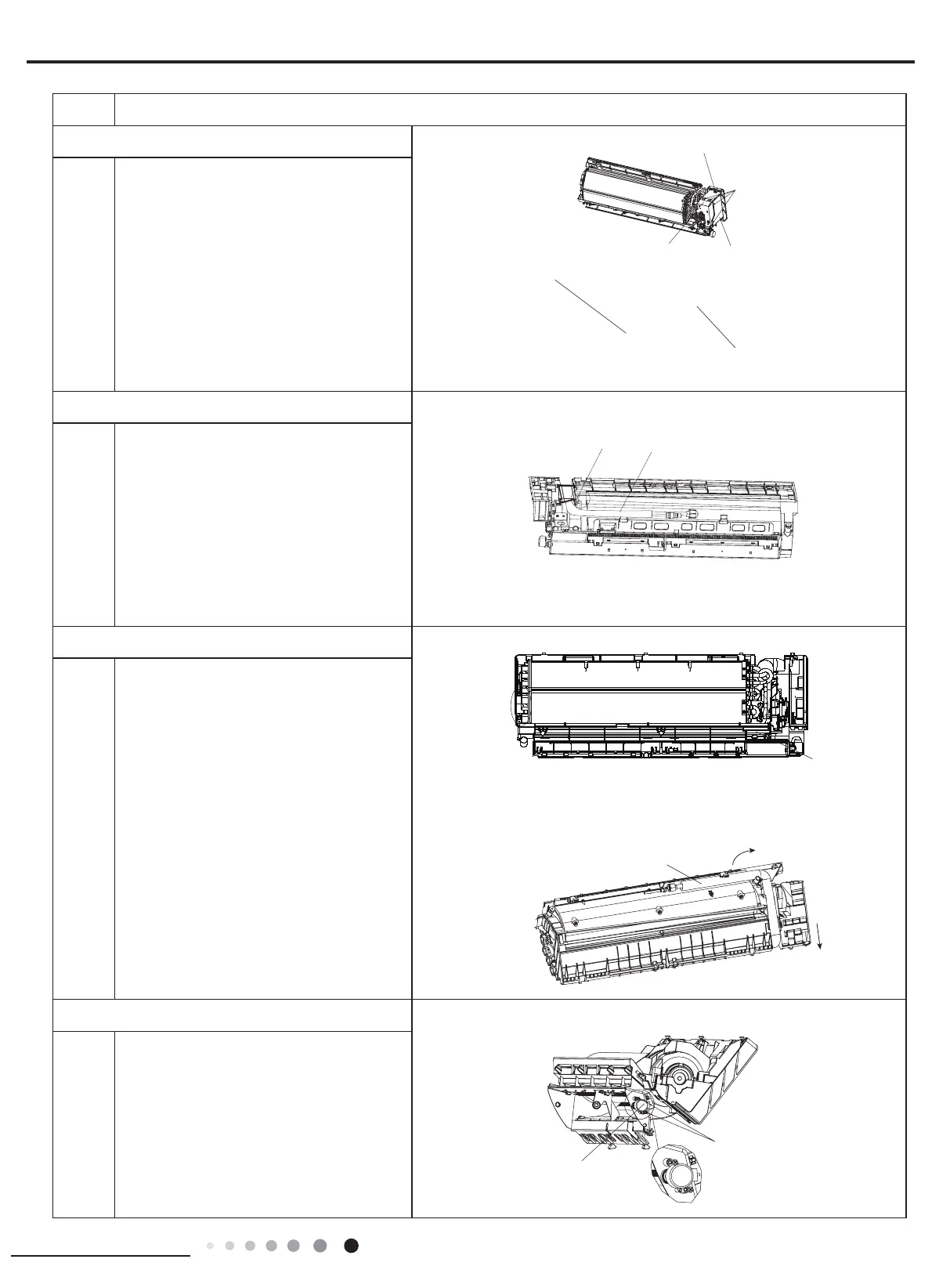

Step Procedure
11.Electric box assy
12.Remove connection pipe clamp
13.Remove evaporator assy
14.Remove stepping motor
Screw
Screw
Electric box assy
Connection pipe clamp
Evaporator assy
Connection pipe
Remove the screw xing electric box
assy and then remove the electric box
assy.
At the back of the unit, remove the
screw xing connection pipe clamp
and then remove the connection pipe
clamp.
Remove 3 screws xing evaporator assy.
Adjust the position of connection pipe
on evaporator slightly and then lift the
evaporator upwards to remove it.
Remove the screw xing step motor and
then remove the step motor.
Screws
Screws
Screws
Step motor
To Next Page
