88
Installation and Maintenance
Service Manual

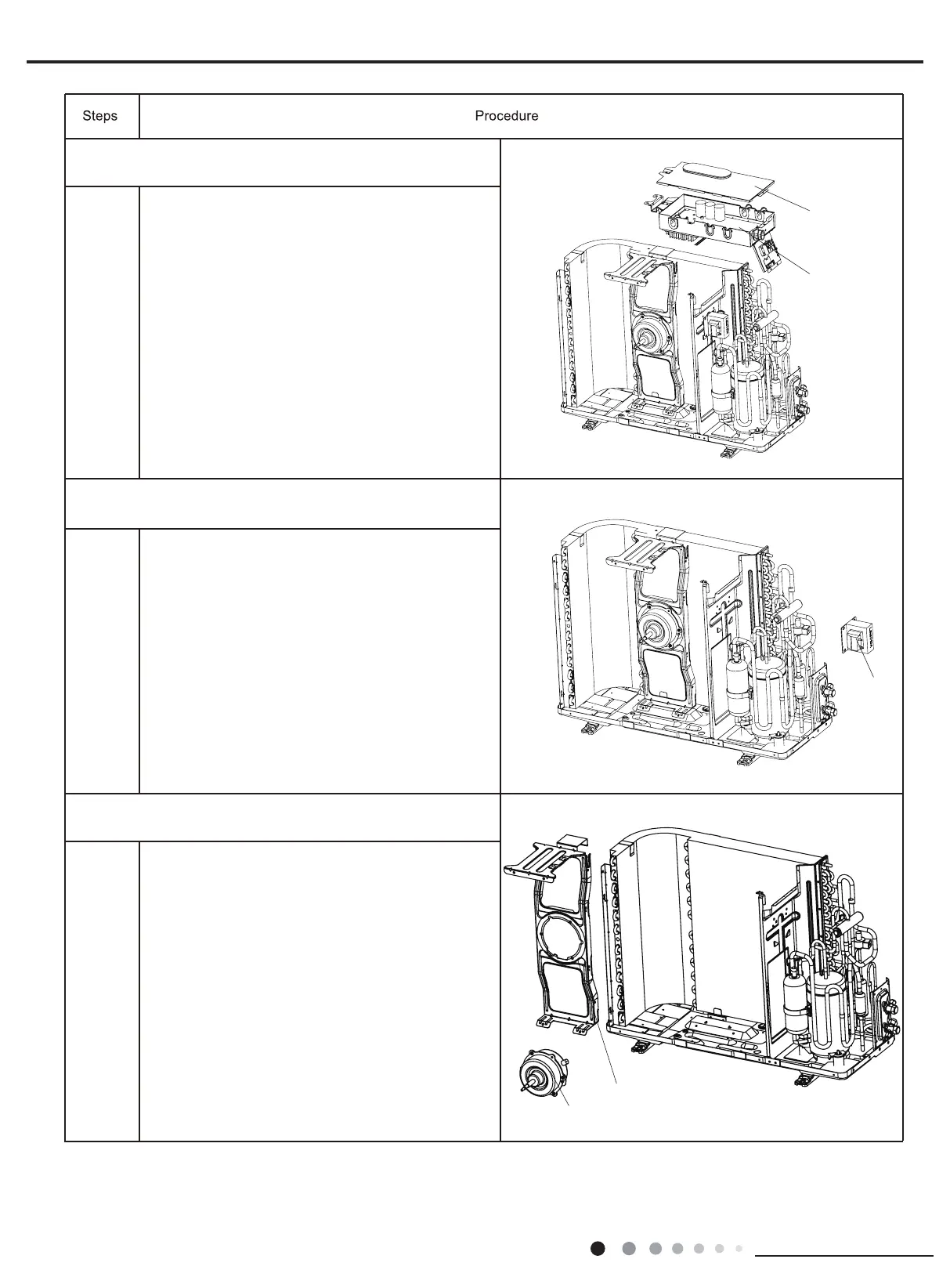

Remove screws fixing electric box assy and
mid-isolation board, loosen the bonding tie, pull off the
wiring terminal, lift to remove the electric box assy.
9. Remove electric box assy
electric boxassy
cover
electric box
Remove the screws fixing electric reactor, to remove
the electric reactor.
10. Remove electric reactor
electric
reactor
Remove the four tapping screws fixing motor, pull out
11. Remove
motor and motor support
the contact tag of motor wiring, to remove the motor.
Remove the two tapping screws fixing motor support
and chassis, lift to remove the motor support.
motor support
motor
To Next Page
