26
Technical Information
Service Manual
4
5
6
7
8
9
1011
12
13
13
1
2
3
No. Name
1Interface of compressor wire
2Reactor wiring terminal 2
3Reactor wiring terminal 1
4Terminal of chassis electric heater
5
6
4-way valve terminal
7Neutral wire
Grounding wire
8Communication wire
9
Live wire
10 Terminal of electronic expansion valve
11 Interface of temperature sensor
12 Overload interface of compressor
13
Terminal of outdoor fan

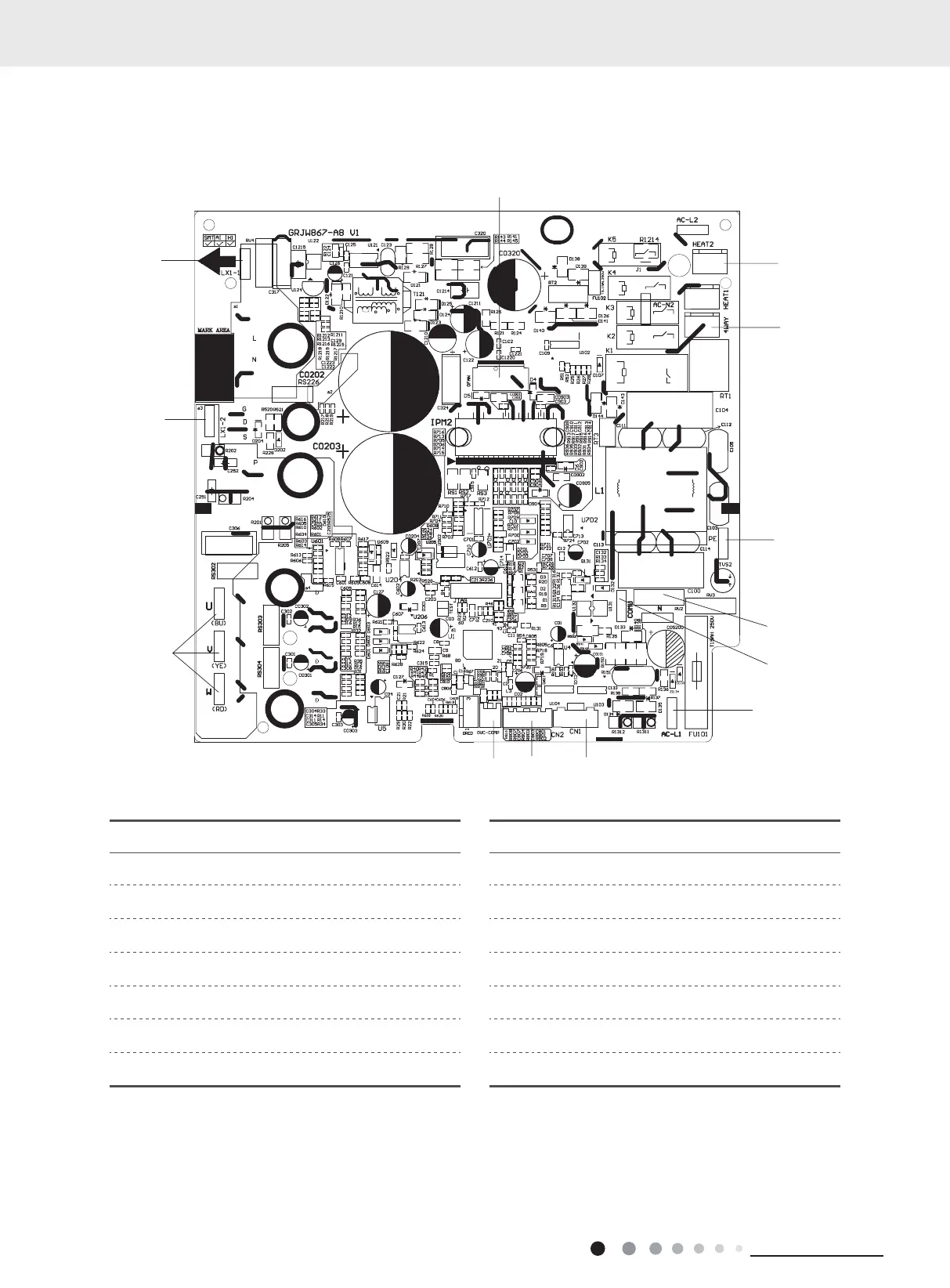

● Top view
● Bottom view
3VIR09HP230V1AO 3VIR12HP230V1AO
5. Electrical Part
No. Name No. Name
1 Interface of compressor wire 8 Communication wire
2 Reactor wiring terminal 2 9 Live wire
3 Reactor wiring terminal 1 10 Terminal of electronic expansion valve
4 Terminal of chassis electric heater 11 Interface of temperature sensor
5 4-way valve terminal 12 Overload interface of compressor
6 Grounding wire 13 Terminal of outdoor fan
7 Neutral wire
