Technical Information
Service Manual

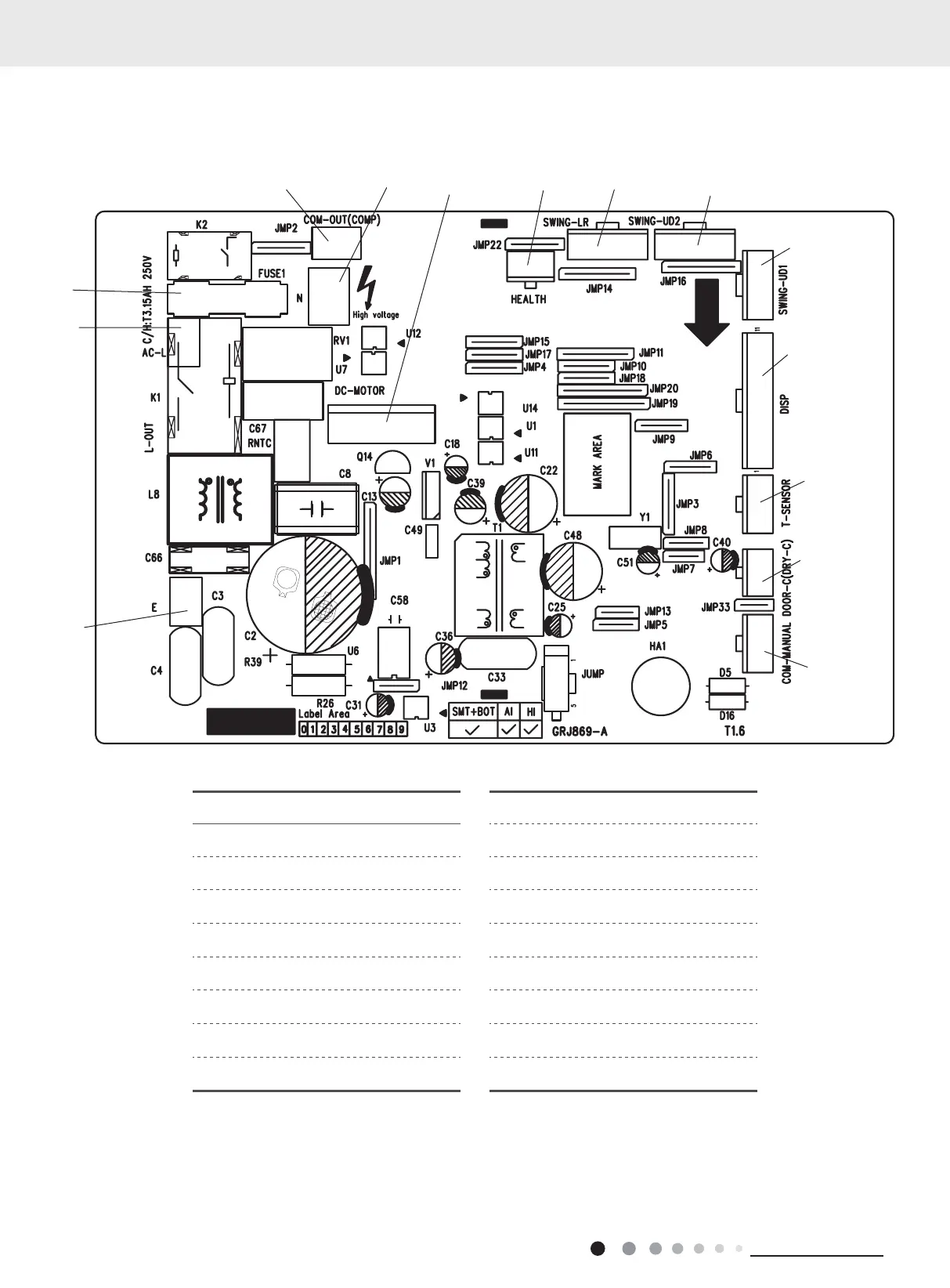

5.2 PCB Printed Diagram
Indoor Unit
5. Electrical Part
No. Name No. Name
1 Fuse 9 Up&down swing interface 1
2 Live wire 10 Interface of display board
3 Neutral wire 11 Interface of temperature sensor
4 Communication wire 12 Door control
5 DC fan interface 13 Wired controller
6 Interface of cold plasma 14 Earthing wire
7 Left&right swing interface 15 Terminal of live wire
8 Up&down swing interface 2
1
3
45
67
8
9
10
11
12
13
14
15
