Greenheck FGI Assembly Instructions

Fabra Hood • Form F 3
®
Step 6 – Attach END ANGLE to the ends of SIDE CHANNELS
Attach the end angle (hand tight) to the ends of the side filter channel assemblies and side channels using four
5/16 x 1 weldstud fasteners per end angle, see Figure 5. In addition, units with throat widths greater than 36 inches
will require filter end channel assemblies, see Figure 5, Detail D. Fasten filter end channel assembly (hand tight) to
the end closure angle and end angle, using two 5/16 x 1 weldstud fasteners per assembly.

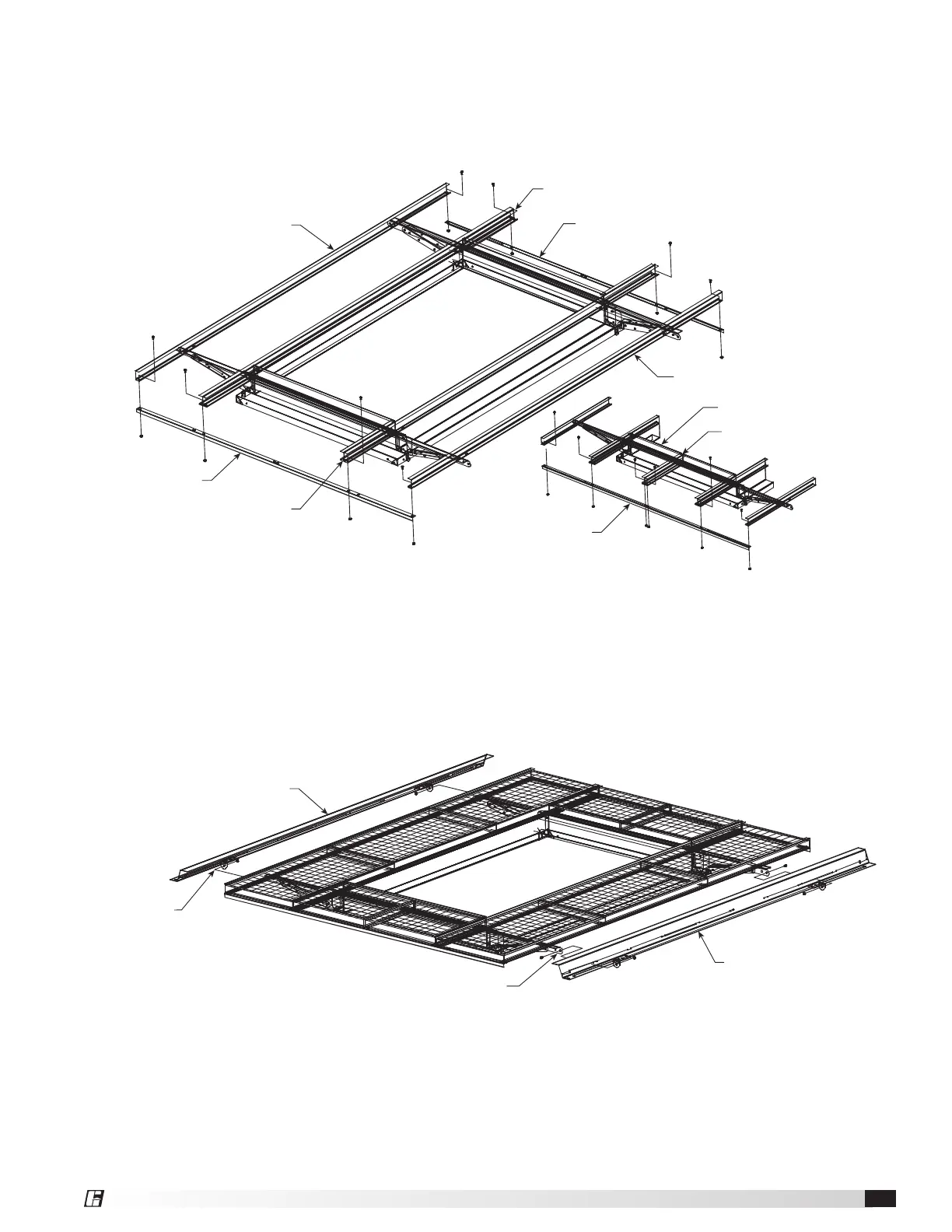

Figure 5 Fabra hood Form F 471322
END ANGLE
FILTER SIDE CHANNEL
ASSEMBLY
FILTER END CHANNEL
ASSEMBLY
END CLOSURE ANGLE
DETAIL D
FILTER SIDE CHANNEL
FILTER SIDE CHANNEL
ASSEMBLY
END ANGLE
END ANGLE
FILTER SIDE CHANNEL
Step – 7 Install FILTERS and tighten fasteners
Slide filters in from both ends of unit. Tighten all filter channel and end angle fasteners only after filters are in place.
Step 8 – Attach HOOD RAIL ASSEMBLY to HOOD SUPPORT ANGLES
Attach the hood rail assembly to the hood support angles using 3/8 x 3/4 inch bolt with 3/8 inch Nyloc nut at each
attachment point, see Figure 6.
NOTE: Fasteners should be hand tightened only until Step 10.
Figure 6 Fabra hood Form F 471322
HOOD RAIL ASSEMBLY
NYLOC NUT
HOOD SUPPORT ASSEMBLY
HOOD RAIL ASSEMBLY
Figure 6
Figure 5
