Fabra Hood • Form F4
Step 9 – Assemble HOOD PANELS to HOOD RAIL ASSEMBLY
Assemble hood panels to hood rail assembly. The hood end assembly with the “male rib” is to be installed first, see
Figure 7, Detail E. Place the remaining hood panels in place, interlocking panels as you go, see Detail E. Secure each
hood panel to the hood rail assembly as it is put in place using four 12 x 3/8 inch sheet metal screws with sealing
washers per hood panel. The hood end assembly with the “female rib” is to be installed last.
NOTE: Hoods over 9 feet wide are supplied with special hood clips. See Detail F, hood panels have predrilled holes
for hood clip installation. Install clips as hood panels are being put in place, using one 12 x 5/8 inch sheet metal
screw with sealing washer per hood clip. To install clips in the last panel, remove the end filters to provide access to
the underside of the hood. The filters can be easily replaced after the hood is completely assembled.

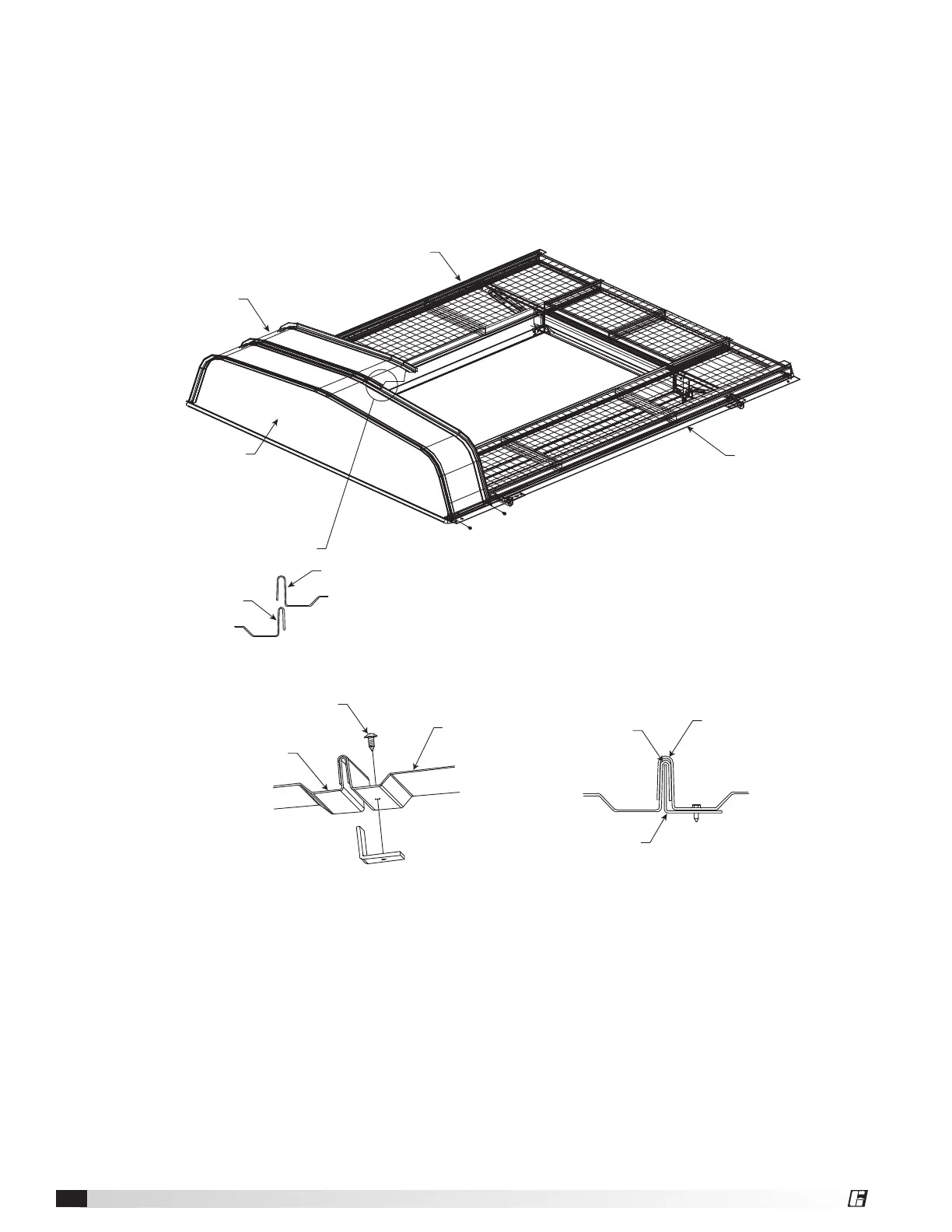

Figure 7 Fabra hood Form F 471322
DETAIL E
HOOD RAIL
ASSEMBLY
HOOD PANEL
HOOD END ASSEMBLY
(MALE RIB)
HOOD RAIL
ASSEMBLY
MALE RIB
FEMALE RIB
DETAIL F
HOOD PANEL
(MALE RIB)
NO. 12 x 5/8 SHEET METAL SCREW
WITH SEALING WASHER
HOOD PANEL
(FEMALE RIB)
MALE RIB
FEMALE RIB
HOOD CLIP
Step 10 – Tighten fasteners
Tighten all pivot bracket fasteners.
NOTE: There may be extra fasteners.
