4
Direct Drive

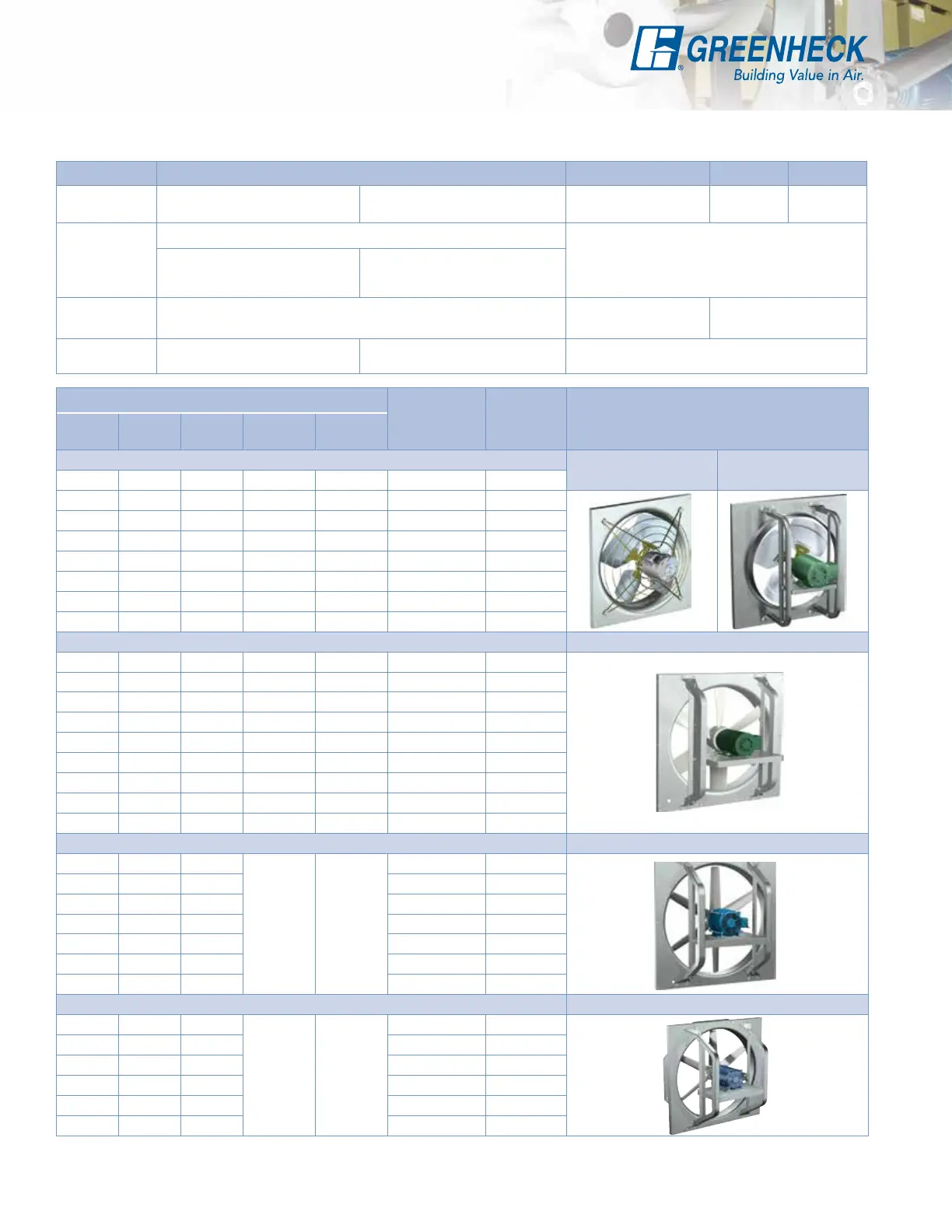

Construction and Material Data
All direct drive models are available in either exhaust or supply arrangements. Model SCR3 is the reversible fan model.
Level 1 Level 2 Level 3 Reversible
Model Sizes
8 - 12: D, G & E motor speeds
(see page 24 for motor speed chart)
12 - 24: A, B & C motor speeds
(see page 24 for motor speed chart)
16 - 54 20 - 54 24 - 54
Panel/Drive
Frame
Galvanized steel with one-piece drawn venturi
Galvanized steel with one-piece drawn venturi,
bolted structural steel channels and motor plate
(paint optional)
Zinc plated, heavy welded wire
guard/support structure
(paint optional)
Bolted structural steel channels
and motor plate (paint optional)
Propeller
Aluminum blades riveted to a steel hub
Heavy duty, welded and
gusseted painted steel
Heavy duty, cast
aluminum
Motors
Heavy duty, permanently
lubricated, sleeve bearing type
Ball bearing type
Heavy duty, permanently lubricated,
ball bearing type
Material Gauges
Max. Motor
Frame Size
Approx.
Weight (lbs.)
Models
Fan
Size
Fan
Panel
Drive
Frame
Prop Hub Prop Blade
Level 1, Models: S1
Model S1
Sizes 8 to 12
Model S1
Sizes 12 to 24
8 18 -** - - 48 15
10 18 -** - - 48 16
12 18 14**
/
* - - 48 20
14 18 14* - - 56 27
16 18 14* - - 56 30
18 18 14* - - 56 35
20 18 14* - - 145T 39
24 18 14* - - 145T 45
Level 2, Models: S2 Model S2
16 18 14 14 16 56 40
18 18 14 14 16 56 45
20 16 12 14 16 145T 60
24 18 12 14 16 145T 85
30 16 12 12 16 184T 130
36 16 12 12 16 215T 230
42 14 10 10 14 254T 290
48 14 10 10 14 254T 375
54 14 10 10 14 256T 465
Level 3, Models: SC3 Model SC3
20 16 12
Cast
Aluminum
Prop
Cast
Aluminum
Prop
145T 55
24 18 12 184T 80
30 16 12 184T 125
36 16 12 215T 220
42 14 10 254T 290
48 14 10 254T 386
54 14 10 256T 477
Reversible, Model SCR3 Model SCR3
24 16 12
Cast
Aluminum
Prop
Cast
Aluminum
Prop
184T 80
30 16 12 184T 125
36 16 12 215T 220
42 14 10 254T 290
48 14 10 254T 386
54 14 10 256T 477
* A, B and C motor speeds only. Approximate weight does not include accessories.
** D, G and E motor speeds have a wire frame rather than a drive frame.
