Greenheck SP-AP0511W User Manual

Ceiling Exhaust Fans 7
®
Fig.11
Fig.10
Fig.9
Grille
Ceiling
Slot
Mounting
Spring
Fig.11
Fig.10
Fig.9
Grille
Ceiling
Slot
Mounting
Spring
CAUTION
Mount carefully so that light wiring is not pinched.
Fig.6
Circular duct
Duct tape
Fig. 7a
Fig. 7b
Fig.8
Attach cable clamp to Knockout Plate.
Knockout Plate mounts to outside of
housing and may be oriented as desired.
Connect wires with UL approved connectors.
Insert Screw from Parts Bag
Align Knockout Plate to Housing
Black
Red
Green
Wire nuts
White
Wire Nuts
inches (mm)
Caulk
Ceiling
Caulk
10-3/8 (265)
10-3/8 (265)
1
2
3
4
Black Wires
White Wires
Green Wires
Red Wires
IMPORTANT
After finishing the ceiling
work, fill gap between
flange and ceiling with
caulk or other sealant
to prevent airleakage.
Fig.11
Fig.10
Fig.9
Grille
Ceiling
Slot
Mounting
Spring
Fig. 9
Fig. 10
Fig. 11
Fig. 8
Fig.6
Circular duct
Duct tape
Fig. 7a
Fig. 7b
Fig.8
Attach cable clamp to Knockout Plate.
Knockout Plate mounts to outside of
housing and may be oriented as desired.
Connect wires with UL approved connectors.
Insert Screw from Parts Bag
Align Knockout Plate to Housing
Black
Red
Green
Wire nuts
White
Wire Nuts
inches (mm)
Caulk
Ceiling
Caulk
10-3/8 (265)
10-3/8 (265)
1
2
3
4
Black Wires
White Wires
Green Wires
Red Wires

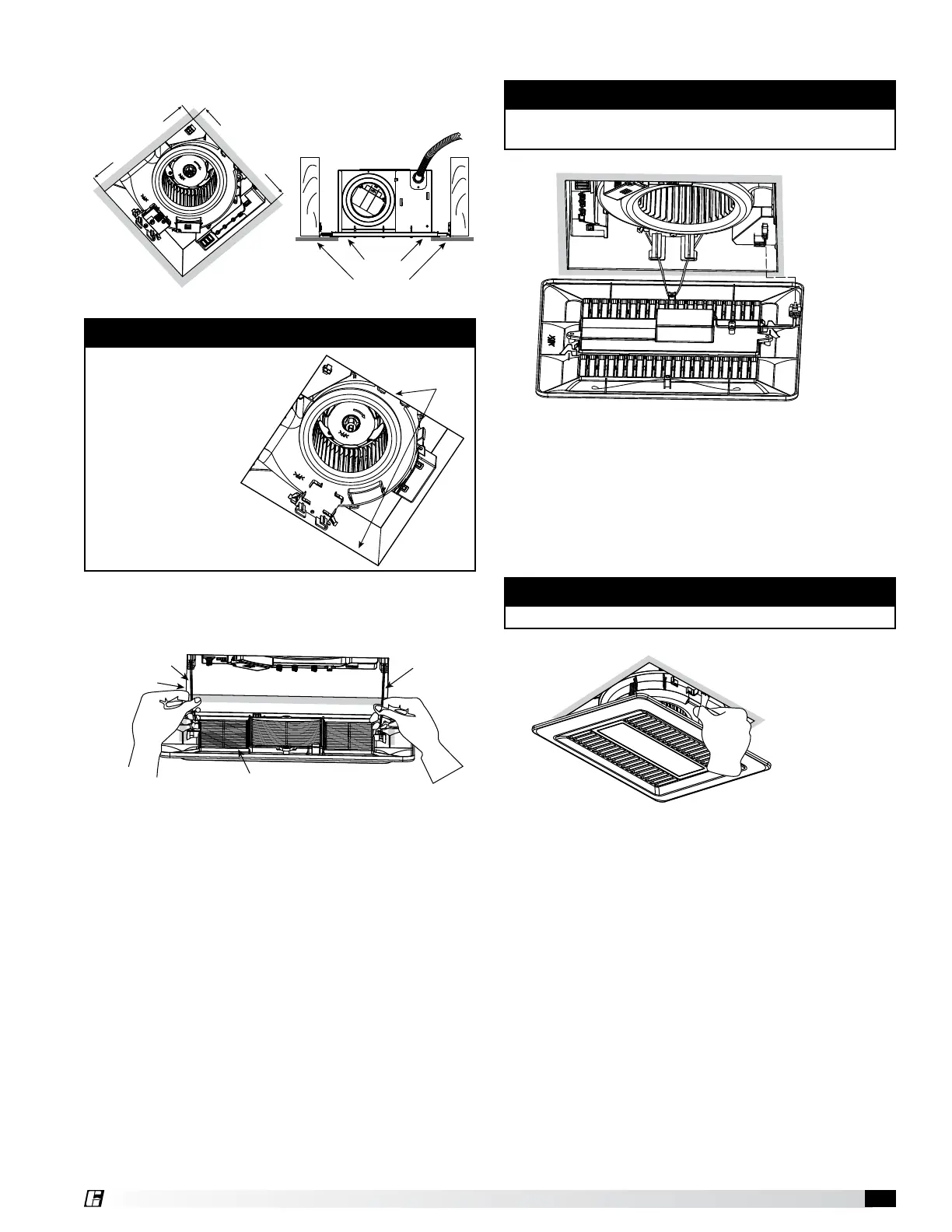

a. Insert the grille mounting spring on the wiring side
into the slot. See Fig. 10
b. Insert the plug into the receptacle in the housing
and insert the other mounting spring into the slot as
shown and mount grille to fan body.
See Fig. 10 and Fig. 11
10. For model SP-AP0511WL, with light
CAUTION
• Before turning on the light, make sure the plug is
fully engaged.
9. Insert mounting springs into slots and mount grille to
fan body. See Fig. 9
8. Finish ceiling work. Ceiling hole to be aligned with
the inside edges of the flange. See Fig. 8
