Greenlee C3 Auto Whip Clad Cable Cutter User Manual

C3 Auto Whip Clad Cable Cutter
Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
10

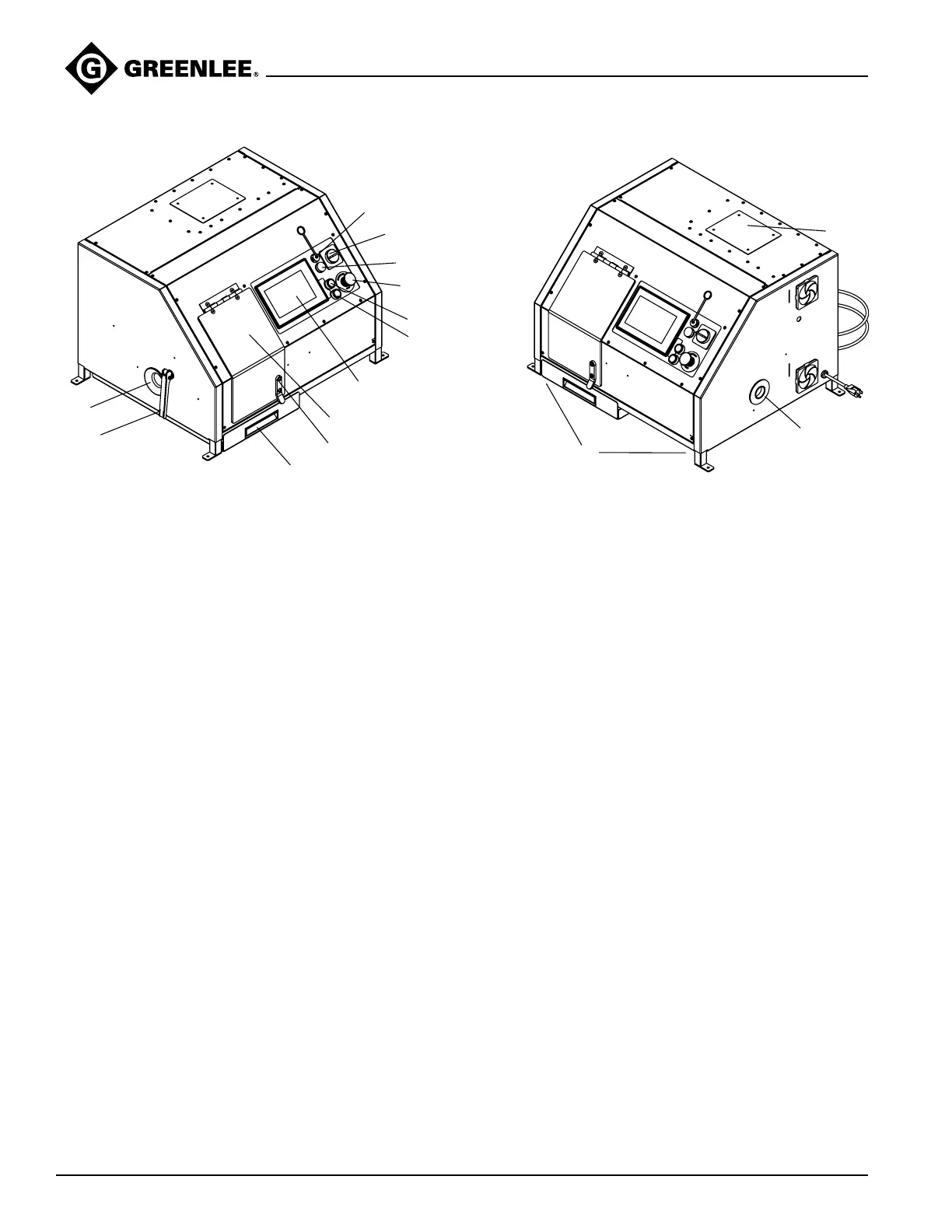

1. HMI touch screen
2. Emergency stop push switch
3. Lockout/tagout switch
4. Yellow release switch
5. Green "start" switch
6. Green pilot light
7. USB port
8. Polycarbonate viewing shield/access door
1
2
3
4
5
6
7
8
12 14
13
15
9
10
11
9. Removable chip tray
10. Cable feed tensioner lever
11. Input horn
12. Handle and safety interlock
13. Output tube
14. Lift points (Chip tray removed)
15. Circuit breaker access panel
Features
• Automated notching and cutting stations with
automatic cable feed.
• HMI touch screen for programming
whip congurations.
• *Cuts steel and aluminum clad type AC. BX, MC,
FMC cable with outside diameter of 1/2" to 1".
• USB port to upload custom whip conguration.
• Memory to store up to 48 "cable types" of cable
diameter and notching depth.
Not intended for PVC coated clad cable, liquid-light conduit, or
flexible PVC conduit.
• Memory to store up to 96 "whip congurations" of a
specied cable type, whip length, lead strip length,
and tail strip length.
• Memory to sore and run a production job with up to 96
whip ends of different lengths from one reel of cable.
• Cuts up to 9,999 whips of a given diameter
and length.
• Keeps track of cable length remaining on the reel.
• Produces whip lengths from 1' (.3 m) to 83'
(25 m) long.
Identification

Greenlee C3 Auto Whip Clad Cable Cutter Specifications

General

Brand	Greenlee
Model	C3 Auto Whip Clad Cable Cutter
Category	Cutter
Language	English
