GreenWorks 2540802 - Exploded View

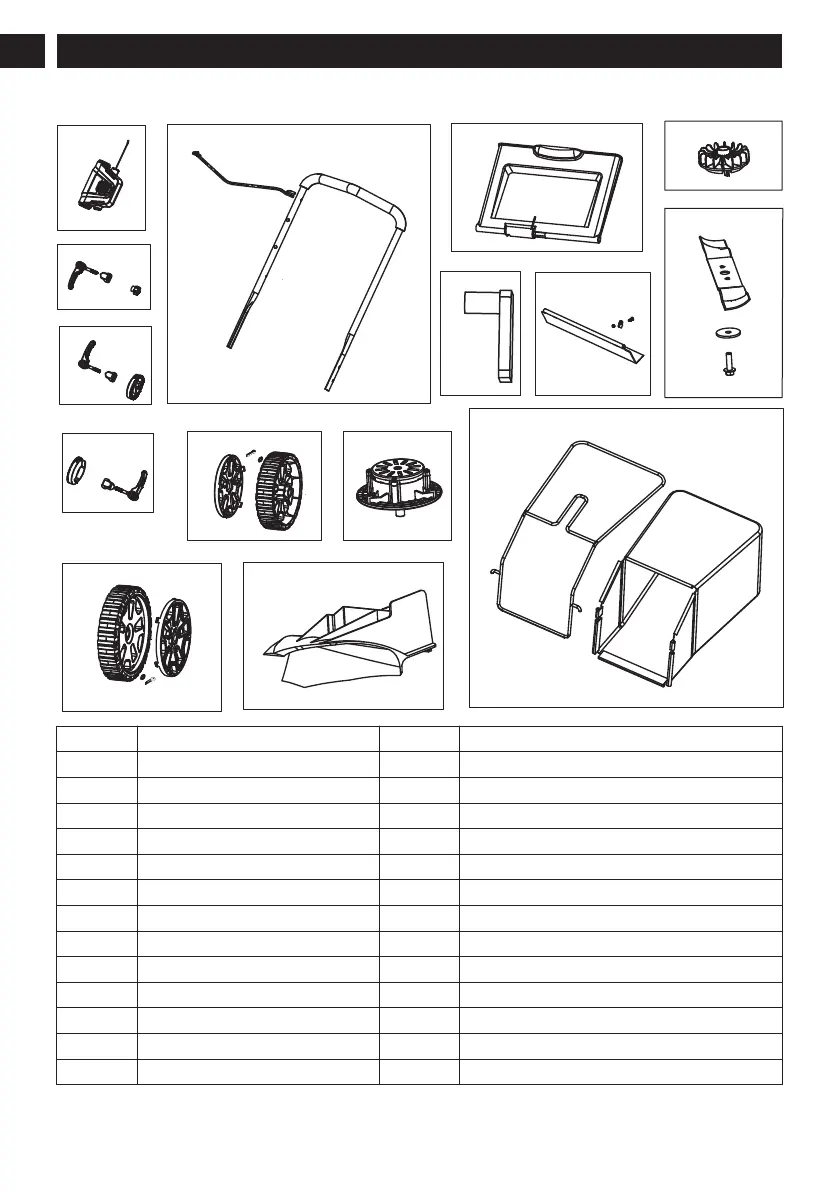

12 EXPLODED VIEW
1
2
3
5
6
8
9
10
11
12
13
14
7
15
4
No. Part No. Qty Description
1 R0204755-00 1 Upper control assembly
2 R0201858-00 2 Upper handle cam lock and knob
3 R0204756-00 1 Lower handle quick-release lever(right)
4 R0204757-00 1 Lower handle quick-release lever (left)
5 R0204758-00 1 Upper handle
6 R0204759-00 1 Rear cover assembly
7 R0204760-00 1 PCBA
8 R0204537-00 1 Rear shield
9 R0204761-00 1 Fan
10 R0204762-00 1 Blade kit assembly
11 R0204763-00 2 Front wheel assembly
12 R0204764-00 2 Rear wheel assembly
13 R0204765-00 1 Motor
14
