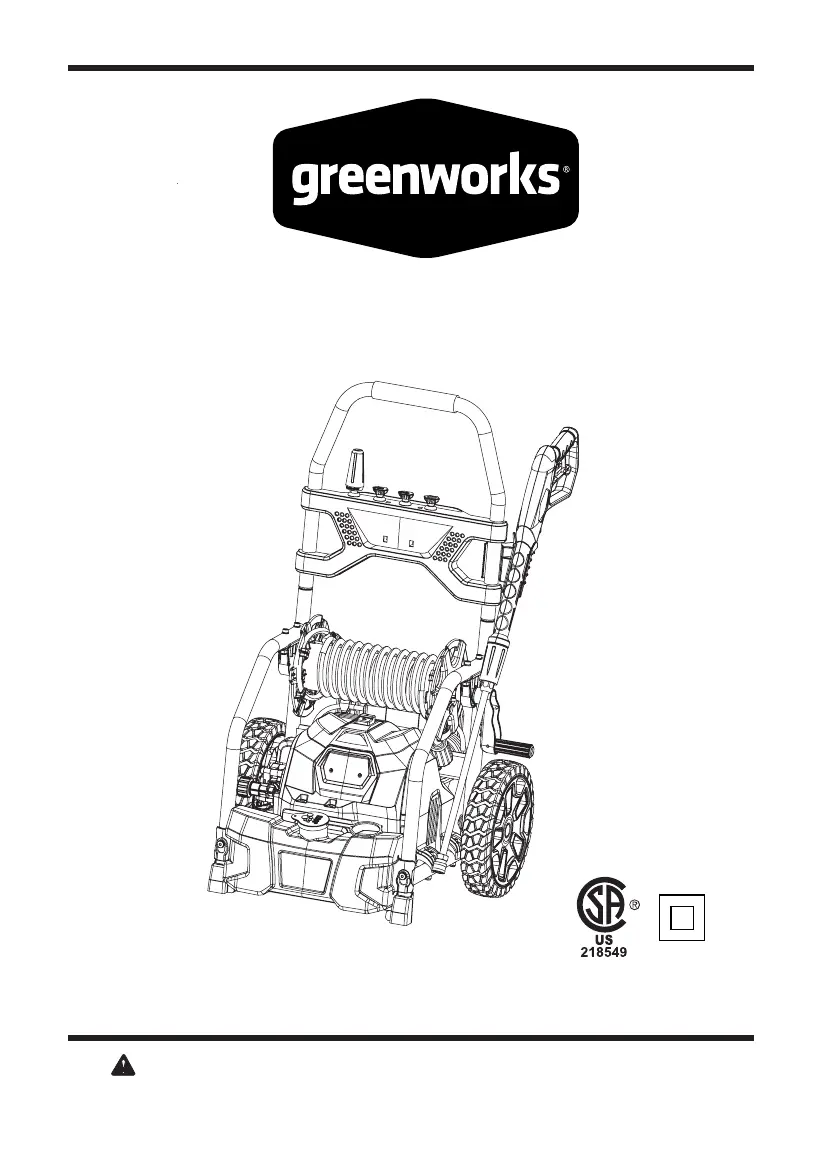

GreenWorks GPW1954 User Manual (English)

Questions and Answers:

G
Gabriel ReidAug 6, 2025
Why won't my GreenWorks GPW1954 Pressure Washer motor start?
- P
  penningtonstevenAug 6, 2025
  There are several reasons why the motor on your GreenWorks Pressure Washer might not start: * The On/Off switch may be in the “OFF” (O) position. If so, set the switch to the “ON” ( | ) position. * The power cord may not be plugged in. Ensure the power cord is properly plugged into an outlet. * The electrical outlet may not be supplying enough power. Try a different outlet. * The pressure washer circuit breaker might have tripped. Allow the unit to cool down, and then restart it. * The power switch is ON, but the gun trigger is not squeezed. With the power switch ON, push in on the gun trigger to engage the AUTO ON switch.
J
John HuffmanAug 12, 2025
Why GreenWorks GPW1954 unit does not reach high pressure?
- H
  Heidi Williams DDSAug 12, 2025
  If your GreenWorks Pressure Washer isn't reaching high pressure, here are a few things to check: * The diameter of your garden hose might be too small. Replace it with a 1” (25 mm) or 5/8” (16 mm) garden hose. * The water supply could be restricted. Inspect the garden hose for kinks, leaks, or blockages. * There might not be enough water supply. Fully open the water source. * A pressure tip might not be installed on the wand assembly. Add the desired pressure tip to the end of the wand. * The water intake filter could be clogged. Remove the filter and rinse it in warm water.
E
Elizabeth KerrAug 18, 2025
What to do if my GreenWorks GPW1954 Pressure Washer motor buzzes but fails to run?
- I
  Isaac GreenAug 18, 2025
  If your GreenWorks Pressure Washer motor buzzes but doesn't run, consider these potential causes: * The supply voltage may be below the minimum. Verify that only the pressure washer is running on this circuit. * The system might have residual pressure. Turn the unit “OFF”, squeeze the trigger on the spray wand to release the pressure, and then turn the unit “ON” again. * Voltage loss may be due to an extension cord. Unplug any extension cords and plug the unit directly into the outlet. * Residual friction among components. Disconnect water supply and power ON for 2 to 3 seconds, repeat couple times or until the motor starts.
F
Frederick LeAug 25, 2025
How to fix no water coming out of my GreenWorks GPW1954 Pressure Washer?
- T
  Terri LawsonAug 25, 2025
  If no water is coming out of your GreenWorks Pressure Washer, check the following: * Ensure the water supply is turned ON. * Check for any kinks in the garden hose and remove them.
S
Sandra RyanAug 30, 2025
What to do if my GreenWorks GPW1954 output pressure varies high and low?
- A
  Amanda WrightAug 30, 2025
  If the output pressure of your GreenWorks Pressure Washer is fluctuating, consider the following: * Ensure there is enough inlet water supply by turning the water on fully and checking the garden hose for any kinks, leaks, or blockages. * The pump may be sucking air. Check that all hoses and fittings are airtight. Turn the machine “OFF” and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the spray tip. * The water inlet filter may be clogged. Remove the filter and rinse it in warm water. * The supply voltage may be below the minimum requirement. Verify that only the pressure washer is running on the circuit. * The gun, hose, or power spray tip could be calcified. Run distilled vinegar through the detergent tank.

GreenWorks GPW1954 Specifications

General

Power Source	Electric
Pressure	1900 PSI
Flow Rate	1.2 GPM
Motor	13 Amp
Hose Length	25 ft
Power Cord Length	35 ft
Nozzle Types	25°, 40°, Soap

Summary

General Safety and Extension Cords

General Safety Precautions

Basic safety rules for operating the pressure washer, including supervision and operator awareness.

Extension Cord Safety

Proper selection and use of extension cords for safe operation of the pressure washer.

Symbols Explained

Electrical and Power Symbols

Explanations of electrical symbols like Volts, Amps, Hz, Watts, AC/DC, and per minute.

Hazard and Safety Symbols

Meanings of hazard symbols like Safety Alert, Eye Protection, Risk of Injection, Kickback, and Electric Shock.

Service and Safety Warnings

Service Requirements

Emphasizes using qualified technicians and identical replacement parts for servicing.

Operational Safety Warnings

Warnings about reading the manual thoroughly and using safety goggles for eye protection.

Electrical Connection Details

Power Requirements

Specifies power requirements (120V, 60Hz, AC) and cautions against using DC power.

Drip Loop Installation

Recommends a drip loop to prevent water from flowing along the power cable.

Know Your Pressure Washer

Product Familiarization

Encourages understanding features and safety rules before operating the pressure washer.

Key Components Overview

Identifies key parts like ON/OFF Switch, Detergent Tank, Trigger, and Wand Assembly.

Packing List

Included Components List

Lists parts, ERP numbers, figures, and quantities included in the package.

Assembly: Unpacking and Warnings

Unpacking Procedure

Steps for carefully removing and inspecting product and accessories from the box.

Critical Assembly Warnings

Crucial warnings about using correct parts and completing assembly before power connection.

Assembly: Wheels and Panel

Assembling the Wheels

Instructions for attaching wheels using axles, sleeves, and cotter pins.

Front Panel and Gun Holder

Guides on attaching the front panel and gun holder using screws.

Assembly: Handle and Wand

Installing the Handle

Steps to secure the handle into the frame using the lock button.

Assembling the Spray Wand

Instructions for connecting and securing the spray wand to the trigger handle.

Assembly: High Pressure Hose

Connecting High Pressure Hose

Steps to connect the high pressure hose to the trigger handle and pressure washer.

Assembly: Soap Tank and Hose Reel

Attaching the Soap Tank

Instructions for mounting the soap tank and routing the detergent hose.

Using the Hose Reel

Procedures for removing and attaching the high-pressure hose to the reel.

Assembly: Garden Hose Connection

Connecting the Garden Hose

Steps and precautions for connecting the garden hose to the water intake.

Operation: Applications and Detergent

Product Applications

Lists various cleaning tasks the pressure washer can perform.

Detergent Adding and Use

Guidelines for adding and using detergents for optimal cleaning.

Operation: Soap Application and Start-Up

Soap Application Procedure

How to apply soap using the black soap spray tip.

Starting the Pressure Washer

Step-by-step guide to safely start the pressure washer.

Operation: Motor Control

Motor Starting and Stopping

Instructions for using the ON/OFF switch and trigger.

Auto Start/Stop Feature

Explanation of the pressure washer's auto start/stop functionality.

Operation: Spray Tips

Using Spray Tips

Guide on selecting and attaching different spray tips for various cleaning tasks.

Spray Tip Application Chart

Details the function and application of green, white, black, and turbo nozzles.

Operation: Spray Wand Trigger

Spray Tip Safety

Warnings about changing spray tips and pointing the wand.

Trigger and Lock-out Usage

Instructions on operating the trigger and engaging the safety lock-out.

Operation: Cleaning and Moving

Operating the Pressure Washer

Steps for cleaning surfaces with detergent and rinsing.

Moving the Pressure Washer

Instructions on how to safely move the unit.

Operation: Power Cord Storage

Power Cord Storage Method

Guide on wrapping and securing the power cord on the unit.

Maintenance

General Maintenance Warnings

Warnings regarding replacement parts and cleaning agents.

Spray Tip Maintenance

Procedure for cleaning clogged or dirty spray tips.

Maintenance: Storage and Shutdown

Storing the Pressure Washer

Instructions for storing the unit in a dry, frost-free area.

Quick Winterizing Procedure

Steps to protect the pressure washer from winter damage.

Shutting Down and Cleaning

Steps for safely shutting down and cleaning the unit after use.

Troubleshooting

Motor Not Starting Issues

Possible causes and solutions for the motor failing to start.

Low Pressure Issues

Troubleshooting steps for low or varying pressure output.

Motor Buzzing or No Water

Solutions for motor humming without operation or lack of water supply.

Warranty Information

Product Warranty Coverage

Details the one-year warranty against defects in materials and workmanship.

Items Not Covered By Warranty

Lists conditions that void the warranty, such as misuse or neglect.

Warranty Service Contact

Contact information for warranty service and responsibility for transportation charges.

Exploded View

Component Diagram

A visual breakdown of the pressure washer's parts with numerical labels.

Parts List

Component Identification

Lists item numbers, part numbers, descriptions, and quantities for components.

Parts List: Additional Components

Further Component Details

Continues the list of parts, item numbers, descriptions, and quantities.
