4.3.3 Relax position
Pressing the two seat inclination adjustment buttons (15) simultaneously brings the couch in a comfortable reclin-
ing position for the patient.
Pressing the buttons for the relax position requires increased attention from the user, as different actuators are
activated simultaneously. All lying surfaces (backrest, seat surface and leg section) move simultaneously to the
fixed position at maximum speed.
The backrest lowers slightly.
The seat surface is slightly raised.
The leg section swivels upwards by a predetermined amount.
Careless handling can endanger the patient and third parties or lead to damage to objects or the
couch.
The seat height (not 4223000/4223100) and the electric adjustment drive of the footrest
(only 4225000/4225100), if present, remain in the existing position.
The position is permanently stored in the control unit and cannot be changed.

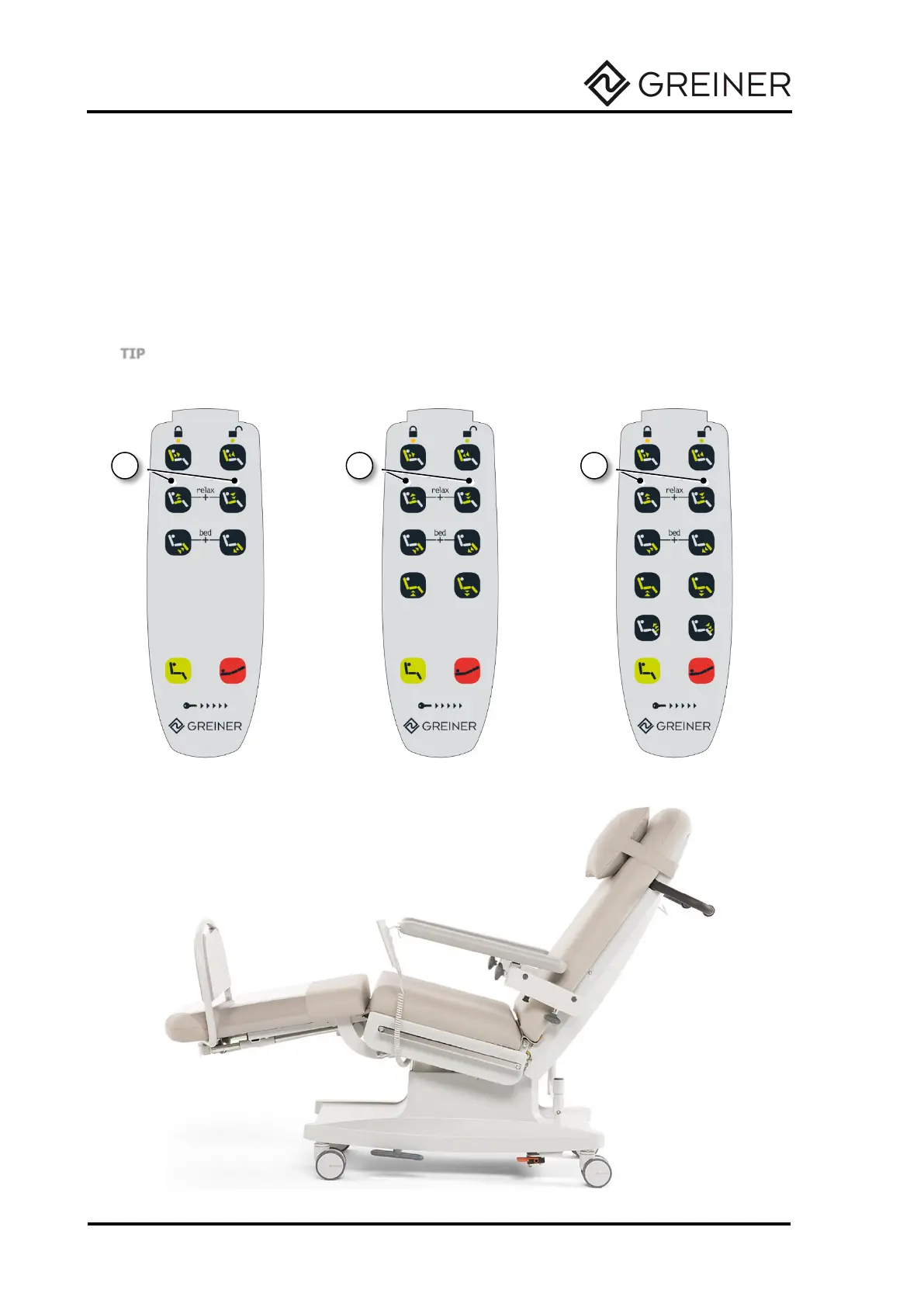

Fig. 34 Button combination for relax position
15. Relax position: seat inclination - up+down
