4.6 Foot switch

The couch can also be equipped with a foot switch (1).

Pressing the orange foot switch brings the couch directly into the shock position (Trendelenburg position) (see

4.3.5 Shock position).

TIP

When the hand control is locked, the foot switch for moving to the shock position (Trendelenburg

position) is also locked (see 4.3.1 Unlocking and locking the hand control).

1. Foot switch

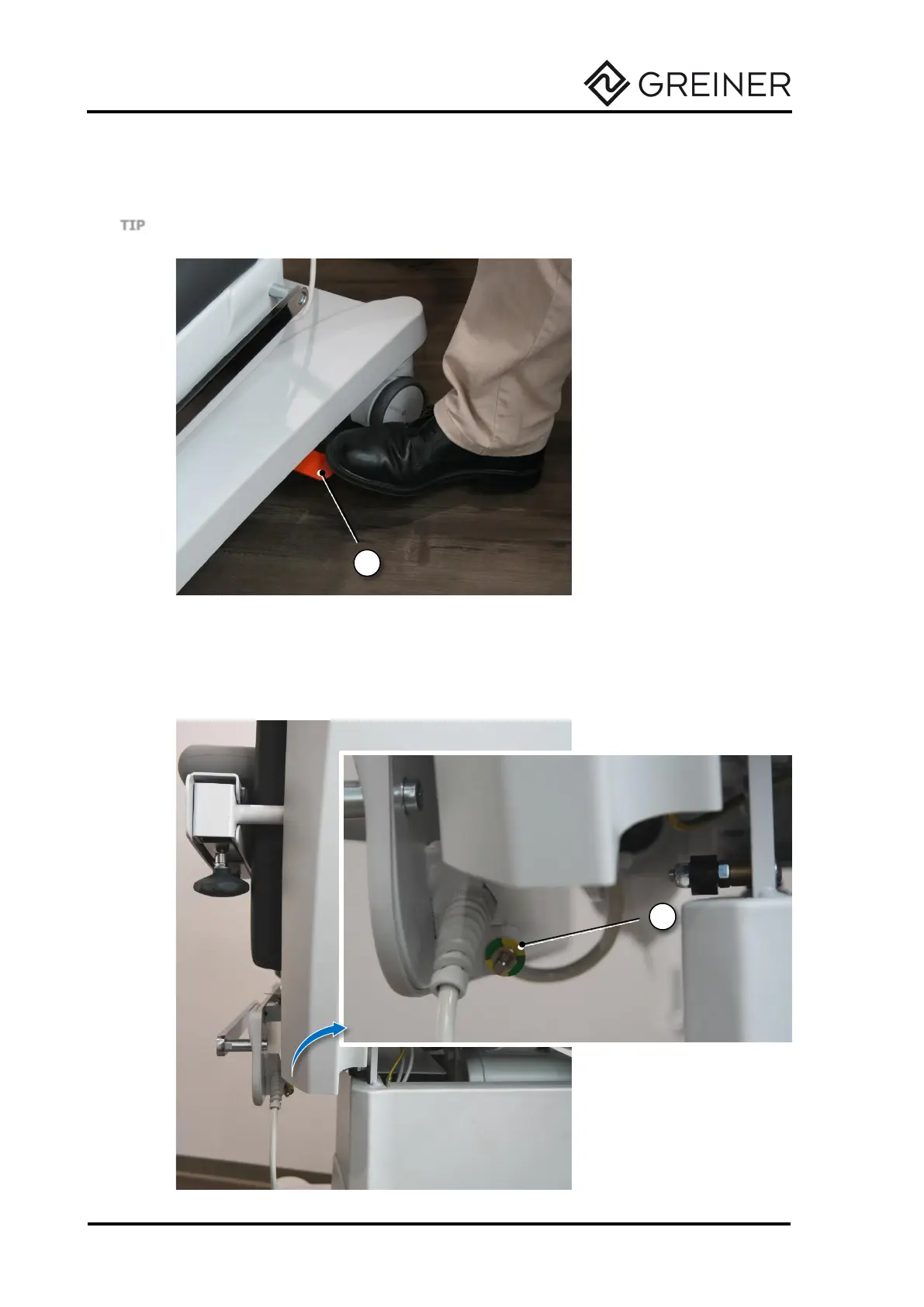

Fig. 40 Foot switch

4.7 Equipotential bonding pin

The equipotential bonding cable connects the connection pin (1) on the couch to the connection on the wall strip.

To do this, place the plug completely onto the corresponding connection pin against the noticeable resistance. To

remove, simply disconnect the plug.

1. Connection pin

Fig. 41 Equipotential bonding pin
