Instruction manual - MULTILINE NEXT DC
GREINER_multiline_next_dc_manual_EN_4225502_rev_2.docx
9.4 Technical data

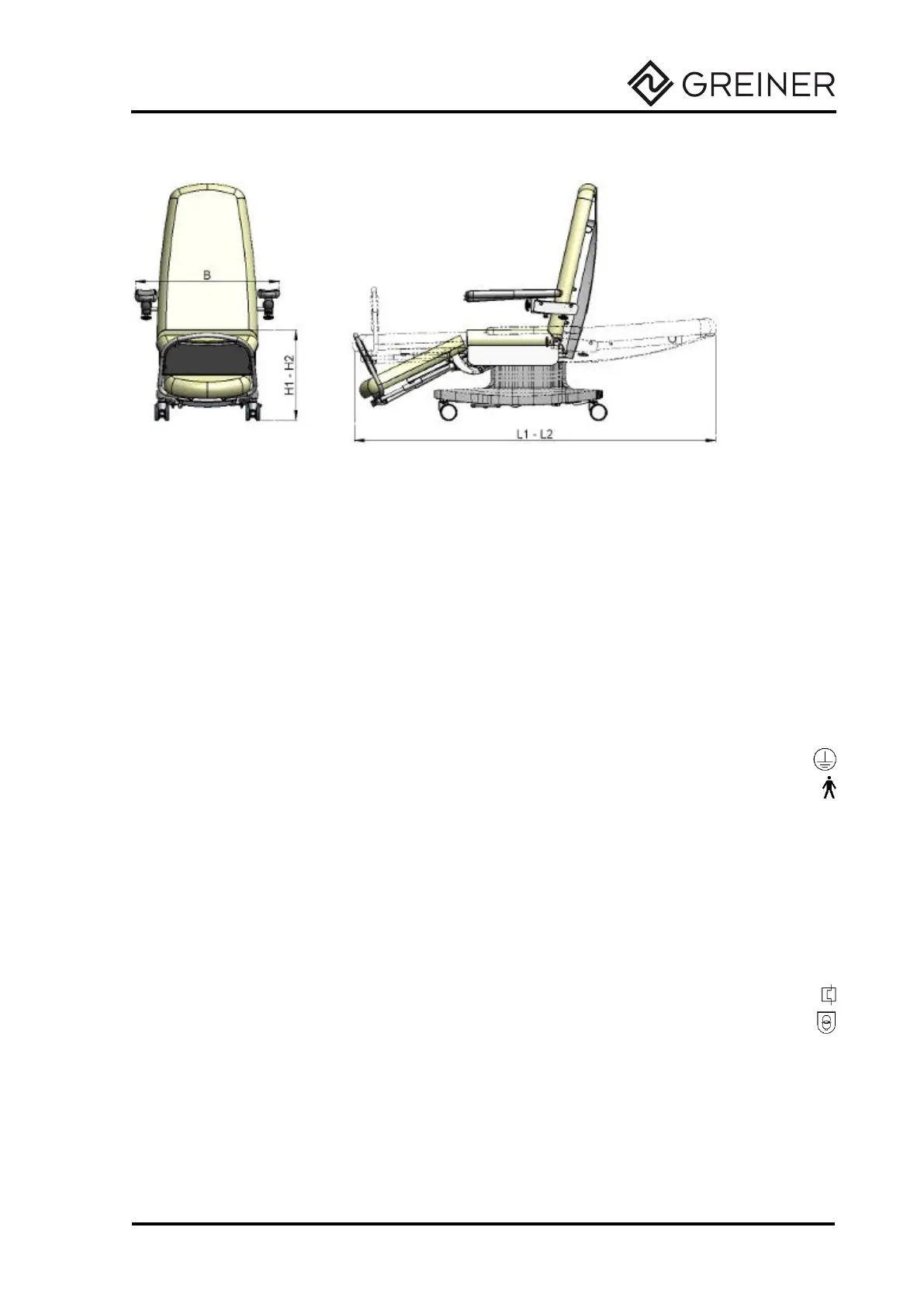

Dimensions and weights
Width B: 80 cm
Length in basic position L1: 110 cm
Length in bed position L2: 192 cm
Lying surface width: 60 cm
Length of lying surface: 220 cm
Entrance height H1: 54 cm
Height adjustment H2: 21 cm (54 - 75 cm)
Backrest inclination: -5° - 78°
Seat inclination: 0° - 22°
Inclination of leg section: -25° - 0°
Castor: 10 cm
Empty weight of couch depending on model: 105 - 110 kg
Safe working load: 220 kg
Electrical data
Protection class I:
Application Part Type B (special protection against electric shock):
Protection type: IPX4
Control unit [CB16]
Bus version: OpenBus™
Number of channels depending on version: 3 - 5
Mains connection [U in]: 230 V AC, 50/60 Hz
Current consumption [I in]: max. 2 A
Total current [I out]: max. 8 A
Current per channel [I out]: 5.5 - 8 A
Op = duty cycle
1)
: 10 % max. 2 min / 18 min
Thermal fuse element:
Isolating transformer:
Actuators
Rated voltage [U in]: 24 V DC
Current consumption [I in] depending on version: 3.8 - 7 A
Battery (shock position)
Battery voltage (battery set - series connection): 24 V DC
Battery capacity: 1.3 Ah
Version / type: battery set / lead gel
1) Duty cycle 10 % max. 2 minutes continuous use followed by 18 minutes not in use.
Failure to do so may result in a malfunction.
