4.12 Braking
Depending on the version, 3 different braking systems can be installed.
The operation of the braking systems is different.
4.12.1 Castors with central locking
Braking
To brake the couch, step on the red side of one of the two pedals (1).
When braked, both pedals are horizontal.
All castors (2) are locked simultaneously.
Make sure that the couch cannot move on its own.
1. Pedal
2. Castor

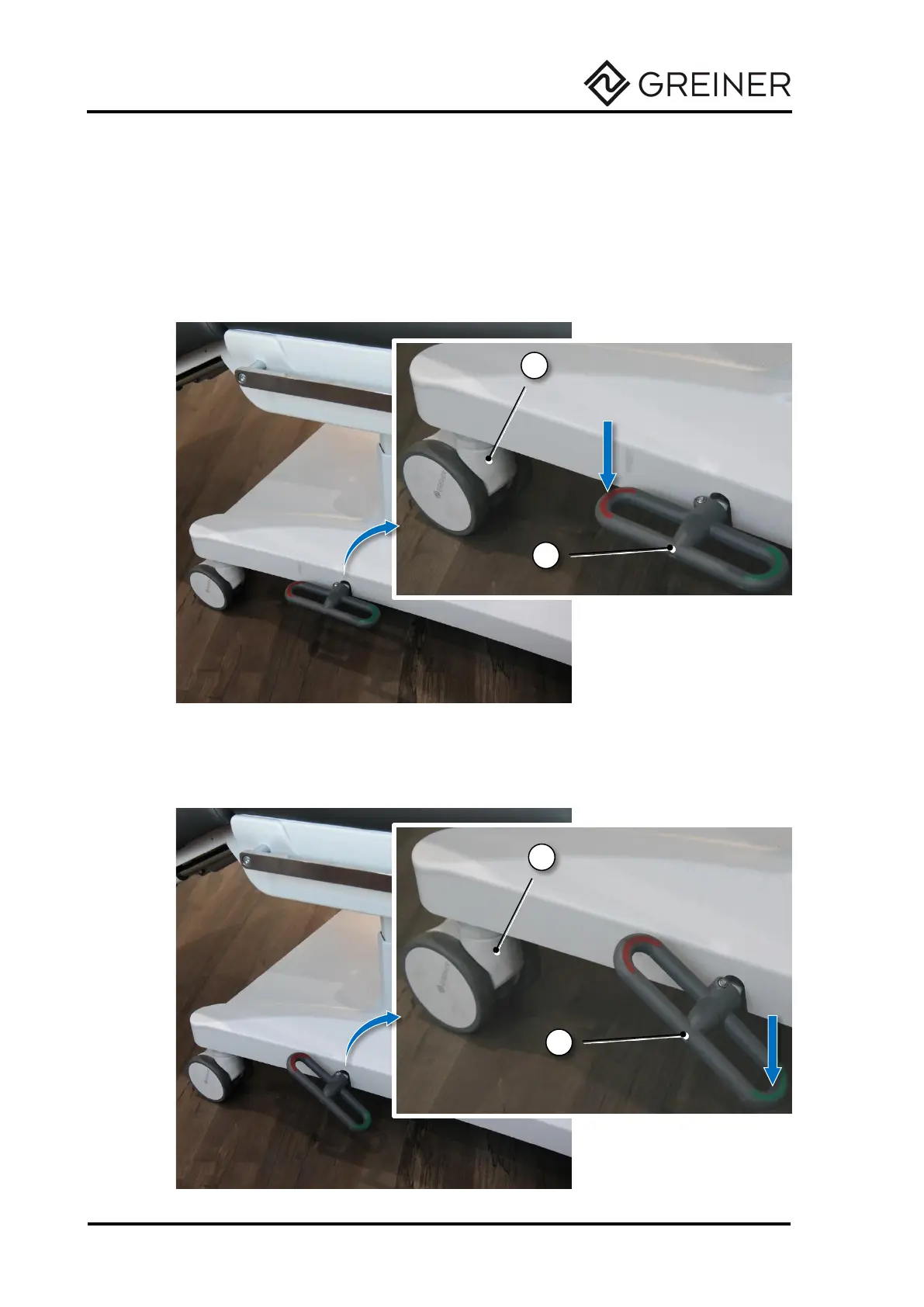

Fig. 51 Locking the castors with central locking
Driving
To release the brakes, step on the green side of one of the two pedals (1).
In the driving position, the green side of both pedals points downwards.
All castors (2) are released simultaneously.
1. Pedal
2. Castor
Fig. 52 Releasing the castors with central locking
