Fast Deposit Module CA10 User Manual
Confidential material of GRG, No disclosure to unauthorized Party 15 / 35
4.2 Power-off download (must apply this method when CA10 is unavailable for the lost of the
main control firmware)

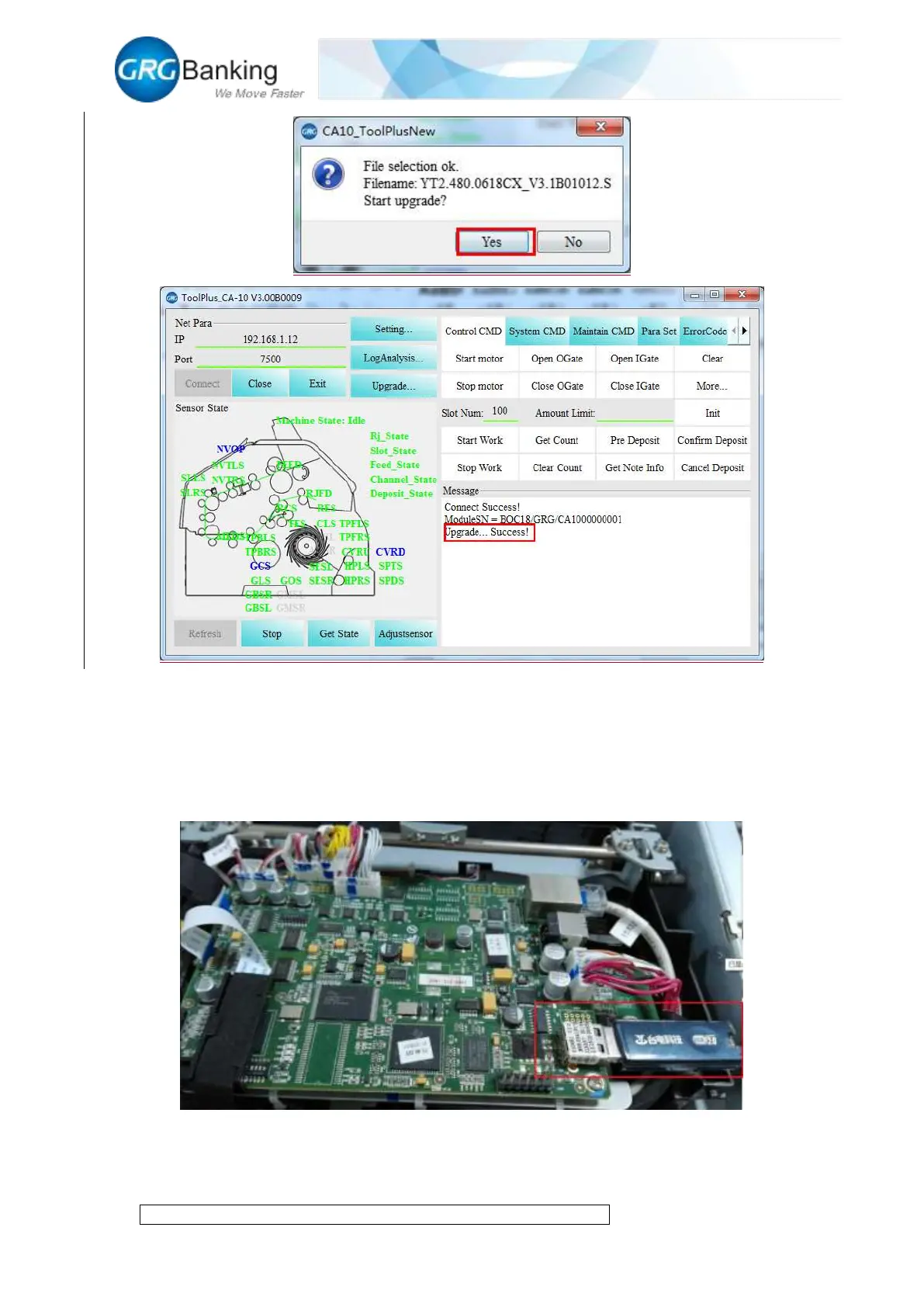

Power off CA10 device, copy the main control upgrade file (YT2.480.0618CX_....S) to the root
directory of the USB flash disk, and insert the disk into the U slot on NV board, as shown in the
figure below:
Turn pin 1 of the dial switch on the main control board to OFF position, see the following figure:
