Chapter 2 Overall Dimensions and Wiring
1. Overall dimensions

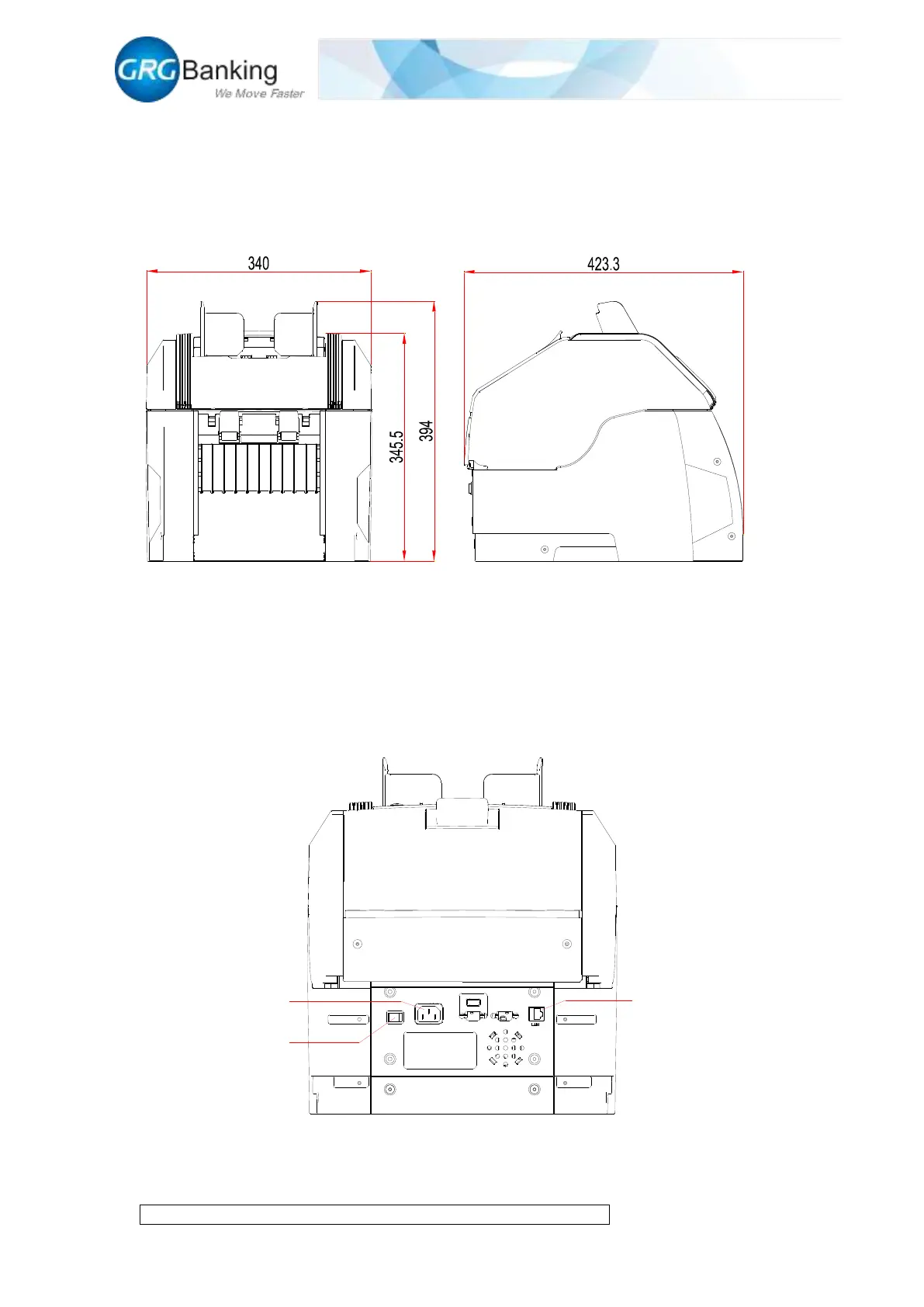

The overall dimensions are shown in Figure 2.1:
Figure 2-1
2. Wiring
As shown in Figure 2-2, the external interfaces of CA-10 module are divided into power interface
and communication interface, in which the power supply is 100-240VAC and the communication
is realized by RJ45 cable which is used to control data interaction and transmission.
Figure 2-2
