7

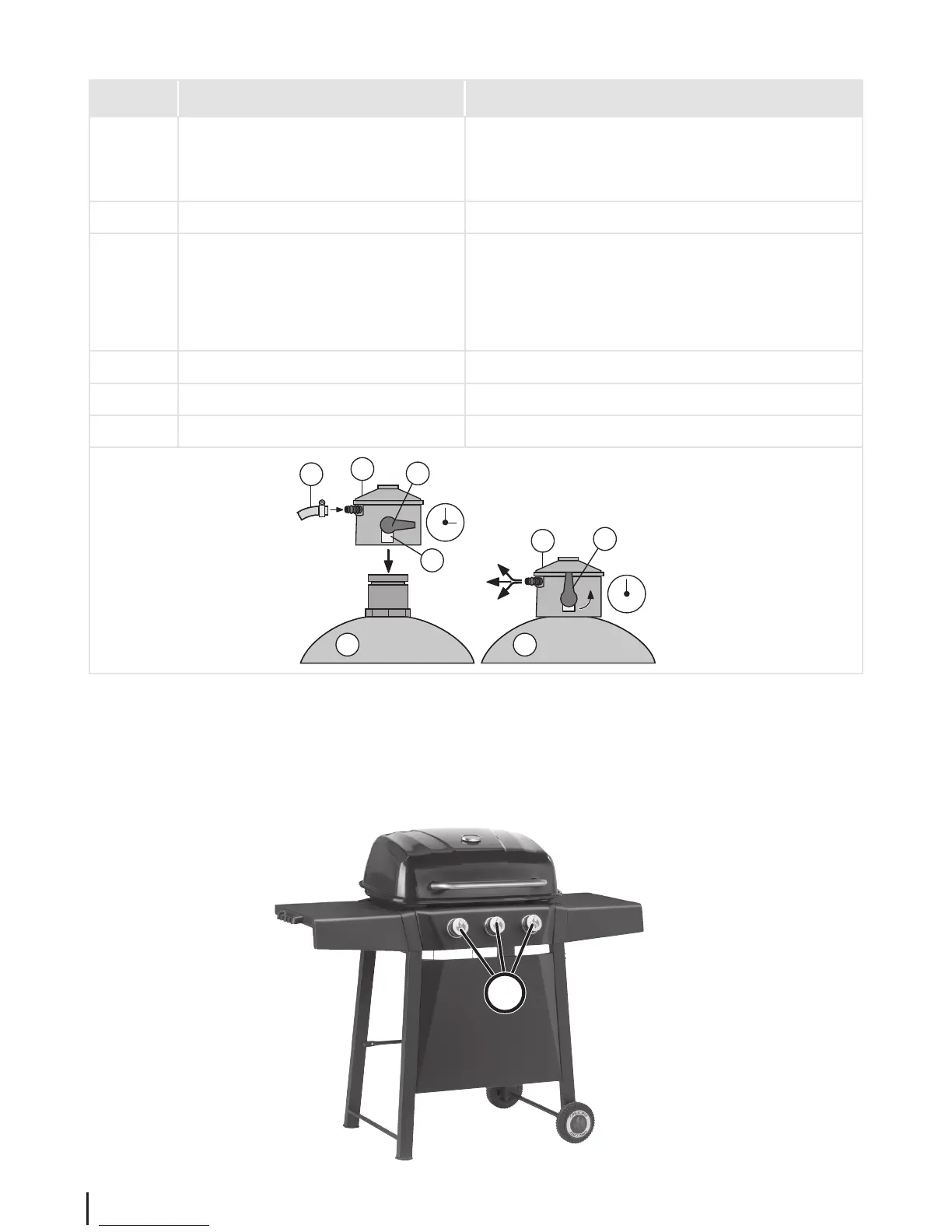

Controls
Pos. Designation Function
7 Flame regulator Fill burner with gas to ignite (keep depressed and turn to
"large ame" setting).
G1 Pressure reducer Reduce gas pressure.
G2 Operating lever Cut-o safety device with 2 settings:
3 o'clock setting: Gas is o - connect / disconnect the pressure
reducer
6 o'clock setting: Gas is on.
G3 Release button Disconnects the pressure reducer from the cylinder valve
G4 Gas bottle with bottle valve Fuel container
G5 Gas hose with hose clip Directs gas to burner.
G5
12
G1
G3
3
G2
G1
G2
G4 G4
Function
When the bottle valve (G2 at a 6 o'clock position) and the ame regulator (7) are open the gas ows through the gas hose
(G5) and the adjusting element into the burner .
The heat output can be adjusted for the burners by using the ame regulator (7).
