GRILLCHEF

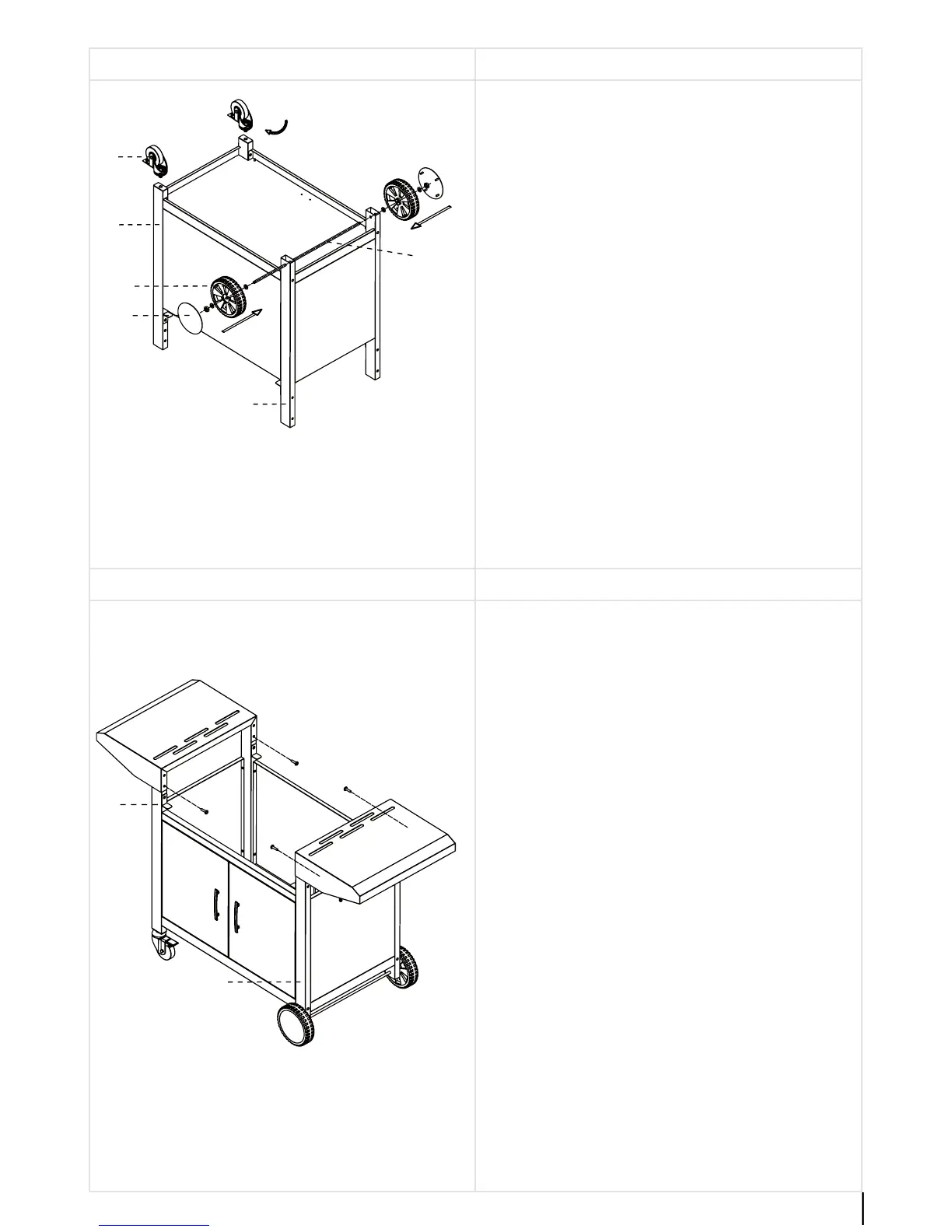

Assembly step 6
• Turn the frame around so that the doors (14) face
towards the rear. Assemble the two rollers (17) to
the left wheel legs (10). Insert the wheel axle (19)
through the upper hole in the right wheel legs (10).
Attach a wheel (20) to both ends of the wheel axle
(19) using a Ø8 washer and M8 nut. Then press the
cover caps (21) onto the wheels (20).
• Then check to make sure that the wheels (20) and rol-
lers (21) are functioning properly.
Assembly step 7
• Position the side racks (7) on the left and right wheel
legs (10) and secure these in place using M6x10 bolts.
17
10
10
20
21
19
10
10
7
7
