Grill Chef 12739A - Controls

6
GRILLCHEF

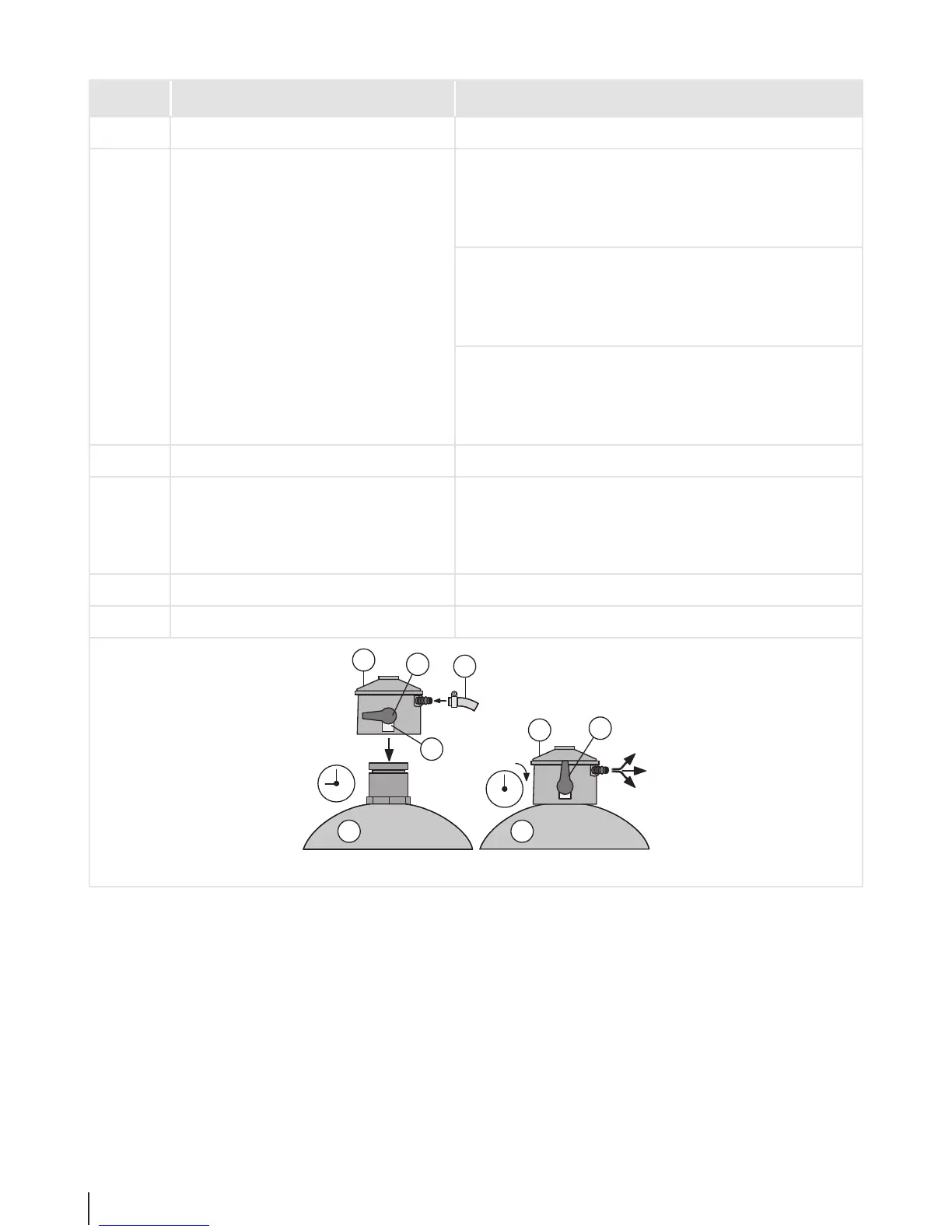

Controls
Pos. Designation Function
A Piezo igniter Ignite gas on burner (press).
B Flame regulator left Fill burner with gas to ignite (keep depressed and turn to "lar-
ge ame" setting).
After ignition adjust the heat input for the left burner (turn).
middle (2 - 5) Fill burner with gas to ignite (keep depressed and turn to "lar-
ge ame" setting).
After igniting set the heat output for the centre burner (turn).
right Ignite the right burner (keep depressed briey and turn to "lar-
ge ame" setting).
After ignition adjust the heat supply for the right burner (turn).
G1 Pressure reducer Reduce gas pressure.
G2 control button with safety catch Cut-o safety device with 2 settings:
9 o'clock setting: gas o / shut o gas cylinder
12 o'clock setting: Gas is on.
G3 gas cylinder with bottle valve Fuel container
G4 Gas hose with hose clip Directs gas to burner.
G5
12
G1
G3
9
G2
G1
G2
G4 G4
