Grill Chef 12739A - Assembly step 10; Assembly step 11

17
GRILLCHEF

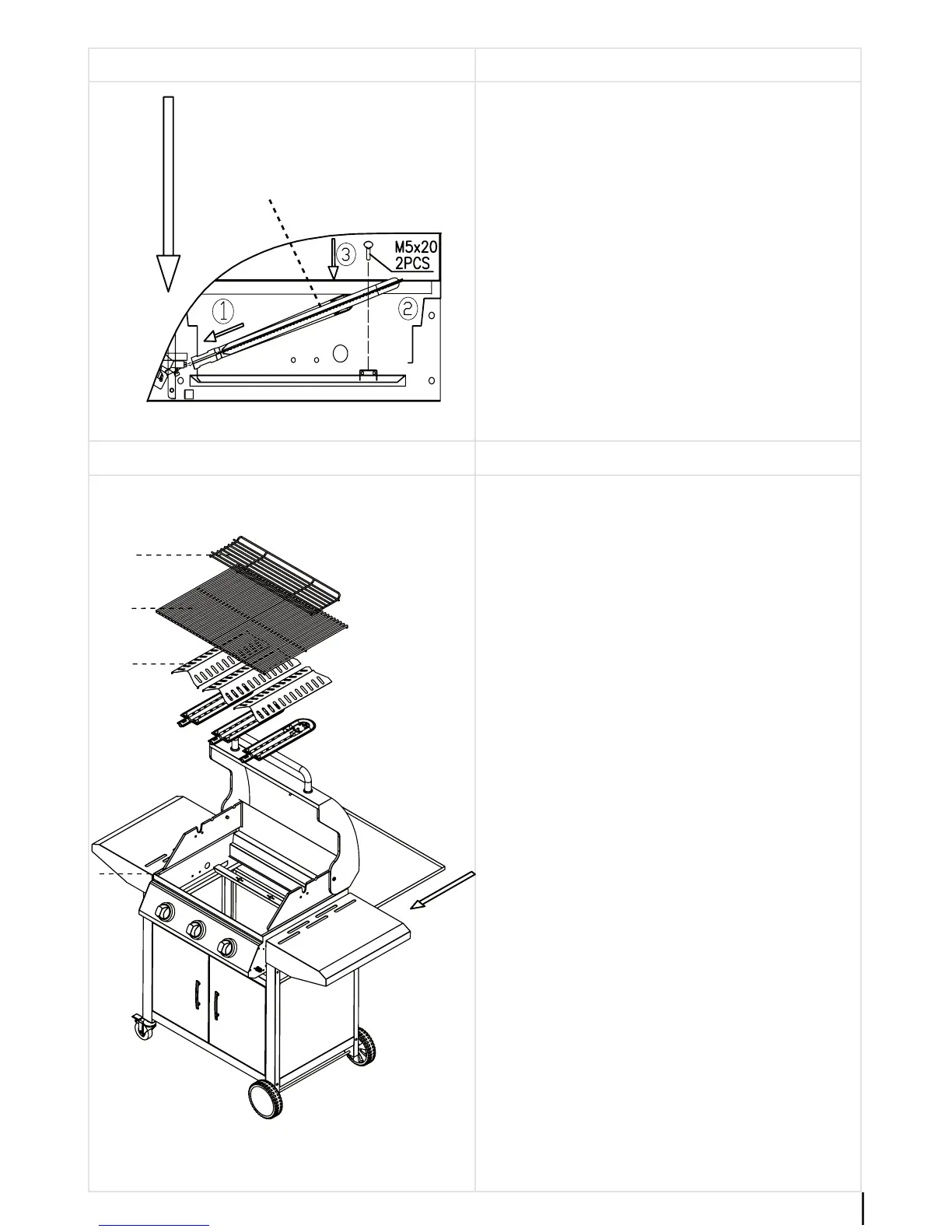

Assembly step 10
• Insert the apertures for the three burners (5) into the
respective ame regulators and screw the burners (5)
to the base of the grill unit (6) using M5x20 bolts.
• Make sure that you adhere to the
points in the illustration.
Assembly step 11
• Place the three ame covers (4) into
the recesses so that the middle triangu-
lar edges are pointing upwards.
• Place the grill (3) on top.
• Insert the warming rack (2) into
the guides on the cover.
• Insert the fat collection tray (8) into
the grill unit (6) from the rear.
5
2
6
3
4
8
