Baserunner Controller User Manual
Rev 1.0

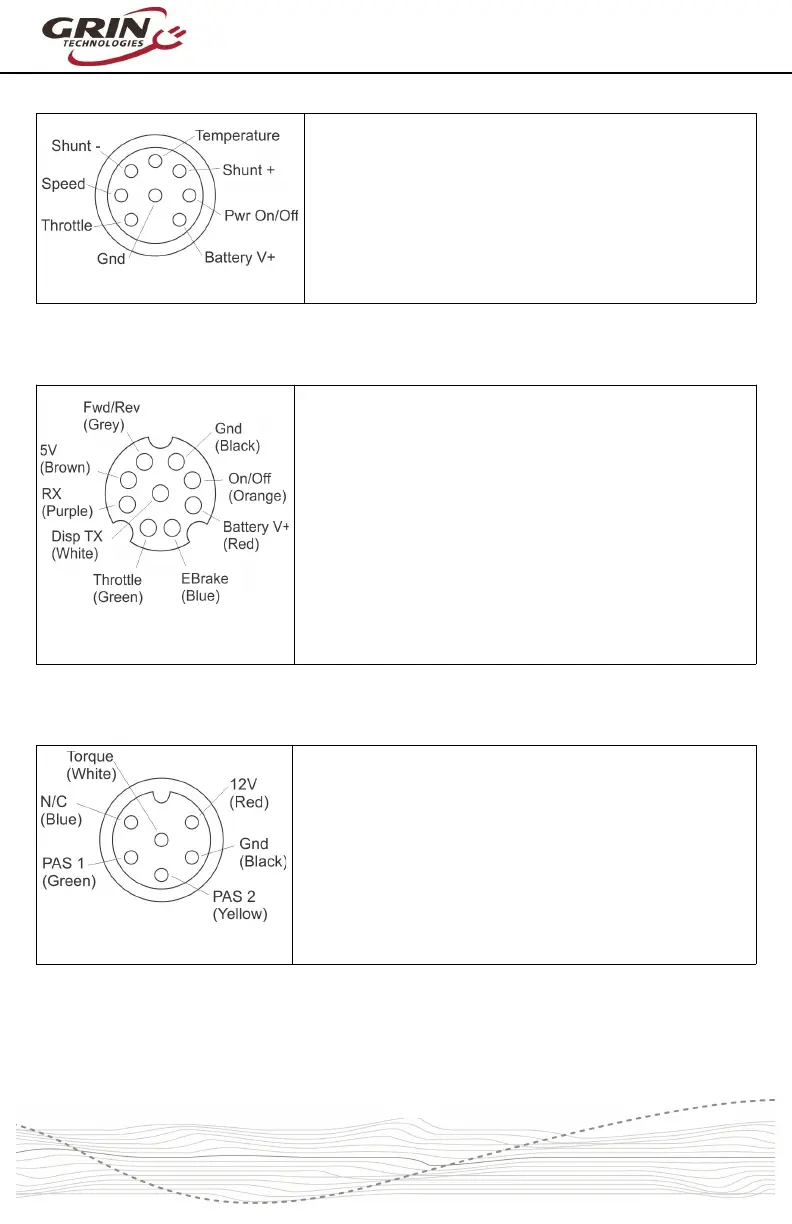

2.3 Cycle Analyst WP8 Plug
WP8 Pinout
The connector for the Cycle Analyst cable uses
the waterproof 8-pin Z812 Higo standard.
This connector taps into the controller's shunt
resistor for analog current and power sensing,
with signals for speed and temperature from the
motor and a hookup for throttle control.
2.4 Mains Signals Plug
Mains Pinout
New to the V4 devices is a Cusmade Signal D
1109 Connector that supports conventional ebike
wiring strategies for 3
rd
party display consoles.
This connector shares many signals with the CA-
WP plug, but rather than using the shunt resistor
for current sensing, it has TX and RX pins that
communicate digitally to the display.
Generally this connector will pair to a harness that
splits out separate lower pin count display, throttle,
and ebrake plugs at the handlebar.
2.5 PAS / Torque Plug
PAS Pinout
The V4 Baserunners include a 6 pin HiGo MiniB
Z609 plug for direct connection of a PAS sensor or
Torque Sensor, even without the use of a Cycle
Analyst device.
Note that the Torque signal links to the controller's
throttle input, and the PAS 2 signal can
alternatively be configured as a FWD/REV input
instead.
-5-
